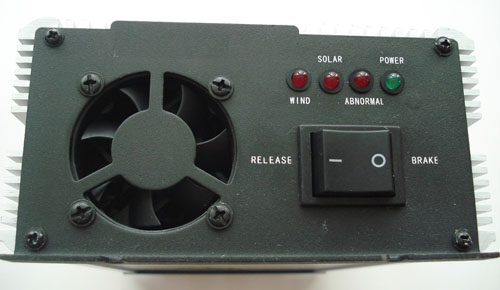

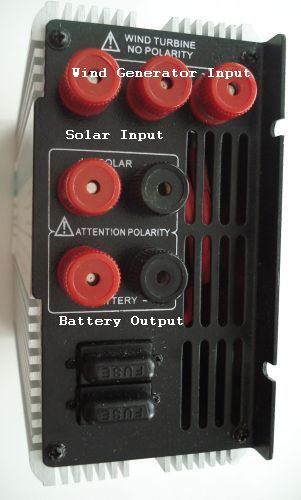

Windmax 24 Volt Hybrid Charge Controller for Simultaneous Wind and Solar Input
- Great for hybrid wind/solar system, hybrid controller can support simultaneous wind generator load and solar load combined up to 800w.
- Uses advanced technology and automated production to provide exciting new features at a competitive cost.
>Click HERE to View 500W and 775W Hybrid Wind Turbines For Sale
 Click HERE to View/Download Hybrid Charge Controller USER MANUAL
16-bit microprocessor powered Solar/Wind Hybrid Charge Controller delivers electricity generated by both a wind turbine and a solar module into batteries. The controller has over-charge protection, low-voltage protection, pole-confusion protection and automatic dump-load function. The controller adopts the constant voltage charging mode-PWM, and it is reliable and safe with a highly efficient, long service life.
Main Features:
1. PWM CV charging function protects the batteries from being over charged and energy can be fully utilized.
2.16-bit Microprocessor chip ensures accurate control.
3. Return difference control function in the charging voltage detector of various circuits to prevent
vibration status of switches.
4.Perfect protections: over charge protection, over discharge protection, reverse connection protection, solar cell panel reverse connection protection.
5.Automatic brake and manual brake ensures safe and reliable operations of wind turbine and solar panels.
Technical Specifications
| Controller Model |
WindMax-12V-800W |
WindMax-24V-1000W |
| Rated DC Voltage (V) |
12Vdc |
24 Vdc |
| Combined Wind/Solar Input Power (W) |
800w |
1000w |
| Overcharge voltage of wind generator |
16 Vdc |
16 Vdc |
| Resumed charging voltage after overcharge for wind generator |
14.5 Vdc |
14.5 Vdc |
| Overcharge voltage of solar Input |
14.8 Vdc |
14.8 Vdc |
| Resumed charging voltage after overcharge for solar input |
12.9 Vdc |
12.9 Vdc |
| Automatic recovery time (min) |
35 |
35 |
| Operation Ambient temperature |
-20°C~50°C |
-20°C~50°C |
| Protection Rating |
IP20 |
IP20 |
| Elevation (m) |
<=5,500 |
<=5,500 |
| Size (L X W X H) Inch |
8.5" x 5.5" x 2.5" |
8.5" x 5.5" x 2.5" |
|
