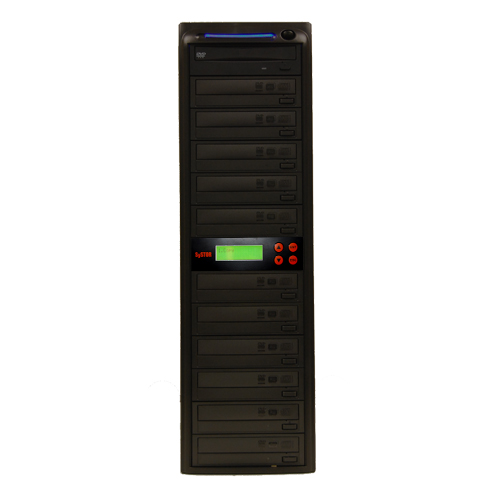

11-Target 22x SATA CD/DVD Lightscribe Duplicator with USB Connection
|
 |
| |
|
Profile |
| Reader / Source |
High Speed DVD-ROM |
| Writer / Target |
22X LightScribe SATA Dual Layer DVD±RW |
| Hard Drive |
N/A |
| External Connection |
USB 2.0 | |
| |
| |
|
Overview:
Are you still labeling your CDs and DVDs with sticky labels or permanent markers?
Now with the new 22x CD/DVD LightScribe Duplicator, you can laser-etch custom designs with your
photos, text and artwork- directly onto your discs
The LightScribe SATA duplicator is a reliable, professionally built system with LightScribe labeling capabilities and with SATA connection that provides any user with a cost-effective, all-in-one solution for complete start-to-finish disc production. The LightScribe burners installed on this duplication device are special optical disc drives that offer a new way to label discs without the use of adhesive sticky labels, felt-tip pens, or permanent markers. Instead, a laser-etch label is burned directly onto specific LightScribe CD and DVD media. This innovative technology eliminates the cost for ink or paper label consumables and also gets rid of the worry of pen and marker ink causing seepage damage to a disc. Software is included so that disc artwork can be designed ahead of time with desired text and graphics. Fitted with a user-friendly LCD interface, the copy tower burns CD and DVD discs at an optimal speed to produce a maximum of number of copies every burn cycle. Burning speeds are adjustable and other standard menu features are available for advanced users. CD and DVD formats are automatically detected to ensure stable and secure buffer under run protected burning.
How Lightscribe DVD/CD Duplicator Works
1. Burn the image label you created from the saved file on your computer onto a CD.
(Label image creator software is included)
2. Place that CD into the reader drive of the Lightscribe duplicator.
3. Load LightScribe capable discs with the label side down in all of the writer drives.
4. Using the menu on the duplicator's LCD, choose and execute the "Print" function.
5. Burn your LightScribe label directly onto the discs in all the writer drives at the same time
6. Remember, the same drive that burns your label burns your data, too.
|
|
Full Mode: Fill the entire surface of your disc with a unique image. These designs can also accommodate your own text or photos. | |
|
|
Content Mode: Designs appear as a thick ring on the disc surface. Your own text or photos also can be added. |
|
|
|
Title Mode: Designs appear as a thinner ring on the disc surface. These designs also have space for your own text. |
|
|
Specification:
|
Reader |
: |
High Speed DVD-ROM |
|
Recorder |
: |
22x LightScribe SATA Dual Layer DVD±RW |
|
Interface |
: |
Serial-ATA (SATA) |
|
Max Writing Speed (For Supported Reading Formats) |
: |
22x DVD±RW, 16x DVD+R DL, 12x DVD-R DL, 8x DVD+RW, 6x DVD-RW, 48x CD-R, 32x CD-RW |
|
Language Support |
: |
English and Spanish |
|
Partition Naming |
: |
Up to 8 characters per partition |
|
Supported Reading Formats |
: |
DVD-ROM, DVD-Video, DVD-Audio, DVD+R DL, DVD-R DL, DVD-R, DVD-RW, DVD+R, DVD+RW, Mode 1: CD-ROM, CD-I, Multi-session CD, CD-Plus, Business Card CD-R, 3" Mini CD-R |
|
Supported Writing Formats |
: |
DVD+R DL, DVD-R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, 61mm Business Card CD-R, 3" Mini CD-R, Orange Book standard 74 min/80 min CD-R/RW |
|
Load & Copy Supported |
: |
Yes |
|
Burn Proof Support |
: |
Yes |
|
Power |
: |
AC 110/ 230V |
Features:
 Complete Standalone Operation:
No PC required to operate the duplicator.
Able to label discs with full graphics and text using LightScribe Technology:
Using LightScribe capable discs, the duplicator can burn the labels onto all the discs in the drives
at the same time
Improved Load and Copy Supported:
Improved "Load and Copy" transfers the data from the master disc to the internal HDD while simultaneously
coping that data disc to disc on the first run. All subsequent runs are copied through the HDD.
Supports all common CD Formats including CD-TEXT, ISRC, Over-Burned CD (90 min/99 min)
Drive firmware upgradeability:
Capable of upgrading the drive's firmware for selected brands through the duplicator.
Multi-Language capability:
The text on the LCD screen can be displayed in English, Spanish
AutoCopy feature:
Fast duplication without pressing any buttons.
Account management (password protection):
This function will authorize only specific user(s) to operate the duplicator with their preferred settings.
Able to assign numerous passwords for multiple users.
Auto-Counter Technology:
Displays the total number of discs successfully copied compared to desired output for each project.
User friendly interface with 'easy-to-read' LCD display:
Offers easy to recognize and use terms and operations on the LCD display for simple usage.
Fast Key Support:
4 fast keys for faster operations.
Power on Self diagnostics:
Keeps the duplicator functioning optimally.
Disc Info feature:
Provides the format of the disc & the disc manufacturer's information.
Selectable CD & DVD burning speeds:
Ability to increase or decrease duplication speed for supported formats.
Creates mix compilation audio CD:
Able to compile multiple tracks onto a single disc from multiple sources.
Supports all currently available DVD media including Double/Dual layer DVD9:
Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
Auto DVD Format Conversion:
Can convert media between DVD+R/RW and DVD-R/RW automatically.
Supports both Disk-at-Once and Track-at-Once modes
Automatic format recognition:
Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
Upgradeable for future drive technology:
Able to upgrade duplicator for installation of future drives.
Future functions upgradeable through firmware:
Duplicator able to upgrade future software updates via Firmware.
Continuous copying without waiting for cool down:
No need to stop the duplicator for fear of overheating.
Optional External USB 2.0/Firewire IEEE 1394 connection:
Able to connect specific drives to a computer to generate a master disc for duplication.
Throughput Capacity Per Hour:
|
Target |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
300 MB CD
*at 52x duplication speed |
30 |
60 |
90 |
120 |
150 |
180 |
210 |
240 |
270 |
300 |
330 |
360 |
390 |
420 |
450 |
|
2.5 GB DVD
*at 20x duplication speed |
15 |
30 |
45 |
60 |
75 |
90 |
105 |
120 |
135 |
150 |
165 |
180 |
195 |
210 |
225 |
- Actual maximum speed may vary.
- Blank Media writing speed is determined by the drives,
regardless of what the media manufacturer certifies
Labeling Speed :
Label Setting : Draft
|
# of Recorder |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Title Only |
30 |
60 |
90 |
120 |
150 |
180 |
210 |
240 |
270 |
300 |
330 |
360 |
390 |
420 |
450 |
|
Graphics |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
Label Setting : Normal
|
# of Recorder |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Title Only |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
280 |
300 |
|
Graphics |
3 |
6 |
9 |
12 |
15 |
18 |
21 |
24 |
27 |
30 |
33 |
36 |
39 |
42 |
45 |
Label Setting : Best
|
# of Recorder |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Title Only |
15 |
30 |
45 |
60 |
75 |
90 |
105 |
120 |
135 |
150 |
165 |
180 |
195 |
210 |
225 |
|
Graphics |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
30 |
|
| Lightscribe Duplicators
Quality: We only carry the most reliable, recognized brands and models for all our components (i.e., Plextor, Pioneer, Sony, NEC).
Reliability: With over 25,000 units sold this past year, we continue to have new and returning customers on a daily basis. All our duplicators are carefully manufactured and fully tested before they are packaged for shipment.
Warranty: All duplicators come with a standard 1 year warranty on parts and labor. (Extended warranties are also available). Our technical support team offers great customer service for all your questions and concerns regarding our products. For any type of problem or concern with your duplicator, please email us at ebay@lamicci.com |
| Description
Duplicators are a fairly recent machines developed to give users a cost-effective solution to create copies of non-copy protected CDs and DVDs. These copy towers are standalone systems, which do not require a computer or any software to operate. The duplicator features a user friendly control that allows easy access to even advanced options with a few pushes of a button. A manual is included in the package that explains the different functions and how to operate them.
A duplicator consists of 3 major components:
- Source Drive (ROM or HDD) - where your master is read from.
- Target Drive(s) - where the blank media is recorded to.
- Copy Controller Card - brain that controls data flow between source and target drives.
Duplicators DO NOT COPY COPYRIGHT PROTECTED CDs or DVDs.
We are not responsible for international destination local tax and duties.
All international buyers are responsible for their custom clearance charges and duties. |
| Options
Hard Drive Option (Unavailable with 1-1 duplicators due to case space limitation): A hard drive is optional feature and it eases the deterioration of the reader drive and increases the stability of the duplication process. The duplicator allows you to take your disk, load it directly into the hard drive, then the hard drive partitions itself accordingly to the size of the disk and you can delete or store the information. Once the image or information from your master disc is stored into the hard drive, the master disc is no longer required.
External Connections (USB 2.0, USB 2.0/FIREWIRE COMBO): All our duplicators are standalone towers that do not require any connection to a computer. However, with the external connection option, it will activate the very bottom burner of your duplicator to function as an external burner drive. This option is mainly for users who do not have a DVD or CD burner to help them creating a master disc from their computers. The external connection is offered either as a single USB 2.0 connection or USB 2.0/FireWire combo connection. | | |
|
|
  |
  |
  |
  |
