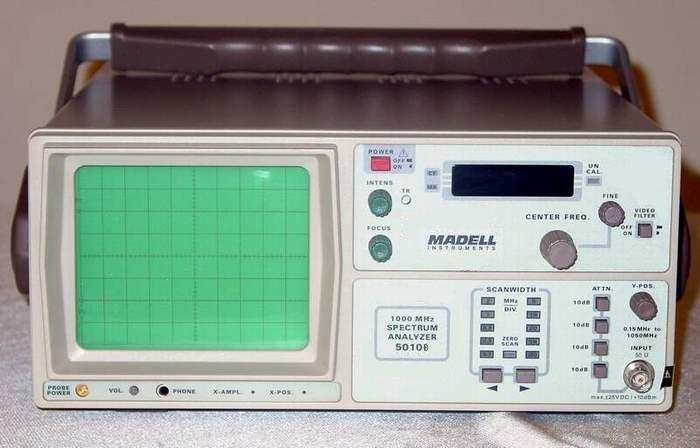

New MADELL 5010B 1Ghz spectrum analyzer, in factory sealed box.

Specifications:

• Frequency range: 0.15 to 1050MHz
• Center frequency display accuracy: 100KHz
• Resolution of frequency display: 100KHz(4.5 digit LED)
• Frequency scans width: 100KHz/div to 100MHz/div, in 1-2-5 steps.
• Frequency scan width accuracy: 10% frequency stability; better than 150KHz/hour
• Video-filter on: 4KHz
• IF bandwidth(-3dB): 400 KHz and 20KHz selectable
• No on screen mark
• Sweep rate: 43Hz
• Amplitude range: -100dB to +13 dBm
• Screen display range: 80 dB (10dB/div)
• Reference level: -27dBm to +13dBm(in 10dB steps)
• Reference level accuracy: 2dB
• Average noise level: -99dBm
• Distortion: <-75dBc: 2nd and 3rd harmonic
• 3rd orer intermod: -70dBc(two signals>3MHz apart)
• Sensitivity: <5dB above average noise level
• Log scale figelity: 2dB(without attn.) Ref.: 250MHz
• Input attenuator: 0 to 40dB(4x10dB steps)
• Input attenuator accuracy: 1dB/10 step
• Max. input level: +10dBm, 25Vdc(0dB attenuation) +20dBm, (40dB attenuation)
• No on-screen display
• Display: 6" CRT, 8x10 division gratitude
• Trace rotation: adjustment from front panel
• Power: 110V/220V 10% switchable, 50/60Hz
• Power dissipation: 20W
• Weight: 7Kg approx.

Test it in our Los Angeles showroom. Call (877)670-9023 to make arrangements.

This offer is about half the price of similar products. You can find that by searching on Google with key words "5011 spectrum analyzer".

Shipping/packing/insurance $35 to most states, AK, HI, VI and international extra. We can also use your shipping account. Please do not pay shipping if your account is going to be used.

Paypal payment accepted only if the shipping address is confirmed. Please email us if you need to mail the payment.

Please print this auction page and also our email response to your payment as receipt for your warranty services.
For your own convenience, please do not bid or BIN if you are not ready to make the payment. Positive feedback will be left immediately after payment is received with Paypal or money order. Negative feedback will be left for unpaid winning bids after a month.

Accessories included with the 5011 and 5010 packages.
