Versatile Switching Action - Miniature, 4PDT*, Momentary, Toggle Switches

0207

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

Win (2) - 4PDT Momentary Toggle Switches
LOOK! Versatile Switching Action, Endless Possibilities

Independent control of 2 separate DPDT's with one lever!
You won't find this switch anywhere else but here! See description below.

Click here for the Mega-View

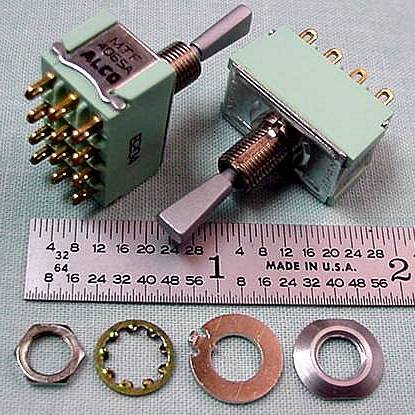

Auction is for (2) switches. (All hardware included.)

FEATURES
  • 4PDT - Momentary, unique switching action

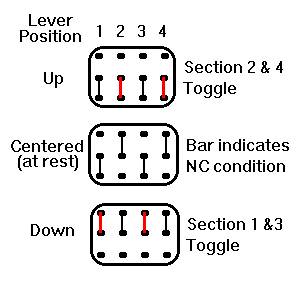

  • Sections operate in pairs - see matrix above
    It's like two independent DPDT toggles
  • Commercial Quality by ALCO
  • Rated 6A @ 125VAC or 3A @ 250VAC
  • Mounts in a ¼" dia. hole
  • Hardware included
  • Sealed, Gold plated terminals lugs
        (easy soldering, prevents corrosion)
  • Gold flash over Silver contacts
        (low contact resistance)

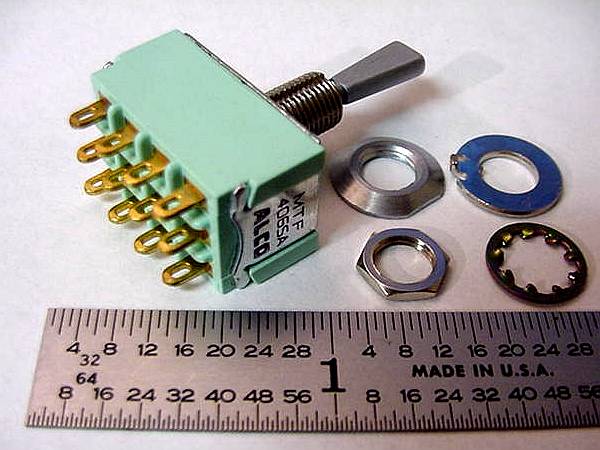

  • ALCO P/N MTF406SA

Approximate dimensions: Bat Handle length is 1/2"
Body size: L 29/32", W 1/2", D 19/32" (including terminals)

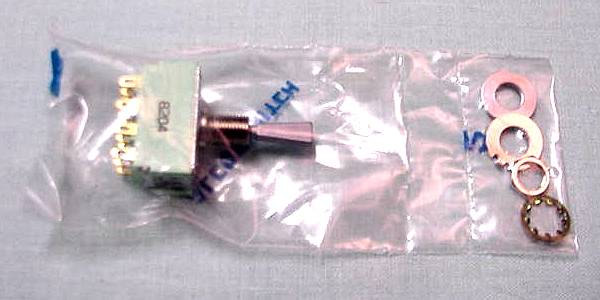

Packaged individually in original OEM bags

Short description: 4 separate, three-terminal, SPDT, momentary switches operating in pairs. Pressing the lever in one direction toggles only two sections. Pressing the lever in the other direction toggles the other two sections.

Long Description: This switch has a really clever momentary switching matrix which makes it extremely versatile. There are four SPDT switches operating in pairs. When the lever is in the center rest position, each individual section has an open terminal and a closed terminal, just like a typical SPDT. But the neat trick is when you pull the lever up from center, only two sections toggle; the other two sections remain unchanged. When you push the lever down from the center rest position, the other two sections toggle leaving the first two unchanged.

One customer wrote me and said these were "useless". He had to be kidding! I say he had no imagination. You can use just one half as a SPST, SPDT, DPST, DPDT - and that doesn't even begin to describe the novel switching action and actual applications, limited only by your imagination!

Just a few possible applications:
  • Use on reversible motors, latching relays..etc.
  • Control 2 independent electrical systems.
  • Polarity reversal applications.
  • Small enough to use even if you just need one section.
  • Sections 1 & 2 and 3 & 4 can be parallel wired for higher current capacity.
  • Unbeatable versatility for multiple independent bi-directional control.
You may think you don't need this switch, but someday you will, and you'll be glad you bought them here, when you did. These were made for a special application (SA) and are not in the catalog or on the ALCO web site. [The closest match I found is the MTF406N which lists at $18.08 each and operates all four sections simultaneously, the usual way. So you get these at an amazingly low price too!] LIMITED SUPPLY. Bid now before they are all gone.

4P_2
