TRIAC - POWER / SPEED CONTROL ASSEMBLIES for 120 VAC

112

Combine AUCTIONS to Reduce Shipping / Handling Costs

Fast e-Mail

Fast Shipping

Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

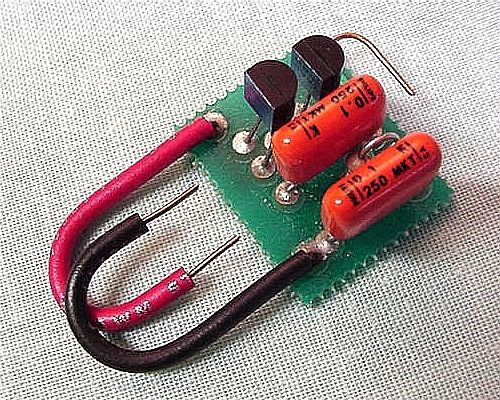

Qty (2) - VARIABLE Electronic Power Control
Works with loads up to 75 Watts (even up to 100W*)

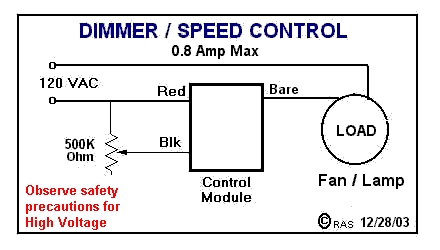

Auction is for (2) wired assemblies with all the electronics except for the common 500K pot that you supply.

Control a 75+ Watt @125 VAC Load
Rated conservatively at 75 Watts. *But the triac is good up to 0.8 Amps RMS which works out to be 100 Watts at 125 VAC (even more at higher voltages, up to 400 VAC), a much more practical value. But you'll need to watch the case temperature. A heatsink for the triac will help. I'll leave it up to you to study the datasheet to see if it will fit your needs. These are cheap enough for experimentation.
Power Controller Applications:

Soldering Irons
Electric Motors
Incandescent Lights
Fans
Heaters
Linear Power Supplies

TRIAC rated 0.8 Amps, 400 volts. [MAC97A8 600 Volt triacs available for upgrade.]
Want to salvage the Triac, Thyristor and other parts?
MAC97A6 (0.8 Amps @ 400 Volts) Triac - MAC97 Datasheet (113K PDF)
MBS4991 Thyristor - MBS4991 Datasheet (99K PDF)
Application Note - AN1048 (455K PDF)
Hint: Best performance is achieved by wiring a switched pot to come on at maximum power to avoid the customary hysteresis at cut-off.

Caution: The board and pot (pot not included) will be
at AC line potential so be sure to insulate for 120VAC.

DIM-2
Check out our other AUCTIONS! Be sure to add us to your Favorites List!

etronic e-tronic hamtronic qba tech
Shipping / Handling discount for most auctions if paid with ONE PAYMENT.

Condition of Goods
Unless otherwise noted above:
NOS or better, clean, unused
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Small parts may be bulk shipped
Manufacturers may vary from picture
