-EZ to Install

-EZ to Operate

-EZ to Maintain

-EZ to Quick Ship

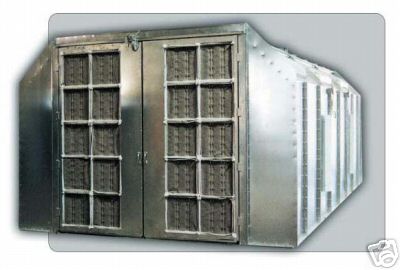

The Crossdraft Booth intakes fresh air through filters in the product doors. The clean filter air is drawn through the booth and exhausted through a filter system at the opposite end. This type of spray booth makes efficient use of shop space and is available in solid back, drive through and reverse flow designs. Reverse flow booths intake air through filters in the back wall. The solid faced product access doors are at the exhaust end of the booth. This provides cleaner intake filtering and better control of shop dust that might be tracked in at the vehicle entrance.

Lighting Features

Bright full booth illumination is provided by ten four-tube, 48”, 32-watt, fluorescent light fixtures in the angled ceiling panels and side walls. Each is sealed behind clear, tempered safety glass. All fixtures are UL listed and approved for their intended use and placement. The light tubes are not furnished with the fixtures.

Construction Features and Quality Standards

All booth and plenum sections are made with 18-gauge galvanized steel. All product and personnel access doors are pre-hung in heavy gauge galvanized steel frames for easy installation. Brixon latches are provided for each door opening.

Exhaust is provided by a 30” diameter tubeaxial fan with a 3 HP, three-phase motor.

All hardware, filters and sealants needed for the booth installation are included. The control panel and other electrical components may be purchased separately.

ECC-26SB:

Interior Dimensions: 14’W x 9’H x 24’6”L

Exterior Dimensions: 14’6.5”W x 9’2”H x 26’4” L

Access Door: 1

Nominal Door Opening: 9’4”W x 8’10.5”H

Fluorescent Lights: 10

Add Powder Coating For Only $1,779.00

Call for a list of available options 1-800-637-4027

Ships direct from Manufacturer, you will be contacted for the shipping charges
