3 ZONE HYDRONIC CONTROL SYSTEM WITH MANIFOLD

For Sale (1) NEW 3 ZONE HYDRONIC CONTROL SYSTEM WITH MANIFOLD:

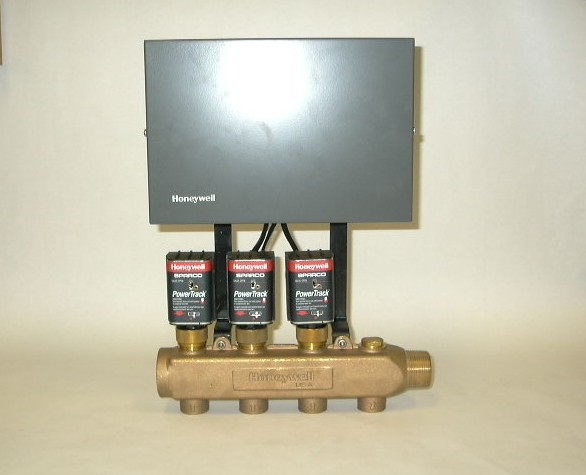

(1) HONEYWELL SPARCOZONE S2Z3T3 - 3 Zone Control System for Hydronic Heating Sytems.  Save time and money on your hydronic heating sytem installation with this preassembled kit.

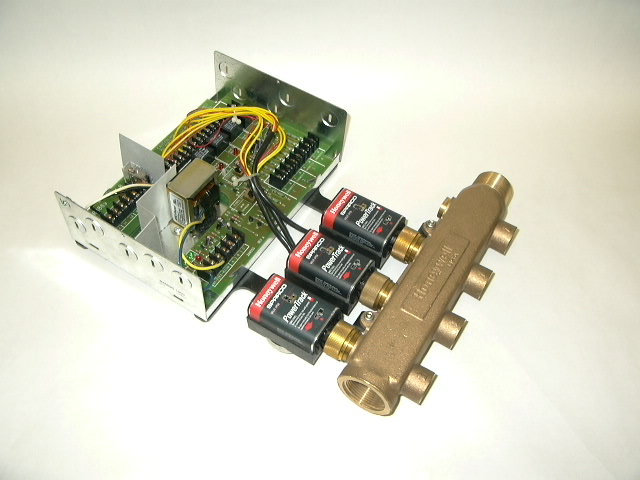

This is a new assembled and pre-wired system in the original box (see warranty below).  Consisting of the following items:

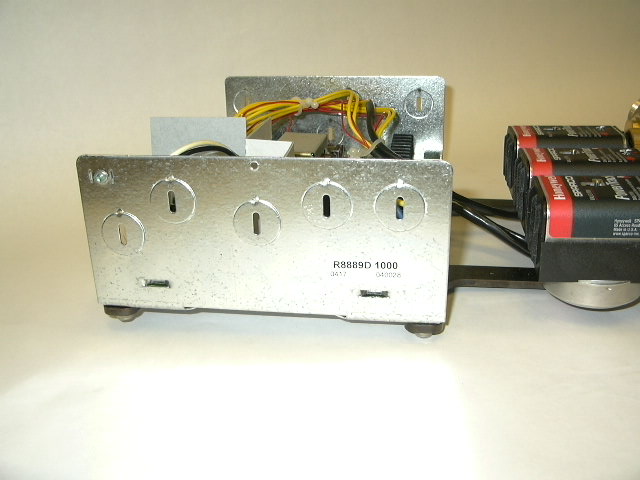

(1)  Honeywell R8889A - (3) Zone Controller with Priority Zone Control

(1)  1 1/4" N.P.T. Return Header with (3) 3/4" N.P.T. branches

(3)  MZV Power Track Zone valves mounted on the return header.

Uses standard 24VAC two wire thremostats.

Follow this link for a sales brochure of this system: (may take a few minutes to load):

SPARCOZONE MULTIPLE ZONE CONTROL BROCHURE ADOBE PDF FILE

Follow this link for a detailed product data on the R8889 controler included in this system: (may take a few minutes to load):

HONEYWELL R8889 PRODUCT DATA ADOBE PDF FILE

System Features:

• Part Number S2Z3T3
• Three zone valves.
• Built-in balancing plugs for flow adjustment for each zone.
• Large flow rate, up to 10 gpm per zone.
• Manual opener for each zone.
• 4 wire PowerTrack™ operators with auxiliary switch, 10-12 sec. to open.
• Priority relay for indirect water heater.
• Low current draw, 0.25 amps, means low operating costs.
• Maximum shut off diff. Pressure 40 ft., 17.5 psi.
• Max. temp/pressure: 220 ºF/125psi.
• Bronze casting.
• Made In USA. Patent Nos. 5,529,282; D369650; 2,052,382

:)

Ship weight is 20 pounds.
