Item:(5) Light Sensitive PHOTO-TRANSISTOR - eXtreme Range

(5) Light Sensitive PHOTO-TRANSISTOR - eXtreme Range

Item condition:--
Ended:Nov 10, 200913:51:33 PST
Quantity:
3 lots available (5 items per lot)
Please enter a quantity of $quantity$ or less
Please enter a quantity of 1
Price:US $8.50
Shipping:$3.20US Postal Service First Class MailSee more services

Country:
ZIP Code:
Quantity:
(available quantity 3)
Service and other details:
Service
Estimated delivery*
Price
US Postal Service First Class Mail
4-7 business days
$3.20
*The estimated delivery time is based on the seller's handling time, the shipping service selected, and the payment method selected. Sellers are not responsible for shipping service transit times. Transit times may vary, particularly during peak periods.

 See discounts

Pay only $10.00 shipping for orders of 8 or more eligible items from pbsn6040.
or
$1.00 shipping for each additional eligible item you buy from pbsn6040.

 |  See all details
Estimated delivery within 4-7 business days
Returns:
7 day money back, buyer pays return shipping | Read details
Coverage:
Pay with and your full purchase price is covered | See terms

A reserve price is the minimum price the seller will accept. This price is hidden from bidders. To win, a bidder must have the highest bid and have met or exceeded the reserve price.


99.9% Positive feedback
Get fast shipping and excellent service from eBay Top-rated sellers.
  • Consistently receives highest buyers' ratings
  • Ships items quickly
  • Has earned a track record of excellent service
Other item info
Item number:370273687766
Item location:South Central, United States
Ships to:United States
Payments:
(5) Light Sensitive Photo-Cells

0612

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

(5) Photo-Cells / Photo-Transistors
eXtremely Wide Dynamic Range

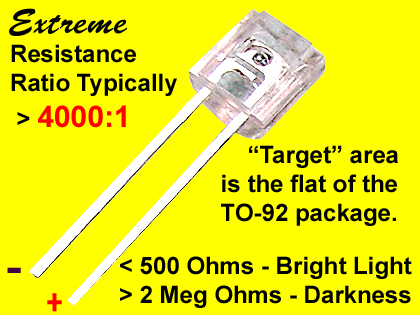

4000:1 Dark:Light Resistance Ratio
fc 170 kHz - suitable for IR modulation detection
Datasheet: BPW39A (391K PDF)
Auction is for lots of(5) pieces.
Use in light activating circuits.
Make an optical Theremin for
weird sci-fi audio effects.
Give your robot the gift of sight.
Make an automatic light dimmer.
Use in magic tricks.
These Photo-Cells are light sensitive NPN photo-transistors. Their 170 kHz cutoff frequency makes them suitable as de-modulators for IR transmitters such as TV remote controls. The detector acceptance angle is ± 65° and the spectral range is from Green to deep Infared at half sensitivity. Actual resistance ratio depends on light levels and wavelength, applied voltage and series resistance. These variables are not critical. A good start would be 12 VDC (32 V max) applied through a 1 Meg Ohm resistor. Experimentation is necessary to achieve the maximum L/D ratio but the suggested values are easy to achieve and will give excellent results.

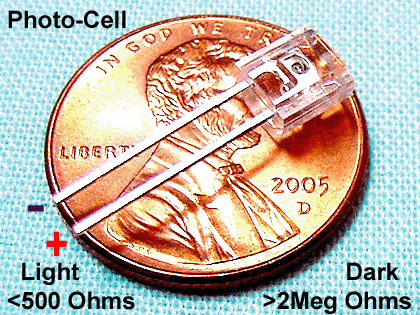

We used a digital ohmmeter with a 2 Meg max range to make our resistance measurements. In complete darkness, the meter went into over-range. With a bright LED, the resistance dropped below 500 Ohms. Facing the flat surface, the left lead is negative. Note: they do respond if wired backwards, but performance suffers tremendously.

If you are a musician and experimenter, build an oscillator/amp using photo-cells in the R-C timing and gain control circuits and make a THEREMIN to create those eerie wavy / warbly sounds heard in old sci-fi movies. One photo-cell to control frequency and another to control volume.

PC-5

Check out our other AUCTIONS! Be sure to add us to your Favorites List!

Click here to see more great auctions for Technicians and Hobbyists.

etronic e-tronic hamtronic qba tech
Shipping / Handling discount for most auctions if paid with ONE PAYMENT.
Condition of Goods
Unless otherwise noted above:
NOS or better, clean, unused
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Small parts may be bulk shipped
Manufacturers may vary from picture
For International bidders only:

We ship to US ZIP Codes ONLY.
We Do NOT ship International.
We Do NOT accept International PayPal.
