Encapsulated Sunlight Visible 5mm R-G-B LED Assembly

1011

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

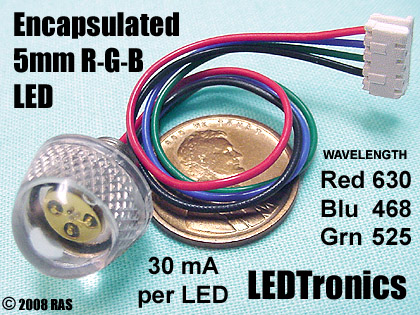

(6) Sunlight Visible Red-Green-Blue
wired LED Indicator Assemblies

256 Color Capable LED
Seperate R,G,B Chips in 5mm Case

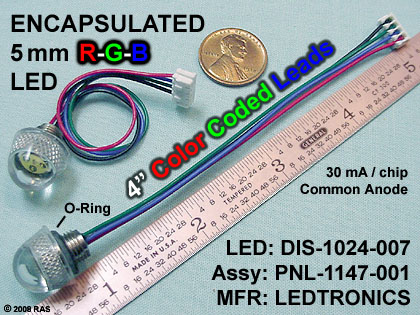

Ruggedized in Clear Epoxy with Color Coded Harness

LEDTRONICS Assembly p/n: PNL-1147
5mm LED Datasheet: DIS-1024-007 (52K PDF)

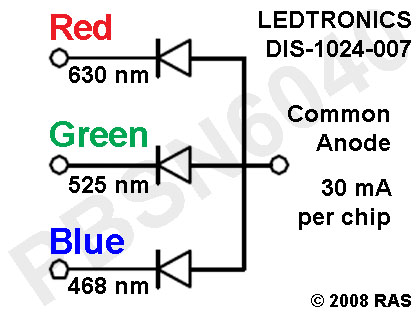

Common Anode LED schematic
 [Just the bare LED without assembly - List: $16.08 each]

Sold in lots of (6)

Rubber O-rings for waterproof mounting are included.
Nuts are NOT included.

FEATURES:
  • 5mm LED has 3 Independent Chips
  • Bright 256 Color Full Spectrum
  • Common Anode
  • 30 mA max per Chip (90 mA total)
  • Clear, Untinted Lense
  • Approx 9/16" Dia, 7/16" H
  • Uses 5/16" nut (nuts NOT included)
  • O-Ring for waterproof mounting
Note: By blending the 3 colors you can also produce white.


Optional: DIY removal of protective housing:
This assembly was designed as a SCBA (Self Contained Breathing Apparatus) status indicator for firefighters. It had to be rugged and waterproof. And it had to be bright so firefighters could watch each other's air supply in smoke filled rooms.

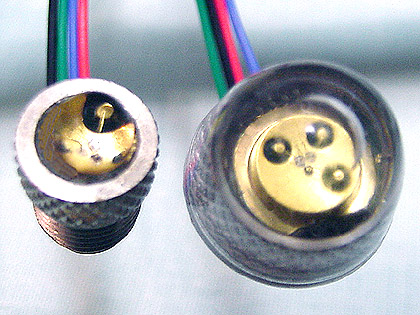

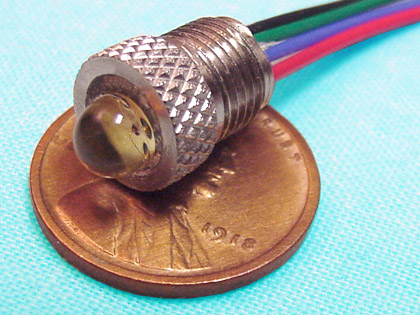

You may not need the large clear epoxy shell. Removing the shell will leave the wired LED intact in the metal bushing. Check the before & after pictures below.

We removed the shell by carefully making hacksaw cuts on both sides and then prying the halves apart. The LED is recessed and can be avoided by keeping the cut on top shallow. Do NOT try to dissolve the shell with strong solvents. Solvents may dissolve the LED too.

We do not recommend removing the 5mm LED from the metal bushing.

We only ship complete assemblies with the clear housing intact. The pictures below are shown for comparison only. NO refunds for altered assemblies.

Datasheet - DIS-1024-007 (52K PDF)

RGB-6
