DAY and NIGHT VISION + COLOR

Brand New in Gift Box

PRODUCT DESCRIPTION:
This new arrival of 7" TFT LCD Widescreen with built-in wireless receiver, is the largest screen wireless backup monitor in the market. The 1" deep thin LCD sits on the fully adjustable base allowing to aim the screen in almost any direction. On Screen Display menu allows you to navigate and change settings from a distance, using remote control. Monitor, fully compatible any of our wireless camera, can view up to 4 separate cameras, with looping channel function. Additional camera is available for purchase separately.

Full RCA A/V input allows you to plug in DVD player, or video game console. The build-in duel speakers output a stereo sound. Get the security you need to protect your family and friends. Eliminate the blinds spots and see what's behind you before you back up. Large 7" monitor is easy to view.

·                 2.4Ghz Wireless Back-Up Camera System, no need for complex connect wire layout, easy install.

·                 Build-in 10 high-powered IR LED night vision helping to see better at night (see sample picture below)

·                 Mirror and Up/Down image switch by pushing the button on the monitor (see sample picture below)

·                 Automatic sun blocking feature viewing while camera facing the sun (see sample picture below)

·                 4-Channel receiver can view up to 4 cameras

·                 7” Color TFT-LCD Monitor with built-in receiver, eliminate the need for additional receiver hardware

·                 Remote control for the monitor, and one RCA A/V input for your DVD or game console.

·                 Comes complete with everything you need to install

·                 Avoid accidents and injuries in your Car, Van, SUV, RV, or delivery vehicle

·                 Night Vision Camera mounts to your existing license plate holder and provides wide angle viewing

·                 For use with 12V DC electrical systems

·                 Installation is easy with the elimination of wires from camera to monitor

·                 Easy to read English installation manual

·                  For different camera type, and different size of LCD, please visit out 4ucam web site.

If you plan to use it in a long truck or trailer, and wondering whether this backup set would work in your case. Please see our demo test case page: www.4ucam.com/backup_camera_tests.html

Why just uses you monitor in your car? You can use it in-door as a Baby Monitor, Security Monitor, or just another flat
panel monitor for your DVD or game console at home. Just add the optional A/C adapter for your 7" monitor. This monitor
can view all wireless camera we carry. You can add A/C adapter, and other wireless camera in our accessories page.
 (If you want a "GPS+Backup Camera System" in one unit, please check out 8909PC or 8907PC)

Specifications:

Camera/Transmitter (8907T)

Monitor/Receiver (7109)

Imaging Sensor        CMOS CMOS Total Pixels        720x480 (NTSC) Minimum Illumination        0 Lux Transmission Frequency        ISM 2,400—2,483 Mhz Transmission Power        10mW/CE; 2mW/FCC Modulation Type        FM Bandwidth        18 MHz Power Supply        + 12V DC Consumption Current (Max.)        250mA Horizontal View Angle        80 Degrees Unobstructed Effective Range        80m [Min.] Dimensions (W x D x H)        44 x 42 x 38(mm) Weight [About)        65g Operating Temperature        -10°C/+50°C or+14°F/122°F Operating Humidity        85% RH

LCD Resolution               480 x 342 Receiving Frequency        ISM 2,400MHz—2,483MHz Intermediate Frequency        480 MHz Demodulation Type        FM Antenna        50 ohm SMA Receiving Sensitivity        <= -85 dBm Video Output Signal Level        1 .1 V +/- 0.2V~ @75ohm, S/N>38dB Audio Output Signal Level        3.0V +/- 1V~ @600ohm Power Supply        + 12/24 V DC Consumption Current (Max.)        900mA Unobstructed Effective Range        100(Min.) Dimensions (W x D x H)        196 x 27 x 127mm Weight [About)        474 g Operating Temperature        -10°C/+50°C or+14°F/122°F Operating Humidity        85% RH

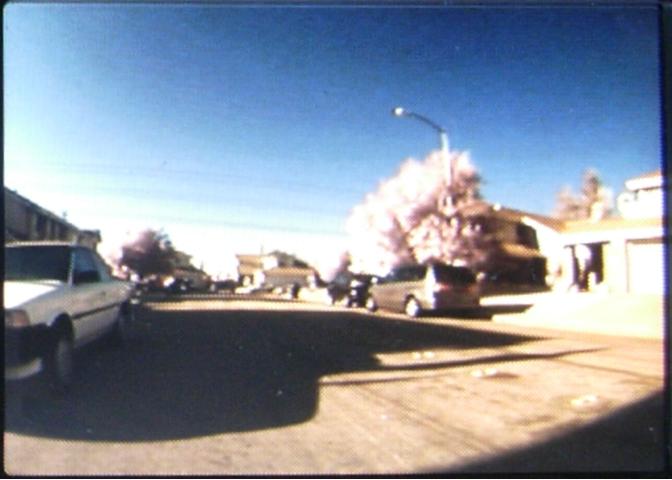

Night Vision feature help to see better at night

IR camera Night view	camera w/o IR view

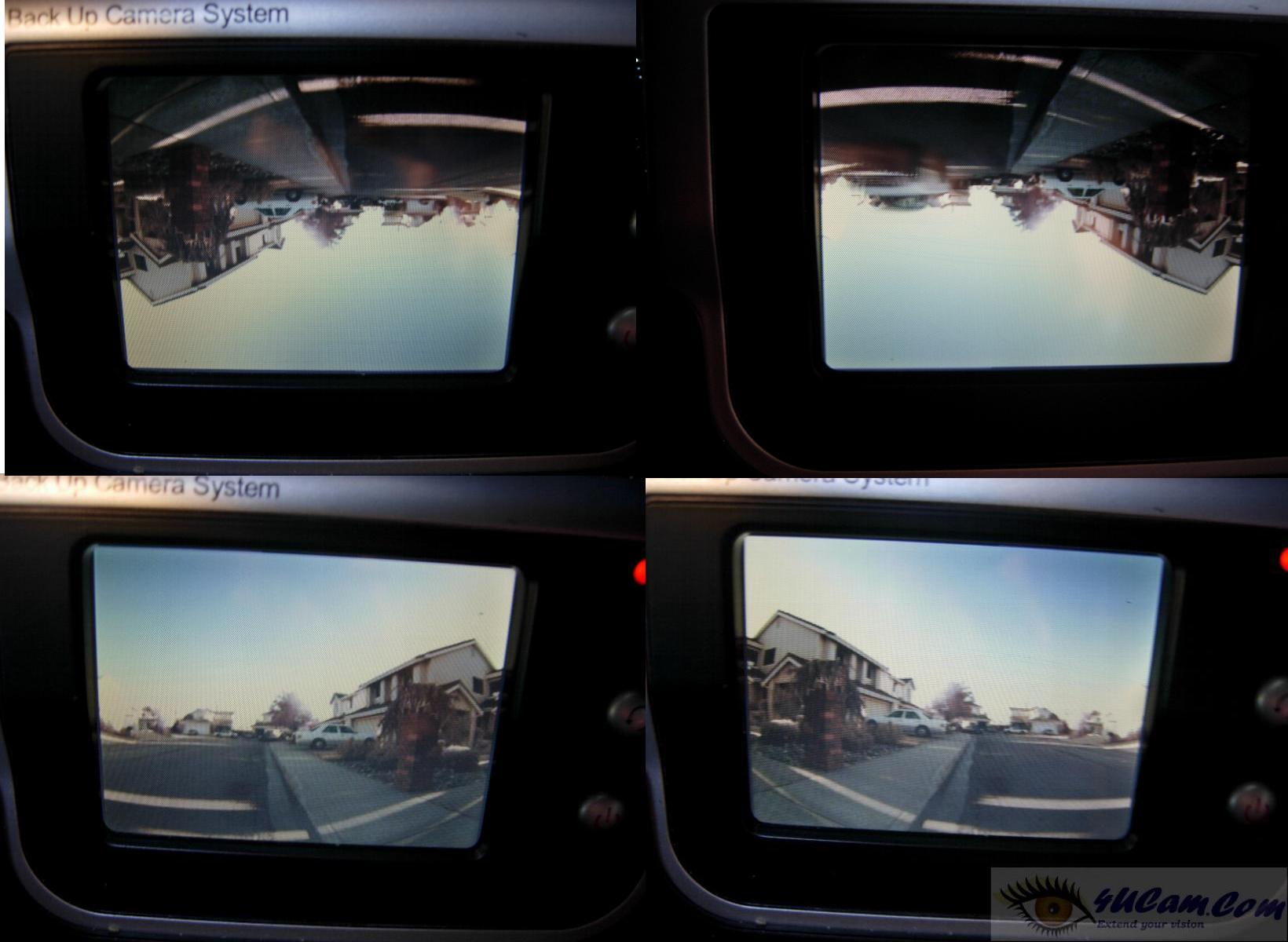

Sun blocking feature	Mirror image switch
