(8) Miniature Magnetic Reed Switches for FUN and SECURITY

0209

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

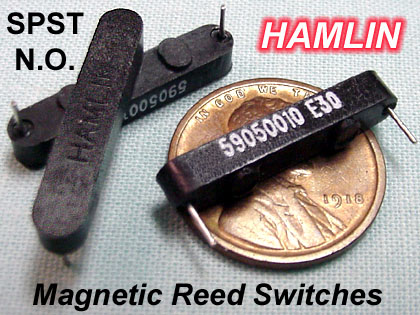

(8) Miniature Magnetic Reed Switches
HAMLIN p/n 59050010

Auction is for (8) switches.

R-U-G-G-E-D - Encased in Plastic
Fast 1.0 ms Response Time
SPST N.O. (closes with magnet)
0.5 Amp Switching
1.2 Amp Load
200 Volt Switching
250 Volt Breakdown
Solderable 1/8" PCB Leads
Easy to Mount and CONCEAL
Datasheet: Hamlin Series 59050 (47K PDF)
Click here to see some SECRET application ideas.
An ordinary refrigerator magnet like the one shown to the right will easily close the switch at a distance of approximately ¾" or more. Orientation is important. The axis of the magnet and switch should be parallel.

(Note: Bidding is for the sensor switches only. Magnets (actuators) are NOT included.)
Magnet and Penny are NOT included.
The PCB leads can easily be extended with hook-up wire.
(Wire not included.)

The plastic case protects the fragile glass bulb within and simplies mounting with glue or adhesive.

Just a few General Application Ideas

Did you know?
Magnetism can penetrate most materials such as glass, plastic, wood, oatmeal cookies, clean socks, non-ferrous metals such as Aluminum and Lead, many grades of Stainless Steel and H2O.

Traditional uses: Mount your magnet in a drawer, window, door etc. and mount the switch to the frame. Wire the switch to signal opening and closing of the monitored item.

Special SECRET uses:

1) Invisible "Keyhole": Arrange several in a pattern and make a special matching "key" with magnets similarly arranged and glued to an aluminum plate or box. You can even mold your own key in plastic.

2) Hide a switch behind an aluminum or plastic panel for completely invisible keyless control. Far better than not knowing where the switch is, they'll never even know a secret switch exists! A magnet hidden in a stuffed toy on top of your computer can grant access when placed discretely over the hidden reed switch. Move the toy back an inch when you go on break and the snoops will never catch on.

3) Here's a real FUN use. I used a switch as a secret reset in a custom PANIC Button box. I left it laying around for the impulsive types to press the irresistible big red button and trigger the alarm. Rivet the aluminum box shut so they have no clue on how to turn the !%#@*& thing off. [ Drill out the rivets to replace the battery when necessary.] One unsuspecting victim pressed the button and eventually stuffed it under a sofa cushion to muffle it. On another occassion, I was surprised to find it buzzing away on my testbench when I arrived at work. Several days later, the night security guard admitted to falling victim during his building rounds.

Label the button: 'Do NOT Press,' 'In Case of Panic Press Here,' or simply 'Press Here.' What would you suggest?

This basic PANIC Button Schematic is intended for reference only. Values may need adjustment depending on your SCR and Siren. This auction is for the magnetic switches only.

4) Hang a magnet on your key chain and hide a magnetic switch behind the tinted glass or a fiberglass fender to arm/disarm your car alarm. [Or, mount it at your pants pocket level, and put a stronger magnet in your pocket and just brush up against the fender.]

5) Glue a magnet to a rotating shaft, wheel, etc. and position the magnetic switch to count rotations.

6) Hold a seance with a magnet taped to your palm. Lay your hands on the table and with the help of a hidden switch below, the lights will flicker.

7) Stick a magnet on your Model Train Engine and mount a switch between the tracks for a train approach indicator at street crossings.

8) Make a wind direction indicator.

9) Hidden garage door opener. Carry an old speaker magnet in your pocket when working out in the garden.

10) Hide one behind the fiberglass for a secret waterproof ignition / 'dead man' switch in your power boat.

11) Float a magnet in a fuel tank and make an external level monitor with spaced switches. Keep the wiring and electricity out of the tank.

Get the idea? Got a Magic Trick application? Unlimited possibilities.
Use your imagination!
