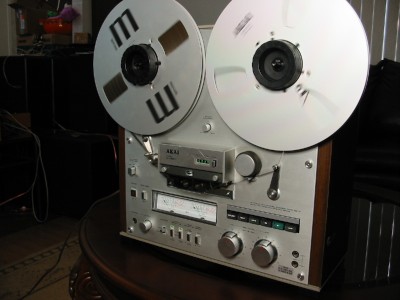

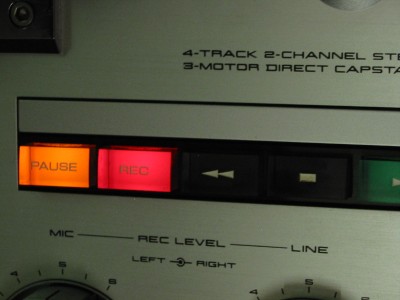

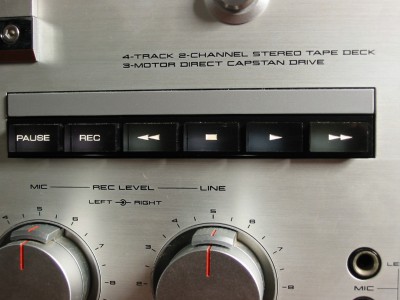

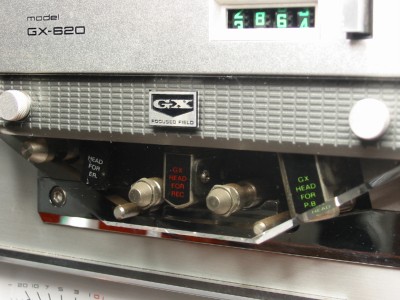

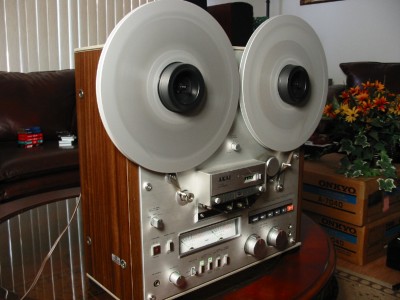

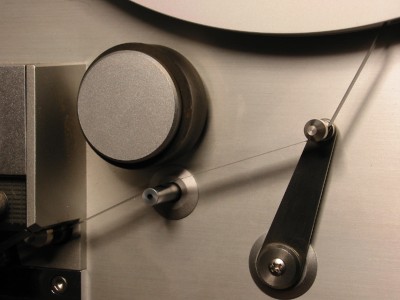

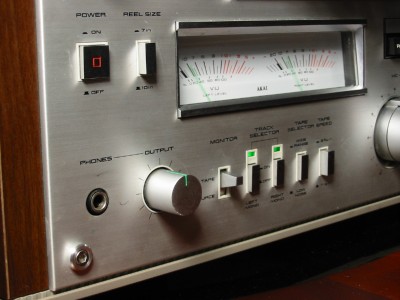

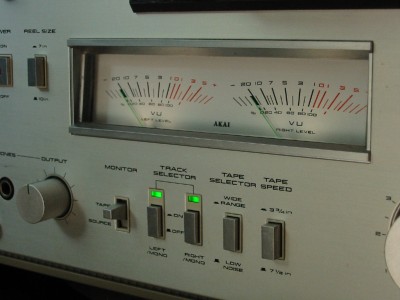

Rare Vintage AKAI GX-620 REEL to REEL STEREO TAPE DECK. Looks like this is very rare version of GX-620 with pitch control (referred as AAL model although I cannot find those letters on the deck), original GX-620 does not have pitch control feature. Here the link to pictures of original GX-620 without pitch control http://www.audio-extasa.eu/popup_add_image.php?pID=891 http://www.audio-extasa.eu/akai-gx620-reel-to-reel-p-891.html This Unit is in great working and cosmetic condition. See pictures for details. Unit itself in great cosmetic condition, a couple minor scratches on the head cover, other than that unit is in great shape, looks great and sound even better. I compared this unit with my GX-747 and there is absolutely no difference in sound. Heads, pinch roller and tape path parts just like new (see close up pictures), according to the original owner - this unit never been used as reel to reel player/recorder, its been used only as amplifier to amplify signal from electric piano. One of the last Akai open reel decks built in the early 80s. 4 track 2 speed, 9.5 and 19 cm/sec. Sonically as good as the big Akai GX 747. A very reliable unit. Unit produced 1979 - 1980 Retailed $850.00. FEATURES GLASS AND CRYSTAL FERRITE HEAD SYSTEM: The Glass and Crystal Ferrite heads are known for their reliability and extra high frequency response and focused field and replaced the Cross-Field head system. These heads were made out of hard class and crystal ferrite and were virtually indestructable, and dust free. They were stated to last 150,000 hours which is equivalent to 17 years. This means the high frequencies don't go dull due to wear since this specific type of head is made out of hard glass and crystal ferrite. TRACK SYSTEM
4 track 2 channel stereo/monaural system
REEL CAPACITY
Up to 10-1/2" reel
TAPE SPEED
19 cm/s ±0.8% (7-1/2 ips.) 9.5 cm/s ± 1.0% (3-3/4 ips.) (Pitch control : ±6%) AAL Model Only
WOW & FLUTTER
Less than 0.03% WRMS, 0.08% DIN 45500 at 19 cm/s Less than 0.04% WRMS, 0.10% DIN 45500 at 9.5 cm/s
FREQUENCY RESPONSE
30 to 26,000 Hz ± 3 dB at 19 cm/s (WR Tape) 30 to 19,000 Hz ± 3 dB at 9.5 cm/s (WR Tape)
DISTORTION
Less than 0.5% (at 1,000 Hz 0VU)
SIGNAL TO NOISE RATIO
Better than 62 dB DIN 45500 at 19 cm/s
ERASE RATIO
Better than 70 dB (at 1,000 Hz)
CROSS TALK
Better than 40 dB (at 1,000 Hz)
CHANNEL SEPARATION
Better than 55 dB (at 1,000 Hz)
BIAS FREQUENCY
100 kHz
HEADS
(3): One GX recording head, One GX playback head, One erase head
MOTORS
(3): One AC servo motor for capstan drive Two AC eddy current motors for reel drive
FF.&RWD.Time
120 sec. using 550 m (1,800 ft.) Tape
OUTPUT JACKS
Line (2): 0.775 V (0VU) Required load impedance: more than 20 kohms Phone (1): 100 mV/8 ohms
INPUT JACKS
Microphone (2): 0.25 mV Required microphone impedance: 600 ohms Line (2): 70 mV Input impedance 100 kohms
DIN JACK
Input: 2.0 mV Input impedance 10 kohms Output: 0.3 V
DIMENSIONS
440(W) x 446(H) x 241(D) mm (17.4 x 17.6 x 9.5")
WEIGHT
17.6 kg (38.9 lbs)
POWER REQUIREMENT
120V, 60 Hz for USA & Canada
POWER CONSUMPTION
120W
Included: 10" Reels and hubs shown on the deck are NOT included, those are my own hubs and reels. It is TESTED and is WORKING VERY WELL. It is being SOLD AS-IS...MEANING NO RETURN...SALE IS FINAL!!! As this item is being sold as-is you are kindly requested to please bid accordingly. E-mail with any questions and good bidding.
