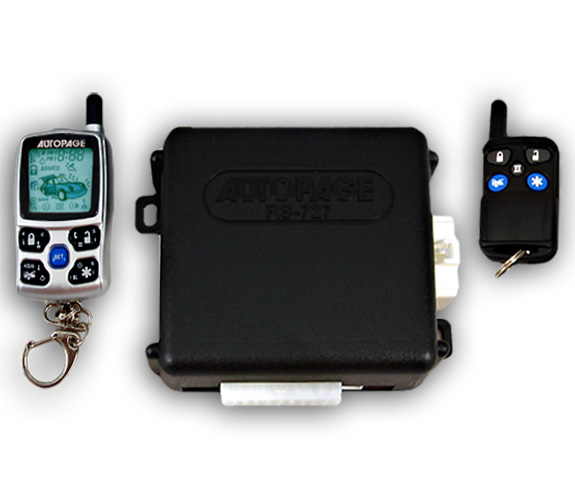

1 New AutoPage RS-727 LCD C3 Compatible Remote
Starter & Alarm System
4-Channel Alarm with Remote Car Starter and Two Way AM/AM
Paging LCD Remote Transmitter
STANDARD COMPONENTS:
· The latest and most advanced vehicle security and
remote start solution, C3 is a cell phone-based vehicle communication system. C3
telematics module integrates a quad-band GSM cellular system and GPS tracking
system providing the user with a cell phone remote commander for security,
remote start and GPS tracking without adding extra minutes to the user's cell
phone.
4 Channel Alarm and Remote Car Starter with 5 on-board
relays for parking lights, starter, accessories, ignition 1&2 and one additional
relay / socket for starter disable.
· Titanium finish, two-way paging receiver and
transmitting remote with 3-color LCD screen using AM frequency bands for
transmitting and receiving at 433.9 megahertz. Unit also includes 24-hour clock
with meter minder and temperature indicator and countdown run timer.
· Two-way, window mount extended range helical
transceiver antenna module.
· Dual Stage shock sensor
· New On-board Serial Port for i-Data Link Data Bus
and Bypass module integration.
· New 5-button extended range 433.9 Mhz remote
transmitter with sliding cover to prevent accidental misuse.
· New programmable outputs, plus new starter and
ignition timing sequence for improved compatibility with new 2007 vehicles
(specifically GM).
· New on-board temperature sensor for identifying
in-cabin temperature from the LCD remote.
· NEW On-board 30/40 ampere micro relays that
contribute to 50% reduction in main unit size to fit smaller and tight spaces
under the dash of newer cars.
TWO-WAY LCD REMOTE OPERATION:
· 5-button configuration with selectable Button
Lock to prevent accidental mis-use.
· Uses one AAA type 1.5volt alkaline battery with
battery life indicator and power save mode
· 3-color LCD screen displays 29 icons and figures
that provide for around-the-clock visual confirmation on vehicle and alarm
status. Back lighting for nighttime use.
· Transmits on AM band and receives on AM band.
· Two-car Operational
· 24-hour digital clock with count down timer for
parking meter reminder. The clock doubles as a temperature indicator for
monitoring in-car temperature.
· Multiple audible confirmation tones as well as
vibrator mode for paging.
ALARM FEATURES:
· 4 Channels of outputs (3 dedicated to
lock/unlock, trunk and remote start / 1 auxiliary output)
· Dedicated function buttons on LCD remote and
5-button standard mini-remote transmitter.
· New Turbo Timer and window Comfort Feature .
· Code learning / Anti-scan receiver with
programmable code hopping.
· Back-up memory system
· Dedicated remote panic and car locator
· Passive arming by-pass from the remote
· Parking light flash with dual polarity relay
on-board
· Starter disable output with relay and socket
included
· Dome light illuminated entry output
· Dual polarity (+/-) door lock outputs with
optional driver s door priority two step unlock
· Additional positive and negative inputs
· 500 mA grounded outputs for starter disable and
door lock/unlock
· Programmable momentary, latched or timer on
auxiliary channel.
· Programmable manual / passive arming with true
last door arming with auto re-arm on
· Programmable Single / Double Pulse Unlock
· Programmable Parking lights (flash or constant)
· Programmable Pathway Illumination (on / off)
· Programmable voltage sense for delayed dome
lights (on / off)
· Programmable horn and siren chirp delete
· Programmable ignition control lock and unlock
· Programmable pulse time for lock and unlock (.9
sec. / 3 sec.)
REMOTE CAR STARTER
FEATURES:
· 5 On-Board Relays:
Ignition 1
Ignition 2
Starter
Accessory
Parking Light
· 3rd Ignition (-) output
· Ground when start (-) output
· Selectable one or two push Safety Start
· Programmable gasoline or diesel with 10, 15, or
20 second Wait-to-Start
· Hood pin switch safety input (pin switch
included)
· Selectable RPM / Voltage Start
· RPM / Voltage / Hi-Low level check
· Timer control start option
· Sensor control output during start
· Temporary Stop Feature
· Factory Alarm Disarm and Rearm signal output
· Programmable factory keyless door locking before
and after start
· Programmable start status output with shock
sensor bypass
· 45 second door / dome light bypass after ignition
is turned off.
· Programmable Ignition 2 (on / off)
· Programmable 3 hour timer start
· Programmable 1 / 3 hour timer start
· Selectable Run Timer (5/10/20/30 minutes)
· Ignition control by-pass during remote start
· Selectable Gasoline / diesel
· Selectable Diesel warm-up time
· Programmable Ignition control locks bypass (on /
off)
· Manufacturers’ Suggested Retail: $499.99
· Full Manufacturers’ Lifetime Warranty
|
