BOSS’ most powerful delay pedal with up to 23 seconds of delay!

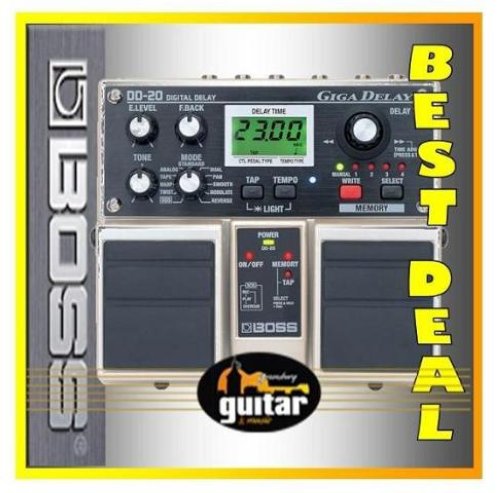

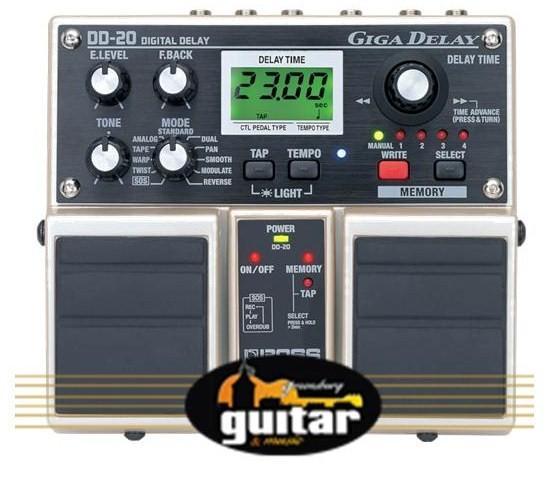

The BOSS DD-20 Digital Delay offers more User memory and the longest delay of any effect pedal—up to 23 seconds!

Delay time can be quickly set using the push-button knob or via tap tempo. And with a choice of 11 modes—including new “Smooth” and “Twist” delays and sound-on-sound recording—this Twin Pedal raises the bar for delay effects.

BOSS DD-20 Features:

• 11 delay modes including classic tape delay and sound-on-sound recording
• New “Smooth” and “Twist” modes for subtle or radical delay effects
• Memory function for changing delay modes seamlessly
• New push-button knob for setting delay time in fine or coarse adjustments

23 Seconds of Pro-Quality Delay
With up to 23 seconds of delay, the DD-20 easily outshines the competition and can even double as a sound-on-sound pedal. Delay time can be adjusted via tap tempo or using a knob, which also features a push function to set the delay range more quickly. Eleven delay modes are provided covering everything from analog and tape delay to reverse delay and more. A new Memory function makes it possible to change delay modes.

New “Smooth” and “Twist” Modes
The DD-20 also introduces two all-new delay effects that are sure to blow some minds. Twist creates wild delay effects similar to “over the top” manipulation of an analog tape echo, while Smooth creates ultra-smooth delay effects. This is a pedal no guitarist should be without!

BOSS DD-20 Specifications:

Nominal Input Level: -20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN)

Input Impedance: 1 M ohms

Nominal Output Level: -20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN)

Output Impedance: 1 k ohms (OUTPUT A (MONO), B), 33 ohms (PHONES)

Recommended Load Impedance: 10 k ohms

Residual Noise Level: -93 dBu or less (IHF-A typ.)
* E. LEVEL/F. BACK/TONE knobs are set to the center position

Display: Custom LCD (with backlit)

Controls: ON/OFF Pedal, MEMORY/TAP Pedal, DELAY TIME Knob, E.LEVEL Knob, F. BACK Knob, TONE Knob, MODE Knob, TAP Button, TEMPO Button, MEMORY WRITE Button, MEMORY SELECT Button

Connectors:

INPUT A (MONO) Jack (1/4 inch phone type)

INPUT B Jack (1/4 inch phone type)
PHONES Jack (stereo 1/4 inch phone type)
CTL PEDAL Jack (1/4 inch phone type)
OUTPUT A (MONO) Jack (1/4 inch phone type)
OUTPUT B Jack (1/4 inch phone type)

AC Adaptor Jack

Power Supply: Dry battery (R6/LR6 (AA) type) x 6: DC 9V
AC Adaptor (DC 9V): Current Draw 200 mA (9 V max.)
* Expected battery life under continuous use; Carbon: 2 hours, Alkaline: 7 hours
These figures will vary depending on the actual conditions of use.

Accessories: Owner's Manual, Dry battery (LR6 (AA) type) x 6
* We recommend that alkaline batteries be used when replacing the batteries.

Options

AC Adaptor (PSA-series)

Size and Weight ( incl. batteries ): Width 178 mm 7-1/16 inches, Depth 158 mm 6-1/4 inches, Height 57 mm 2-1/4 inches, Weight 1.2 kg  2 lbs. 11 oz.

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
