You are
bidding on a brand new professional reprint of the
Case 580 Super E
Loader Backhoe Service Manual. This is the most
up-to-date service manual available for the 580E/Super E. This is the same exact
literature that your local Case dealer uses to repair equipment. It was originally
printed in 1985. It is complete with

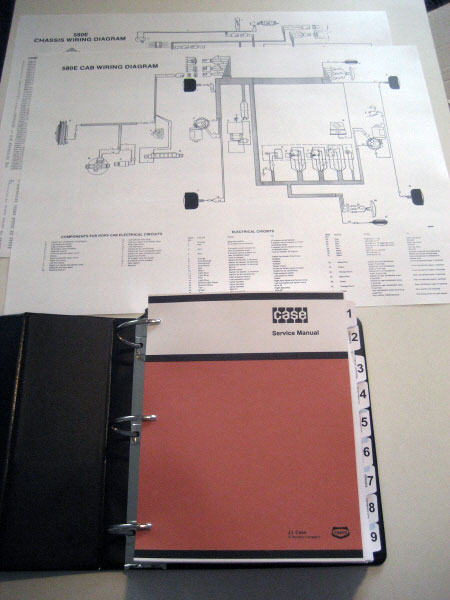

1,312 pages. The book also comes
with large fold out wiring diagrams (19" x 25"). This
reprint is actual better easier to use than the original
due to the new D-Slant binder which makes the pages lay flat as
opposed to the binder that the original comes in.
You will not find a better reprint of
this manual ANYWHERE!

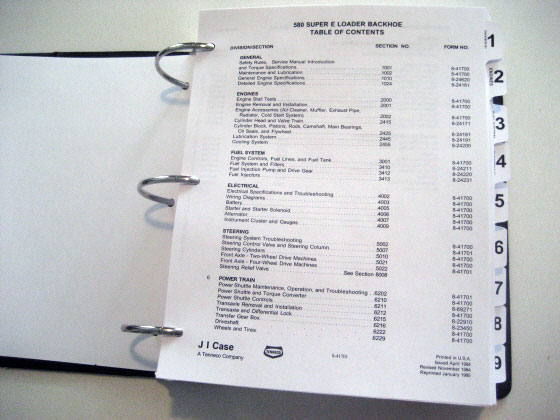

Table of Contents:
GENERAL
Safety Rules, Service Manual Introduction and
Torque Specifications
Maintenance and Lubrication
General Engine Specifications
Detailed Engine Specifications
ENGINES
Engine Stall Tests
Engine Removal and Installation
Engine Accessories (Air Cleaner, Muffler, Exhaust Pipe,
Radiator and Cold Start System)
Cylinder Head and Valve Train
Cylinder Block, Pistons, Rods, Camshaft, Main Bearings, Oil Seals
and Flywheel
Lubrication system
Cooling System
FUEL SYSTEM
Engine Controls, Fuel Lines, and Fuel Tank
Fuel System and Filters
Fuel Injection Pump and Drive Gear
Fuel Injectors
ELECTRICAL
Electrical Specifications and Troubleshooting
Wiring Diagrams
Battery
Starter and Starter Solenoid
Alternator
Instrument Cluster and Gauges
STEERING
Steering System Troubleshooting
Steering Control Valve and Steering Column
Steering Cylinders
Front Axle - Two Wheel Drive Machines
Front Axle - Four Wheel Drive Machines
Steering Relief Valve
POWER TRAIN
Power Shuttle
Maintenance, Operation and Troubleshooting
Power Shuttle and Torque Converter
Power Shuttle Controls
Transaxle Removal and Installation
Transaxle and Differential Lock
Transfer Gear Box
Driveshaft
Wheels and Tires
BRAKES
Brake Pedals and Linkage, Master Cylinder, and
Parking Brake
Self-Adjusting Differential Brakes
HYDRAULICS
Hydraulic Specifications, Maintenance, Troubleshooting,
Flowmeter Tests, and Pressure Checks
Hydraulic Pump
Loader Control Valve
Steering Relief Valve and Quick Disconnect Couplings
Three Point Hitch Control Valves
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
MOUNTED EQUIPMENT
Air Conditioning Troubleshooting
Air Conditioning System
Loader
Three Point Hitch
ROPS Cab and ROPS Canopy
Seats, Seat Belts, and Seat Supports
Backhoe
Decals and Painting
Noise Control
Terms of bidding:
High bidder must reply within 3 days of
auctions end. Payment must be received within 10 days of the end
of the auction. I ship worldwide, so if you live outside of the
USA please request a shipping quote before bidding. I am also
happy to combine shipping on multiple items. Acceptable payment
forms are: Paypal and
credit cards via Paypal.
