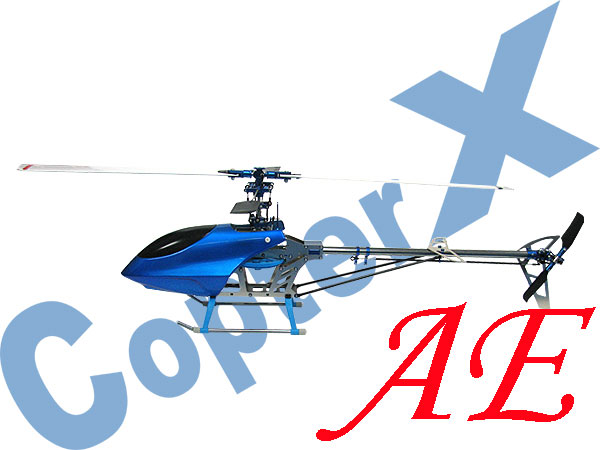

CopterX 450AE V2 Kit Helicopter T-rex Trex 450 450SE SE

Description:

• Arrived with 95% Assembled
• CopterX CX 450 Aluminium Edition (eCCPM) represents the state of the art in micro helicopter technology, utilizing the latest design techniques and highest material quality, aluminum parts are anodized in a pleasant blue color. This kit is for the flyers who want uncompromised performance and quality. This AE arrived with 95% Assembled!
• New CNC aluminum improve the rigidity and perfect for 3D flying.
• Changing servo location to CCPM version, new aluminum parts for prompt, precision actions.
• SSG battery mounting plate connects to main frame. It makes the center of gravity closed to rotor blade, reduced the correction when the heli rotation rolling.
• Rigid CNC aluminum rotor head for precision and smooth movements.
• Using Ball and Hiller two systems mixing control. Through simple structure of Ball control system, power-saving of Hiller system and CCPM control, can simultaneously control 3 servo for AILE, EVLE, PIT 3 actions. This CCPM control system is great for 3D flying control and extending life cycle of servos.
• New streamlined carbon tail rotor blades makes the gyro more efficient.
• New tail rotor control set, CNC control piece and movable ball link for smooth pitch travel.
• Providing flybar weight- When normal flying, you can add the weights on flybar paddles for stable flight. When aerobatic flying, you don't need to add the weight, but you can see the flexibility of 3D actions.
• CNC Metal tail unit and tail holder are using high rigid aluminum, falling resistance.
• New gear ratio(4.24:1), suitable for the motor with higher KV, provide more safty.
• Use Aluminum alloy drive pulley and tail drive pulley, high regid and wear resistance. It is efficient to reduce the rotation loss and makes more smooth.
• All kit use stainless steel linkage ball, wear resistance, anti-oxidization.
• Tail rotor hub made of stainless steel, very rigid.
• Great stable and sensitive mixing lever design! Can disply the great stability and precision for 3D flight.
• CX 450AE special adjustable pitch system, hold rotation system, tail rotor drive belt system! It is a work of great originality for helicopter!

Features :

• V2 Head Rotor Set (4mm Shaft)
• V2 Tail Rotor Set
• Auto-Rotation System
• Rear Tail Servo Mount
• Collective Pitch System
• Tail Rotor Drive Belt System
• Main Drive Gear with Cooling Fan
• Professional Servo Control Lever Design

Specification :

• Length:650mm
• Height:230mm
• Main Rotor:700mm
• Tail Rotor:150mm
• Motor Gear:13T/11T
• Main Gear:150T
• Autorotation Tail Drive Gear:106T
• Tail Drive Gear:25T
• Drive Gear Ratio:1:11.5:4.24/1:13.6:4.24
• Weight(without power system):354g
• Weight(including power system):690g

PACKAGE INCLUDED:

• CX 450AE V2 Kit ONLY (95% Assembled without electric parts) x 1

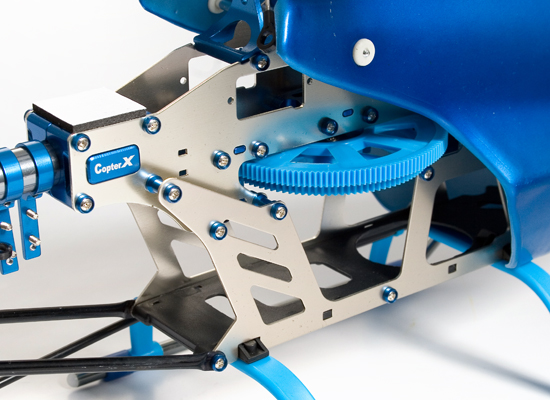

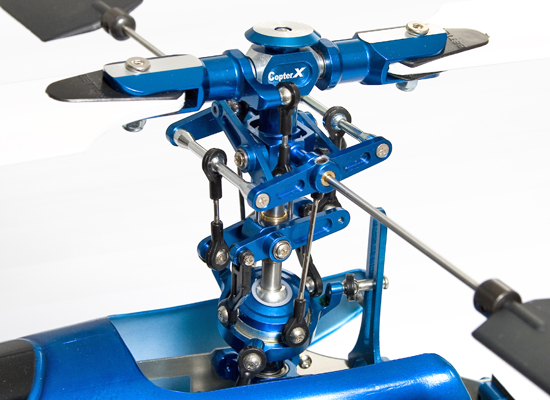

Focus Shot1: New main rotor head assembly: 4mm feathering shaft+ main rotor holder with thrust bearing design.	Focus Shot2: New higher strength carbon fiber main frames & new longer battery mounting plate(c.g. adjustable).

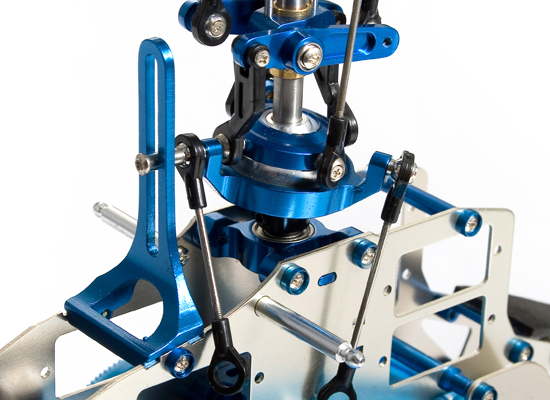

Focus Shot3: New anti rotation bracket & high precision swashplate.	Focus Shot4: New high balanced main drive gear with dual cooling fan design patent.

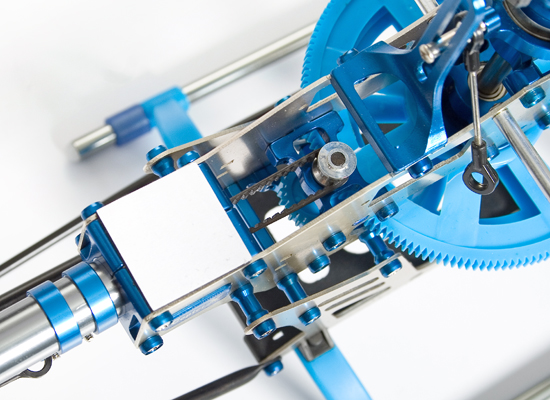

Focus Shot4: New high balanced main drive gear with dual cooling fan design patent.	Focus Shot6: High rigid wear-resisting aluminum tail drive pulley.

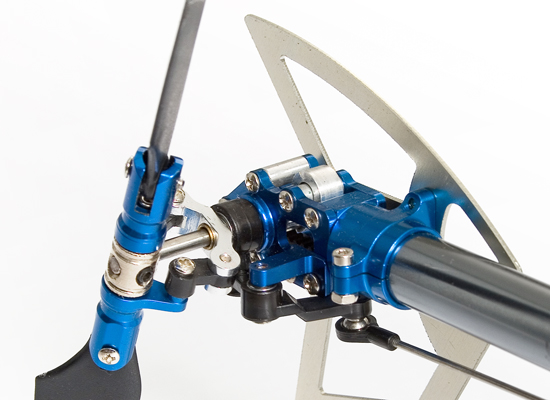

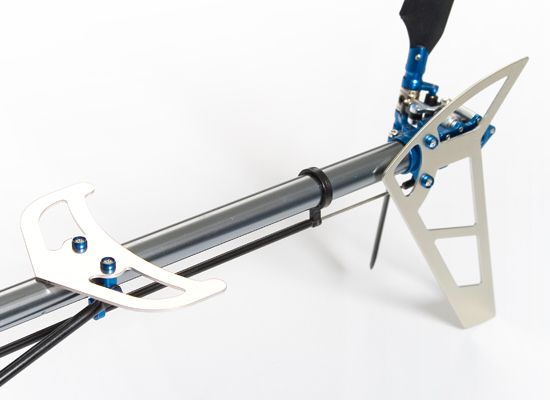

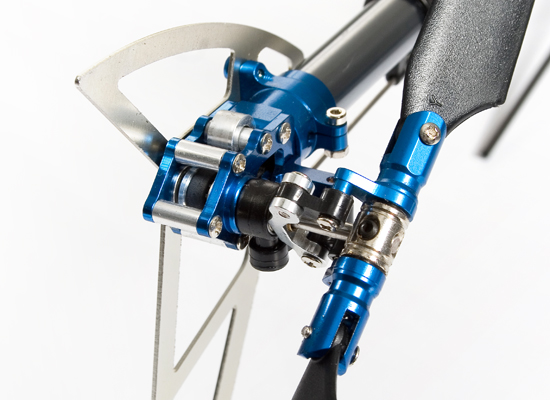

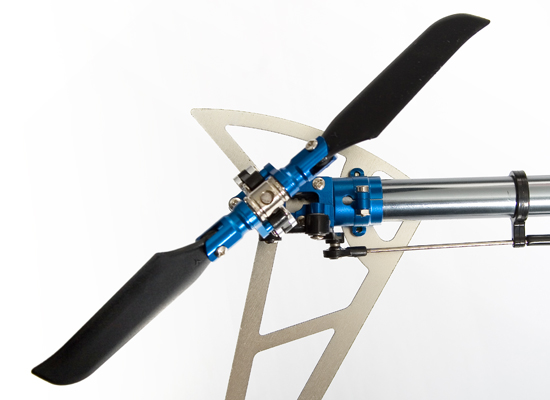

Focus Shot7: New vertical/horizontal stabilizers & New c.g. amended tail blades.	Focus Shot8: New precision tail pitch assembly with dual bearings.

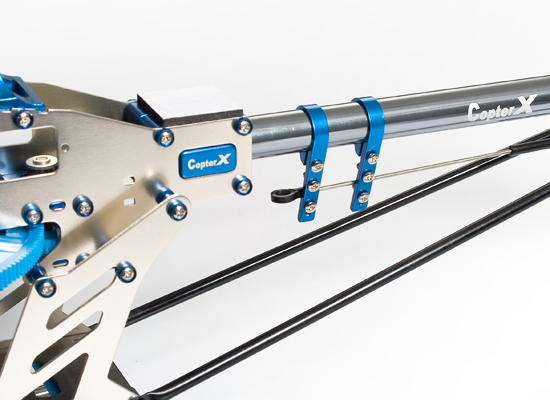

Focus Shot9: New tail boom mount & New tail servo mount with dual fixing holes.	Focus Shot10: New Tail rudder control rod & control guide.

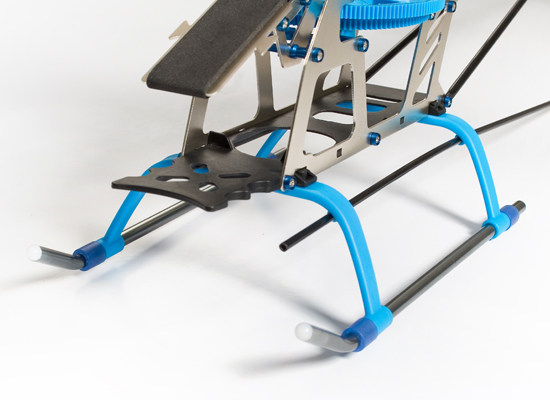

Focus Shot11: New higher strength landing skid.

ARF assembly illustration:
