Digitech 2112 2120 VGS Artist firmware upgrade 2.11 NEW

Digitech SGS 2112 to 2120 VGS upgrade
Firmware Upgrade Version 2.11
(Artist upgrade chip)
and Replacement Battery!





You are bidding on the Digitech firmware upgrade "2.11" for the SGS 2112 and 2120 VGS (Artist) Guitar effects processor.
These upgrade chips are new and tested.
This auction also includes the internal battery for the SGS 2112 and 2120 VGS (Artist) which should be replaced every 7 years.

First:
Check your software-version!!!
Switch on the unit while watching the display. The firmware version in shown there while boot up. E.g. the display shows "1.03" – that means firmware version 1.03.
If you have a lower version than 2.11 you can use this upgrade.
This upgrade works for ALL SGS 2112 and 2120 VGS (Artist)!

What you will get in this auction:
The complete firmware upgrade chip to 2.11 with detailed installation manual in English!
This upgrade will make a 2120 Artist out of any 2112!
A new replacement battery CR2032 (The battery is not necessary for the upgrade, but you should take the opportunity to replace the battery when you have your unit open)
If you have any questions to the upgrade just write me a message!

You will need a new user manual!!!
After you have upgraded to firmware version 2.11 you will need a new user manual (the manual for the 2120 Artist) because the operation functions change with this software!
You can download the user manuals in English and German for free here!!

Item Condition:
These upgrade (chip and battery) are new, tested, in working condition.
If you don't like the parts you'll get your money back!!!

More SGS 2112 and 2120 VGS stuff wanted?
Check out my homepage:
SGS 2112 and 2120 VGS Webpage

FAQs:
Q: Do I need any special tools to install the upgrade?
A: No, you only need standard screwdrivers to install the upgrade. The EPROM sits in a socket and is NOT soldered. It is easy to replace it. It is just like a BIOS EPROM on a PC motherboard.

Q: What are the differences between the SGS 2112 and 2120 VGS?
A: The Digitech 2120 and 2112 have identical circuitry. Hardware is electronically and mechanically the same. The 2120 shipped later and, therefore, had later firmware versions. If you install the latest firmware into a 2112, you will have a 2120 with the 141 factory patches. The only difference will be the face plate.

Q: Which benefits do I get by installing the 2.11 firmware in my SGS 2112 or 2120 VGS?
A: By installing the 2.11 firmware you upgrade every SGS 2112 to a 2120 VGS.
You'll get the following benefits if you upgrade from 1.01, 1.02 or 1.03 to 2.11:

• upgrades a SGS 2112 to a 2120 VGS Artist
• support for RPEdit
• software updates which clear up connection issues when using RPedit. It's good to be able to back up your patches easily.
• 5 new modules: Pedal Phaser, Reverse, Time Warp, Sampler, and Mono/Stereo Sampler
• Volume pedal update function
• some bug fixes
• 41 additional factory artist patches
• fixed dynamic modifier speed problems (improved speed)

You'll get the following benefits if you upgrade from 2.01 or 2.02 to 2.11:

• support for RPEdit (possibility to dump your settings and patches to/from a computer and direct control you unit using RPEdit)
• software updates which clear up connection issues when using RPedit. It's good to be able to back up your patches easily.
• 5 new modules: Pedal Phaser, Reverse, Time Warp, Sampler, and Mono/Stereo Sampler
• Volume pedal update function
• some more bug fixes
• 41 additional patches form the old 2112 era which are superb
• fixed dynamic modifier speed problems (improved speed)

You'll get the following benefits if you upgrade from 2.10 to 2.11:

• more software updates which clear up connection issues when using RPedit. It's good to be able to back up your patches easily.

Q: Will I lose my presets after installing the 2.11 firmware?
A: Yes, because after installing you have to execute a hard reset.
If you want to keep them, consider a bulk MIDI dump or individual program dump. Or, write down your most important settings on paper.

Q: How do I recognize that the internal lithium battery gets weak?
A: Best would be to measure the voltage with a voltmeter. If you don't have one:
- The unit doesn't hold the presets while switched off.
- The display might show garbled characters
I recommend replacing the battery every 7 years.

Happy bidding!!!!

Shipping options and rules:
The buyer can choose registered or insured shipping at any time, also if this is not listed in the shipping options below or the Ebay checkout. The buyer should ask me for the costs of these options before the auction ends.

EUROPEAN BUYERS: This listing is not for European buyers!
European buyers please click here - or contact me!

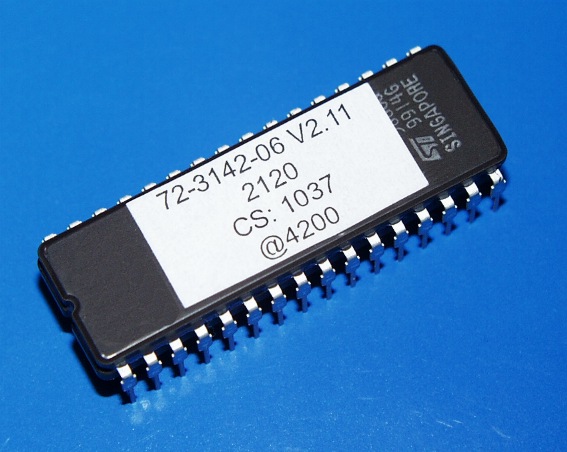

This picture shows the chip and the new battery installed:

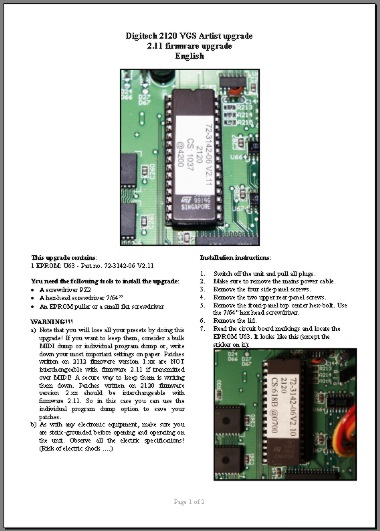

This picture shows the first page of the installation manual:
