ECS
P4M800PRO-M (V2.0) LGA 775
Motherboard
Feature Highlights
- Support latest Intel
Core 2 Duo /
Pentium D / Pentium 4 / Celeron D processor
- Support
1066MHz
FSB.
- Support newer
240-pin
DDR2
RAM and older
184-pin
DDR RAM
- Support newer
24-pin
power supply and older
20-pin
power supply.
- Support SATA,
which allows you to join several hard drives and increase data
transfer by separating data (RAID
0) or by
keeping 100% secure data duplication (RAID
1)
- Refurbished by
manufacturer.
Clean! Looks brand new!

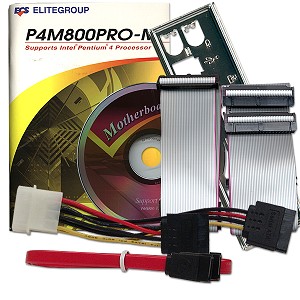

- Retail boxed. Accessories include
I/O shield,
motherboard manual, driver CD, IDE cable, floppy cable, SATA cable.
|
|

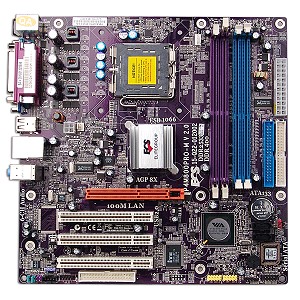

P4M800PRO-M (V2.0)
(Retail boxed, 1-year
warranty) |
|
 |
LGA 775 CPU Support
Support latest Intel Core 2 Duo / Pentium D
/ Pentium 4 / Celeron D processors |
 |
FSB 1066MHz
Supports the latest 1066MHz front side bus Intel® processors |
|
 |
Pentium D Dual Core Support
Dual-core is basically two separate processors on a single chip. Outperforms
single-core processors |
 |
64-bit Memory Architecture
Allows platforms to access more memory and larger files, such as audio and video
encoding, complex programs and games. |
|
 |
ATA 133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up
to 133MB/s |
 |
AGP 8X Technology
Highest bandwidth up to 2.1GB/s graphics interface enables
upgradeability to latest graphics cards . |
 |
WHQL Certificate |
 |
2 x 184-pin
DDR400/333 DIMM socket support
up to 2 GB
2 x 240-pin
DDR2 533/400 DIMM socket support
up to 2 GB
Users can use either DDR2 or DDR memory modules (can
not mix and use) |
|
 |
6-Channel Audio
High-quality 6-channel audio brings a more vivid sound experience |
 |
10/100 LAN
Provides 10/100 Mbps solution to your network connection |
|
 |
Serial ATA
Supports Serial ATA HDD running at 150MB/s |
 |
RAID0, RAID1
Provides RAID0, RAID1 modes |
|
 |
USB 2.0
Delivers transfer speeds up to 480Mb/s for easy connectivity and
ultra-fast data transfers |
 |
Color Map
Color-coded pin headers and slots make it easy to match plug |
CPU
Support
-
LGA 775 for Intel® processors -
FSB 1066/800/ 533 MHz -
Support Hyper-Threading Technology -
Support
Core 2 Duo
CPUs -
Support Pentium 4 and
Pentium D CPUs -
Support Celeron D
CPUs -
For
detailed CPU support list, click
here
Chipset
- VIA® P4M800Pro & VT8237R+
-
North Bridge: VIA® P4M800Pro
-
South Bridge: VIA® VT8237R Plus
Memory
- Single-channel DDR memory architecture
- 2 x 184-pin DDR DIMM socket support up
to 2 GB
- 2 x 240-pin
DDR2 533/400 DIMM socket support up
to 2 GB
-
Users can use either DDR2 or DDR memory modules (can
not mix and use)
Expansion Slot
- 1 x AGP 8X slot
- 3 x PCI slots
Graphics
- Integrated S3 UniChrome Pro 2D/3D Graphics
- Share memory :
up to 64MB
Storage
- Support by VIA® VT8237
- 4 x Ultra DMA133/100/66 devices
- 2 x Serial ATA devices
- RAID0 & RAID1 configuration
Audio
- Realtek ALC655 6-Channel audio CODEC
- Compliant with AC'97 2.3 specification
LAN
- VIA® VT6103L 10/100 Mbps Fast Ethernet PHY
Rear Panel I/O
- 1 x PS/2 keyboard & PS/2 mouse connectors
- 4 x USB ports
-
1 x RJ45 LAN connector
- 1 x VGA port
- 1 x Parallel port (LPT1)
- 1 x Serial port (COM1)
- 1 x Audio port (Line-in, Line-out, Mic-in)
Internal I/O Connectors and Headers
- 1 x 24-pin ATX Power Supply connector
(also works with 20-pin connector, just leave out 4 pins)
- 1 x 4-pin ATX 12V connector
- 1 x FDD connector supports two
360K~2.88MB FDDs
- 2 x IDE connectors
- 2 x Serial ATA connectors
- 2 x USB 2.0 headers support additional 4
USB Ports
- 1 x Buzzer
- 1 x IrDA for SIR header
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- 1 x AUX-in header
- 1 x CD in header
- 1 x CPUFAN/SYSFAN connectors
System BIOS
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI
- Supports ACPI revision 1.0 specification
Form Factor
- Micro-ATX Size, 9.6" x 9.6" (244mm*244mm)
Manufacturer link
- Click
here for Manufacturer link.
- Click here for
BIOS download.
-
Got
BIOS? We will upgrade the
motherboard BIOS to the latest version (2007.08.30) prior to shipment at no
additional cost.
|
|
