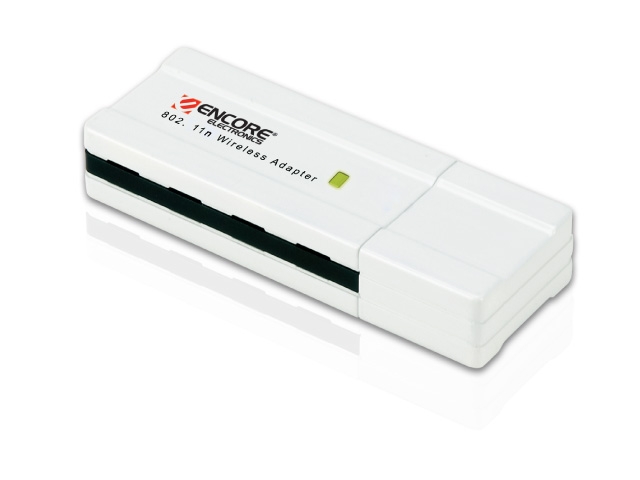

The ENCORE ENUWI-NX2, 802.11n
Wireless USB adapter is fully compliant with IEEE 802.11n Draft
2.0, which provides users in launching IEEE 802.11n wireless
networks at up to 300 Mbps speed in the 2.4GHz band. It is also
backward-compatible with IEEE 802.11b/g wireless devices at
11/54 Mbps speed. It can be configured to connect to an ad-hoc
network mode, connecting to other 2.4GHz wireless devices and
computers, or to the Infrastructure network mode to connect to a
wireless AP or wireless router for internet access. This USB
adapter includes a convenient Utility Software for scanning
available wireless networks and an option in saving profiles of
the preferred networks of the user’s usual wireless connection.
It is also equipped with a configurable wireless security and
encryption software.
Key
Features
WiFi™, Certified and WPS™,
Certified Product
Compatible with IEEE 802.11n
Draft 2.0 Specifications provides wireless speed up to 300Mbps
data rate
Compatible with IEEE 802.11g
high rate standard to provide wireless Ethernet speeds of 54Mbps
data rate
Dynamic data rate scaling at
54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic data rate scaling at
11, 5.5, 2 and 1Mbps for 802.11b
Supports Multiple Input
Multiple Output (MIMO) technology with 1TX/2RX
Maximum reliability,
throughput and connectivity with automatic data rate switching
Supports wireless data
encryption with 64/128-bit WEP standard for security
Supports enhance security
for WPA-PSK, WPA2-PSK, WPA and WPA2
Supports WPS (Wireless
Protected Setup) Technology
Two internal smart antennas
Drivers support Windows®
2000/XP and Windows Vista™
Simple user setup &
diagnostics utilities
Type approval compliant with
FCC Part 15.247 for US and ETS 300 328 for Europe
Specifications:
Radio Technology:
IEEE 802.11g Orthogonal
Frequency Division Multiplexing (OFDM)
IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)
EWC 802.11n Orthogonal Frequency Division Multiplexing (OFDM)
Interface:
USB 2.0, USB 1.1
Transmission Rate:
1, 2, 5.5, 6, 6.5, 9, 11, 12,
13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5,
48, 52, 54, 58.5, 65, 81, 108, 121.5, 135Mbps (auto sense)
Receiver Sensitivity:
135 Mbps: Typical - 65dBm @ 10%
PER
54Mbps: Typical - 68dBm @ 10% PER
11Mbps: Typical - 84dBm @ 8% PER
Media Access Protocol:
CSMA/CA with ACK
Transmit Power:
17dBm typically @ 802.11b
13dBm typically @ 802.11g
13dBm typically @ 802.11n
Channel:
USA: Channel 1-11, Europe:
Channel 1-13, Japan: Channel 1-14
Operating System Driver
Supported:
Windows®
2000, Windows XP and Windows Vista™
Wireless Security:
64/128-bits WEP Encryption,
WPA-PSK, WPA2-PSK, WPA, and WPA2. WPS™ (Wireless Protected
Setup)
Wireless LAN Frequency
Range:
2412 ~ 2484 MHz ISM band
(channels 1 ~ 14)
Range Coverage:
Indoor: Up to 100 meters
(depending on the environment)
Outdoor: Up to 300 meters (depending on the environment)
Antenna Type:
Two internal, One printed and
one PIFA high performance antennas
Output Power:
15dBm (typically) @ 802.11b
14dBm (typically) @ 802.11g
14dBm (typically) @ 802.11n
Dimensions (W x H x D):
86 x 30 x 13 mm
Operating Temperature:
0 ~ 40 oC
Storage Temperature:
-10 ~ 70 oC
Humidity:
10% ~ 95% RH, no condensation
Certifications:
Wi-Fi
Certified, WPS Certified, USB Forums Certified, FCC Part 15.247
for US and ETS 300 328 for Europe
