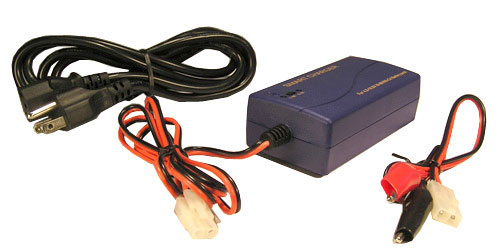

• It is a multi-current Universal Fast and Smart Charger for any NiMH /NiCd battery packs from 4.8V-10.8V  ( 4 - 9 cell pack)
• 120-240V AC input for world wide voltage support.
• Designed for use with 4.8V-10.8V Battery Packs with capacity >1000mAh
• Idea for all range RC Car and Airsoft gunbattery pack.
• Using Pulse and Negative pulse technology ( 10% negative puls ) to avoid battery overheating and polarized during fast charging, Significantly increasing battery pack's cycle life.
• Automatically detect battery pack's voltage, Red LED will be on during charging.
• Automatically cut-off by negative delta V when battery pack get fully charged.
• Two current levels,  e.g. 1A or 2 A  is selectable by a switch.
• For battery pack between 1100mah and 2100mah, please use the low level switch -- charging rate: 1 A
• For battery pack over 2100 mah, please use the high level switch -- charging rate: 2 A
• Charging time from approx. 30 mins to 100 mins depending on the capacity of battery. For 3000 mAh battery pack, charging time is about 90 minutes and for 1800 mAh battery pack , charging time is 60 min.
• One standard Tamiya male connector installed with the charger. Ideal for charging all 4.8V-10.8V RC Car, RC air and Airsoft battery packs
• One set of Clip adapter with female tamiya connector included for charging any battery packs.
• One connector adpator from standard Female Tamiya to Male Mini. Tamiya for charging RC air battery packs.
• It is very smart charger. You don't need take care anything, just plug in and wait for battery charging ready
• Dimension: 1.5"H X 2.5"W X 5.5"L.
• Weight: 0.6LB.
• Ul & CE approved for safety

Operation Instruction:

• Connect battery pack to output connector and plug AC power source
• Make sure battery polarity is connected correctly (Red wire is positive)
• When the unit connect the AC source, the red LED and green LED flash for two times, then all off.
• After it connect the correct battery pack, the red LED will be on, shows that it is charging.
• After battery is fully charged, green LED will be on and it shows the battery fully charged.

Precautions:

• Please don't use the charger for low capacity battery pack (<1100mah).. strongly suggestion to use Powerize brand high drain rate battery pack. We are not responsible for any damage caused by charging other brand battery using this charger.
• Brand New design with Pending Patent. Can not find from any retail store.

Application for following Battery Packs

• Charge all 4.8V-10.8V NiMH/NiCD pack.
• 7.2V Rc battery pack from 1700 mAh - 3300 mAh.
• 8.4V Airsoft gun battery pack from 1100 mAh - 3300 mAh
• 9.6V Rc or Airsoft battery pack from 1400 mAh - 3300 mAh.'
• 12V NiMH Battery pack
• Use 2-3 chargers to charge 2-3 Battery pack modules of 12V, then They can be used as 24V - 36V smart charger
