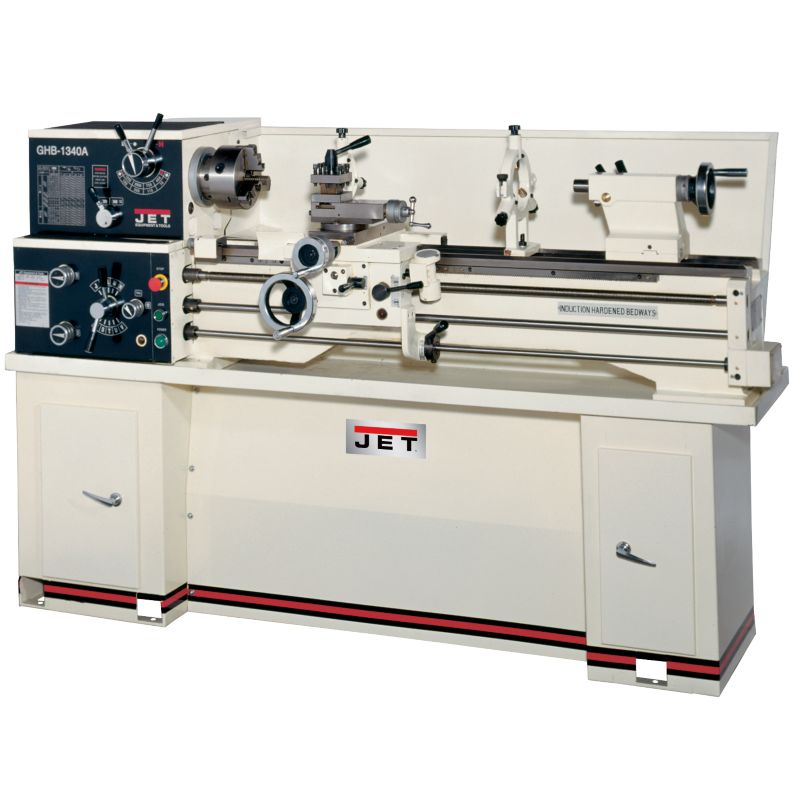

Jet 321102AK BDB-1340A 13" X 40" Belt Drive Lathe

This Jet 321102AK BDB-1340A With CBS-1340A Stand is Brand New!

Jet 321102AK Features:

• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Low voltage motor controls
• Helical cut headstock gears reduce noise
• Change gears allow metric threading
• Spindle is supported by precision tapered roller bearings
• V-way bed is induction hardened and ground
• Gap bed section provided for large diameter work
• Independent leadscrew and feed rod
• T-Slotted compound slide with four-way tool post
• Carriage mounted spindle control lever
• Automatic feeding and threading are fully interlocked
• Feed selectors travel in grooved ways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Oil pan included
• Tolerance test certificate included
• 6" 3-jaw direct mount chuck with top reversing jaws
• 8" 4-jaw chuck
• 12" face plate
• Four-way tool post
• Steady and follow rest
• Metric change gear
• Centers with headstock center sleeve
• Threading dial
• Toolbox with tools

Jet 321102AK Specifications:

Swing over Bed (in.): 13
Swing over Cross Slide (in.): 7-25/32
Swing Through Gap (in.): 18-3/4
Length of Gap (in.): 8
Distance Between Centers (in.): 40
Spindle Bore (in.): 1-3/8
Spindle Mount: D1-4
Spindle Taper W/ Sleeve: MT-5 (MT-3)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 60 - 1240
Number of Longitudinal and Cross Feed Rates: 40
Range of Longitudinal Feeds (IPR): .0036 - .0325
Range of Cross Feeds (IPR): .0012 - .0345
Number of Inch Threads: 40
Range of Inch Threads (TPI): 4 - 112
Number of Metric Threads: 27
Range of Metric Threads: 0.2 - 6
Max Tool Size (in.): 5/8 X 5/8
Compound Slide Travel (in.): 2-11/16
Cross Slide Travel (in.): 6-5/16
Carriage Travel (in.): 35
Tailstock Spindle Travel (in.): 3-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in.): 2-5-8
Follow Rest Capacity (in.): 2-3/4
Width of Bed (in.): 7-3/8
Motor: 2HP, 230V, 1 Ph
Height: 45 inch
Width: 32 inch
Length: 71 inch
Net Weight: 1055 pound
