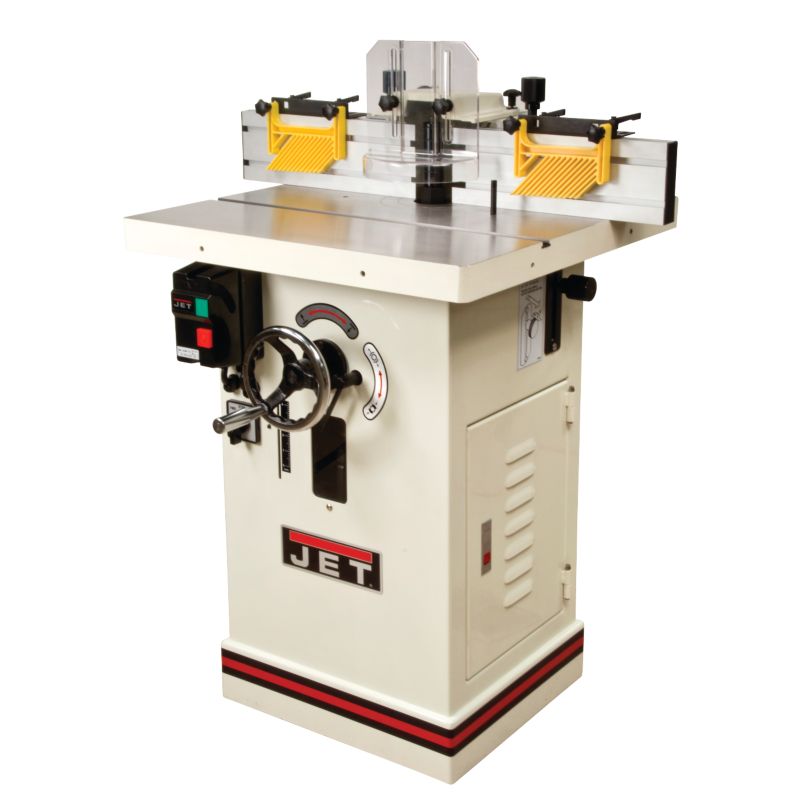

Jet 708309 JWS-25X 3HP Spindle Shaper

This Jet 708309 JWS-25X 3 HP Spindle Shaper is Brand New!

Jet JWS-25X Features:

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.

• Two-speeds let you select the best speed and torque for different cutter diameters
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
• Poly-V-belt transfers maximum power to the spindle
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Powerful 3HP, 1Ph motor with magnetic controls
• Starting pins for irregular shaping
• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• 4” Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set up
• Spindle height scale

Jet JWS-25X Specifications:

Spindle Speed: 7500 and 10,000 RPM
Reversable: Yes
Spindle Diameter: 1/2 and 3/4"
Spindle Size Under Nut: 1/2 (2 13/64) and 3/4 (3 3/16)"
Spindle Travel: 3
Table Size: 25 x 25 1/2"
Table Height From Floor: 33"
Table T-Slot: 3/4 x 3/8"
Table Opening Diameter: 6-9/32"
Table Insert Opening Diameter: 2-9/16 and 4-21/64"
Fence Size (L x H): 14 1/2 x 4 3/4"
Fence Travel (Major and Minor): 4 1/4 and 15/16"
Table Inserts: 2
Maximum Diameter Cutter Below Table: 6"
Maximum Diameter Cutter Above Table: 7"
Router Bit Collet Diameter: 1/4 and 1/2" (optional)
Dust Port Outside Diameter: 4"
Dust Collection Minimum CFM Required: 350 cu.ft/min
Electrical Controls - Magnetic Starter: Yes
Motor Power: 3 HP
Motor Voltage: 230 V
Motor Current: 16 A
Motor Phase: 1 Ph
Height: 23 inch
Width: 25 inch
Length: 43 inch
Net Weight: 331 pound
