Lot of 50 New 14.4MHz TCXO Ham Marker/ REF Microwave

Image Hosting by Vendio
Click to View Image Album

Image Hosting by Vendio
Click to View Image Album

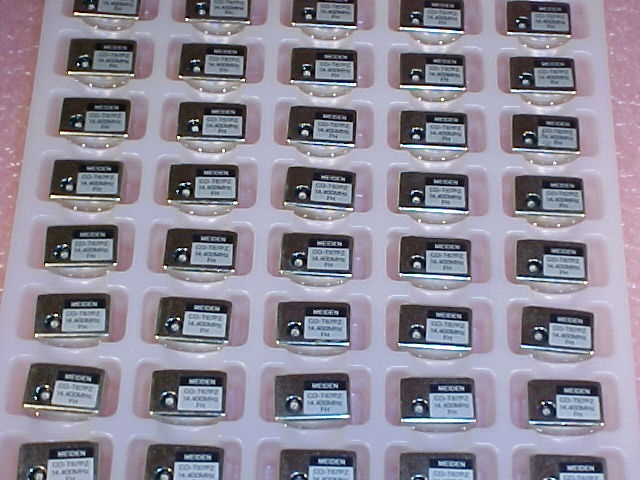

 This is for a lot of 50 (full tray) new Meiden model CO-T67PZ 14.4MHz TCXO oscillators with max of 2.5PPM and typically 1ppm stability from -30 to +70 degrees C. These operate from +3.3v to + 5v and have a clipped sine wave. What is so special about this frequency is it will divide evenly into the following ham frequencies for use as a marker: 144MHz, 432, 1296, 2304, 3456, 5670. 10.368GHz and 24.192GHz for use as a marker. 14.4MHz will also divide evenly into all the low-side injection frequencies for bands 1296 and up when using either 144MHz or 432MHz for the IF frequency. (1296-144=1152) divided by 14.4 = 80 etc. This means you can multiply 14.4MHz up to generate your LO for all the microwave bands. Measured phase noise for this TCXO is -140dBC/Hz @ 10Khz offset. I have locked a Macom PLL brick on 9936MHz (10.368 using a 432 IF) by bringing the output of this TCXO directly into the external reference input of the brick. Temperature stability can be further improved by using a simple oven control circuit to stabilize the TCXO to 50C. To make a simple marker for 144 through 10.368GHz simply run this TCXO into a 74AC00 wired as an edge detector and then into a GALI1 MMIC.

Florida buyers must add 7% (or actual amount for your county) sales tax or mail me a signed photocopy of your Florida Resale Certificate with your payment! I do combine auction winnings when ever possible to save buyers money. I do ask that buyers help keep track of any auction shipments they want to combine and email me for a total when they are ready. I can be contacted at jruggieri3@cfl.rr.com . Fixed Priority S&H quoted prices are for 50 USA states. International Bidders pay actual S&H. Good luck bidding! KI4NPV
