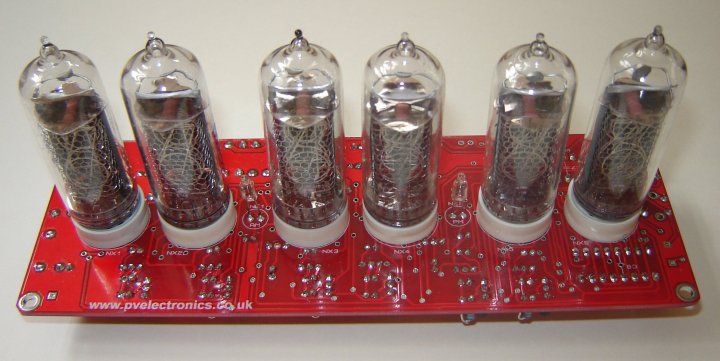

Nixie Tube Clock Kit For IN-14 Nixie Tubes

NIXIE TUBE CLOCK KIT
FOR IN-14 TUBES

Highly Accurate TCXO Timebase
Lithium Cell Backup
Software Release RTC-1

The clock features:


- Hours, Minutes and Seconds display
- Timebase is a Temperature Compensated Crystal Oscillator (TCXO)
- Real Time Clock with Lithium Cell backup of time and all user settings
- Simple time setting using two buttons
- 12 or 24 hour modes
- Programmable leading zero blanking
- Five programmable neon colon settings (Flashing AM/PM indication, illuminated AM/PM indication, both flashing, both on, both off)
- Maintains time during setup mode, eg. When changing between standard time and daylight savings time
- Seconds can be reset to zero to make small adjustments / precisely set the time
- Infinitely programmable night time blanking period to save tubes
- Separate modes for colon neons during night time blanking
- Four display modes: Dim, Bright, Fading digits, Blanked
- Ten different possible fade speeds in fading digit mode

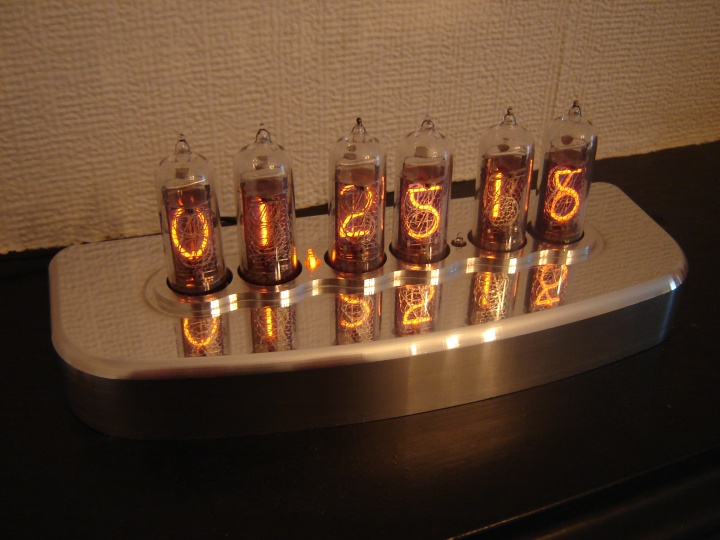

Suggested case for the clock (not included)
(Machined from solid aluminium - available separately)

The use of a precision TCXO chip as the timebase gives supreme long-term timekeeping accuracy of +/- 1 minute per year. Every 64 seconds, the TCXO IC measures the temperature of it's in-built quartz crystal oscillator and adjusts the load capacitance to compensate for temperature effects. Ordinary quartz crystals usually keep 20ppm accuracy or special crystals can be found with 10ppm accuracy. However, this is a theoretical accuracy and PCB layout effects can significantly reduce the accuracy. The DS3231 IC integrates crystal, temperature compentation and real-time clock into a single IC to achieve true 2ppm accuracy over a wide use-temperature range of 0C to 40C (32F to 104F)

The user guide can be downloaded from here

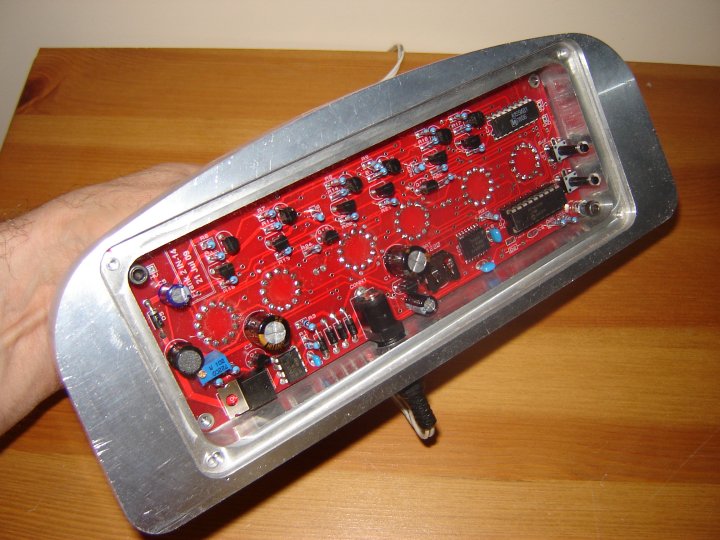

Component side of the pcb

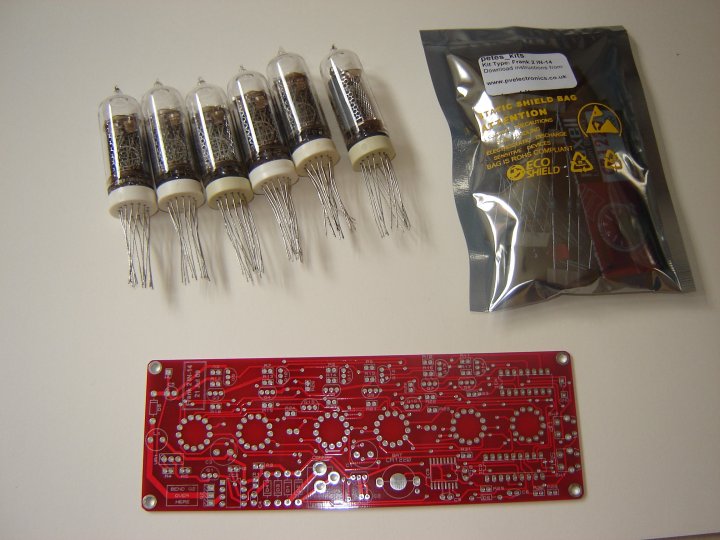

The clock kit is fully inclusive, except for power supply and tubes:

All electronic components are included, except for the Nixie tubes :
All Transistors, Capacitors, Resistors, Diodes, Inductors, IC's etc..
2 X Neon bulbs for hours:minutes:seconds separators
Double sided, plated - through - hole PCB
Fully pre-programmed PIC microcontroller, with socket

Uses AC or DC power supply (9-12V, minimum 250 mA) This is not supplied - It is more economical for the winning bidder to buy a suitable adapter locally, suitable for local power outlet type. Full details of the power supply are provided in the comprehensive documentation, and it is very easy to obtain cheaply, including from ebay.

Typical power supply suitable for the clock

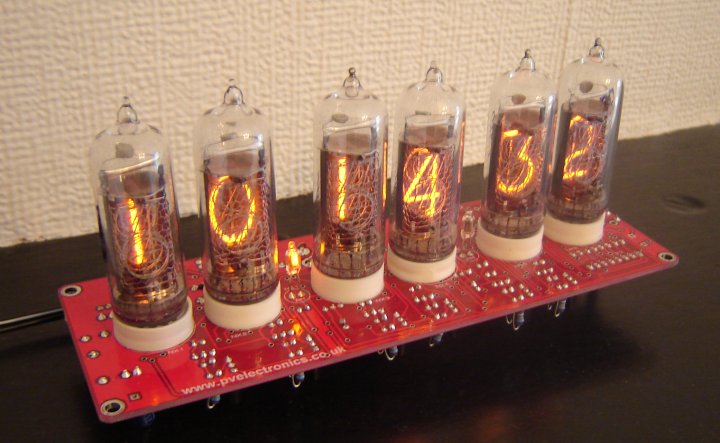

Clock PCB powered up. Tubes are NOT included

The kit comes with (via link to download site) a 21 page fully detailed user instruction guide to assembly. The assembly instructions include many detailed photos, and step - by - step instructions for building, testing and using the clock. The kit uses one surface mount device - the DS3231 TCXO IC as pictured below. The IC is not available in through-hole packaging. The comprehensive instructions explain a simple technique to reliably solder this device. The pitch of the pins is the widest of any surface mount device so soldering in place should be easily within the capabilities of the average electronics hobbyist.

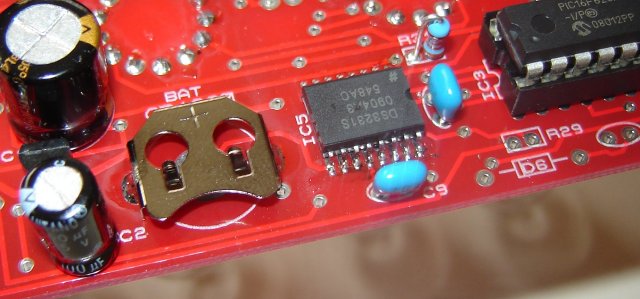

Close-up of PCB showing timekeeping components

The two buttons have the following functions:

SW1: Set / Blank
SW2: Up / Reset Seconds

Setting the time:
Press and hold 'Set / Blank' button for 2 seconds until the minutes flash. Press the 'Up / Reset Secs' button to set the minutes.

Briefly Press 'Set / Blank' again and the hours will flash. Press the 'Up / Reset Secs' button to set the hours.

Briefly Press 'Set / Blank' again to revert to normal clock operation.

Display modes:
Briefly Press 'Set / Blank' button to toggle between display modes:

Dim ---> Bright --->Fading --->Blanked

Resetting seconds:
From normal clock operation, press and hold 'Up / Reset Secs' button for 2 seconds. Seconds will be set to zero, and held until the button is released.

Entering configuration menu:
Press and hold 'Set / Blank' button for 4 seconds.

A set of new tubes can be added to the delivery for
an extra $25 as you go through the paypal checkout
