Item:OP-AMP Assortment (Big Variety - See list, DATASHEETS)

OP-AMP Assortment (Big Variety - See list, DATASHEETS)

Item condition:--
Ended:Nov 16, 200909:55:47 PST
Quantity:
3 lots available (9 items per lot)
Please enter a quantity of $quantity$ or less
Please enter a quantity of 1
Price:US $4.50
Shipping:$3.20US Postal Service First Class MailSee more services

Country:
ZIP Code:
Quantity:
(available quantity 3)
Service and other details:
Service
Estimated delivery*
Price
US Postal Service First Class Mail
4-7 business days
$3.20
*The estimated delivery time is based on the seller's handling time, the shipping service selected, and the payment method selected. Sellers are not responsible for shipping service transit times. Transit times may vary, particularly during peak periods.

 See discounts

Pay only $10.00 shipping for orders of 8 or more eligible items from pbsn6040.
or
$1.00 shipping for each additional eligible item you buy from pbsn6040.

 |  See all details
Estimated delivery within 4-7 business days
Returns:
7 day money back, buyer pays return shipping | Read details
Coverage:
Pay with and your full purchase price is covered | See terms

A reserve price is the minimum price the seller will accept. This price is hidden from bidders. To win, a bidder must have the highest bid and have met or exceeded the reserve price.


Top-rated seller
pbsn6040 ( 4885)
99.9% Positive feedback
Get fast shipping and excellent service from eBay Top-rated sellers.
  • Consistently receives highest buyers' ratings
  • Ships items quickly
  • Has earned a track record of excellent service
See other items
Other item info
Item number:350266349410
Item location:South Central, United States
Ships to:United States
Payments:
History:1 sold
 Share PrintReport item
 Description Shipping and payments
Audio Amplifier IC Sampler Assortment

0919

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

Handy AUDIO Assortment for the DIY'er.
Click on any part number to view the datasheet.

(9) piece Experimenter's
Linear Audio IC Assortment

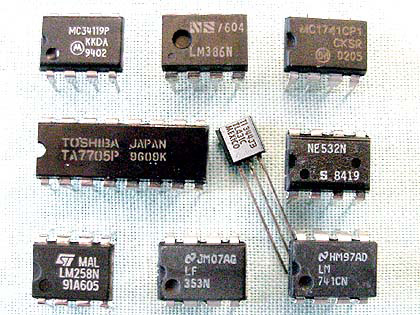

Kit includes (1) each:

MC34119    LM386    TL431

LM741    MC1741    LF353

LM258    TA7705    NE532



Each KIT contains (9) different audio amplifier ICs.
DIP IC(s) shipped in anti-static tube.

Bid for as few as you need or for as many as you want.
EXAMPLE: If enter a quantity of (2) and win, you get (2) sets, (18) pieces total.


MC34119P
Power Amp
  • 500 mW @ 16V
  • Operates on just 2 V
  • Only 2.7 mA Standby
  • Single Supply 2 - 16 V
  • Gain 0 - 46 dB
  • Differential Outputs
  • Mute Mode = 65 µA
  • Low Distortion
  • NO Coupling Capacitors
  • DIP-8
Designed for use in line powered speakerphones, this audio amplifier is great for 3 Volt battery operated projects.


LM386N
Power Amp
  • 325 mW Out
  • Operates 4 - 12 V
  • Only 4 mA Standby
  • Single Supply
  • Gain adj. 26 - 46 dB
  • Ideal for Battery Operation
  • DIP-8.
Designed for use in low voltage applications. The default gain is 20 but can easily be adjusted from 20 to 200. The quiescent power drain is only 24 mW @ 6 V, making it ideal for battery operation.


TL431C
Power Amp

NOVEL application of
this Shunt Regulator

  • 400 mW Out
  • Operates 6 - 36 V
  • Single Supply
  • Simple Design
  • TO-92
Crystal Radio Amplifier
and Phono/Mic Amplifier

Or, use it as an
"Adjustable Zener"
from 2.5 to 36 V


LM741C
Op-Amp, Single
  • Gain 46 dB
  • Split Supply ± 15 V
  • Operates 0° to 70° C
  • Overload Protected I/O
  • Latch-Up Proof
  • Replaces 709C, 748, LM201, etc.
  • DIP-8


MC1741C
Op-Amp, Single
  • Gain 46 dB
  • Low Power, 50 mW
  • Split Supply ± 18 V
  • Operates 0° to 70° C
  • Overload Protected I/O
  • Latch-Up Proof
  • No Freq. Compensation
  • Offset Null Capability
  • DIP-8


LF353N
Op-Amp, Dual
  • JFET Input
  • EXTREME 10¹² Ohm Input Z (Input Impedance)
  • Wide 4 MHz Gain Bandwith
  • Split Supply ± 18 V
  • Low Noise
  • Only 3.6 mA
  • Very Low THD <0.02%
  • DIP-8


LM258N
Op-Amp, Dual
  • Gain 100 dB
  • Low Power, ½ mA
  • Single Supply
    3 - 32 V or
  • Split Supply
    ± 1.5 to ± 16 V
  • 1 MHz Bandwidth
  • Operates -25° to 85° C
  • DIP-8
This Op-Amp operates over a wide temperature range making it suitable for outdoor applications.


TA7705P
Op-Amp, Dual
  • Open Loop Gain = 98dB
  • Single Supply 6 - 16 V
  • I/O Selector Switches
  • Very Low THD 0.035%
  • Very Low Noise
    VNI = 0.9uVrms
  • DIP-16
This dual, low noise Op-Amp has internal switches on both the input and output used to remotely program the gain or select inputs, etc. Examples below.

Schematic 1:
Configured for Input Select
and Feedback/Gain Control

Schematic 2:
Configured for Input Gain
and Output On/Off Control


NE532N
Op-Amp, Dual
  • Gain 100 dB
  • Low Power, 400 uA
  • Single Supply
    3 to 30 V or
  • Split Supply
    ± 1.5 to ± 15 V
  • 1 MHz Bandwidth
  • Operates 0° to 70° C
  • DIP-8
The NE532 is superior to, and a direct replacement for, the more common LM358. It has much better stability and overall performance is improved, especially at V+ of less than 6 V.

DATASHEETS
MC34119 Power Amp, DIP8 (273K PDF)
LM386 Power Amp, DIP8 (253K PDF)
TL431 Power Amp / Regulator, TO-92 (572K PDF)
LM741 Single Op-Amp, DIP8 (206K PDF)
MC1741 Single Op-Amp, DIP8 (85K PDF)
LF353 Dual Hi-Z JFET Op-Amp, DIP8 (598K PDF)
LM258 Dual Hi-Temp Op-Amp, DIP8 (1010K PDF)
TA7705 Dual Op-Amp, DIP16 (433K PDF)
NE532 Dual Op-Amp, DIP8 (129K PDF)

L8D

Check out our other AUCTIONS! Be sure to add us to your Favorites List!

Click here to see more great auctions for Technicians and Hobbyists.

etronic e-tronic hamtronic qba tech
Shipping / Handling discount for most auctions if paid with ONE PAYMENT.
Condition of Goods
Unless otherwise noted above:
NOS or better, clean, unused
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Small parts may be bulk shipped
Manufacturers may vary from picture
