South Bend

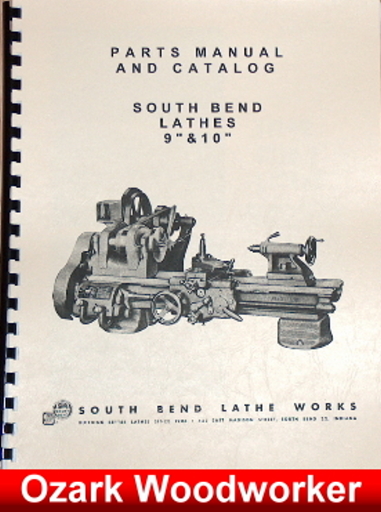

"Parts Manual and Catalog for 9" & 10" Lathes"

Number of Pages: 42

This is a reproduction, not a photocopy, of a South Bend Parts Manual and Catalog for 9" & 10" Lathes. I included a short descriptive catalog to help identify which lathe a person has, because there were many different models. This manual contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams.. This manual will help you with setting up and running a South Bend 9" & 10" Lathe. Don't forget to check out my other items!

Gear Box:

Some of the lathes made for the time frame covered by this manual were made without gear boxes for threading, but some did have a gear box. Below is a picture of the gear box that was used in this time frame.

Contents:

Catalog

Catalog 9-HE......................................................................1-6

Maintenance

Introduction............................................................................7

Headstock Spindle Sleeve Bearings...................................8-10

Assemble Headstock.......................................................10-11

Checking and Lubricating Headstock.....................................11

Back Gear and Eccentric Shaft..............................................12

Operations

Thread Gears for 27 Threads Per Inch.............................13-14

Adjusting Toggle Cam Apron Clutch.....................................15

Remedy a Sticky Clutch........................................................16

Cutting Tool Data..................................................................17

Cutting Bit Grinding Block.....................................................18

Parts Lists and Diagrams.............................................19-40
