PC Text Graphic Video Producer Mixer With Overlay

PC VGA To Video Message Generator Mixer With Overlay Function

This video message generator provides high quality video output and cost effective method of combining computer-generated text messages and graphics into existing video for applications such as subtitling, captioning, advertising, logo insertions and adding computer data to video. Its overlay and mix functions help key computer text messages and graphics onto video.

Give your home movies and business presentation a boost by adding text and graphic to your home or corporate video now !

Display Computer Text Messages / Graphics On TV Video

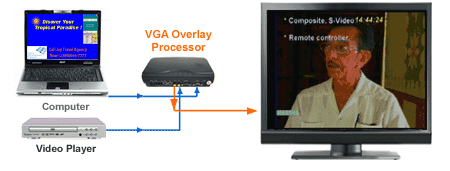

This equipment helps synchronize computer-generated texts/titles/captions or graphics with other video feeds from media sources like DVD VCR player, cable TV box, satellite receiver, set top box, video camera, media player or any other video source for smooth playback, recording or further video production.

How it Works
To create video messages, use the supplied captioning software for:

• Writing up text messages.
• Importing graphical images from a digital camera or scanner to the layout page for composing first before publishing them.
• Adding company logos or keying rolling/static text titles or messages for advertisement to appear on videos.

This captioning software also allows for keying, sizing and positioning to be done from any PC running Windows 98/ME/2000/XP/Vista. It provides easy subtitling with comprehensive selection of font styles, font colors, graphics and backgrounds.

This hardware and software combo system works perfectly for many media centers to create informational video for corporate, digital signage, home or commercial applications. Also very popular application for churches and bible study groups who need to add computer-generated text such as song lyrics, titles, menu, descriptions to the live video content.

Also a perfect tool for DIY Karaoke content by creating special visual effects like Icons, pictures, graphics, titles, subtitles, lyrics, deception, time clock, date, etc to the music video for private video production.

Multiple Video Modes
This computer video scan converter offers a number of features and mixer modes, which can be used in conjunction with the included software.

The selectable 4 operation modes supported are:

1. VGA mode to oversee what the computer content alone on TV or video monitor display before being overlaid/mixed.
2. Video mode to see the original external video input alone on TV.
3. Mixer mode to see the computer content semi transparent and laid on top of the external video input signal.

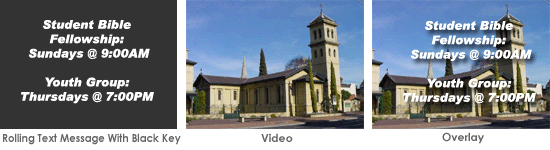

4. Overlay mode with black or blue key option. When using the blue or black key for background at overlay mode, the blue/black area on the computer screen will be filled up with input video on the bottom layer.

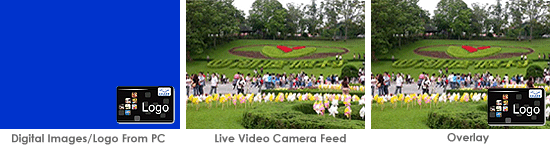

Differences between Mixer and Overlay modes. Mixer mode shows both the computer text messages and input video together while the computer texts and images are presented semi transparent through the top of the video signal. Overlay mode removes all black or blue background and displays the remains on top of the video image in solid color (non transparent). So if you have text or images over a black or blue background, the only portion to be shown on top of the video will be the text or image part. So visually the text message or computer graphics are inserted onto the video.

Converts Computer Screen Into TV Video Signal
This unit is also served as a standard PC to TV video scan converter, providing high-quality video output with advanced filtering technology built in to remove flickers during the scan rate conversion.

Enjoying great entertaining experience when playing pc video games or DVD/VCD movies from computer and watch them on a big screen TV display or projector.  Also a cost saving and easy way to use big screen TV set for video display. Users can simply use any TV, projector, video wall or plasma screen in the meeting room to show audience the presentation prepared from the computer screen or record computer session by using video recorder.

Detailed Presentation

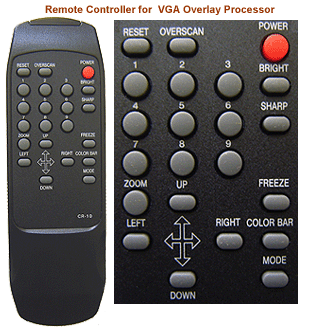

Other user-friendly features including Pan, Position, Zoom functions for more detailed presentations. The proprietary 9-area screen zoom selection. There are 9 buttons on the remote controller representing 9 sub-areas of the full screen. Press any one of the buttons to select its corresponding sub-area (about 1/9 of the VGA screen size) to be enlarged into full screen display on TV for more detailed presentation or special emphasis.

Multiple Video Outputs + VGA pass-through
Video outputs are in either NTSC or PAL standards and available via Composite RCA and S-Video mini-DIN connectors. This unit also supports VGA loop-through so users can have the PC video screen displayed simultaneously on both VGA monitor and TV set at the same time for ease of control what you do with your application for the audience !

Built-in Color Bar
Its integrated Color Bar testing screen for users to easily check colors and calibrate the TV or monitor's color elements like contrast, brightness, etc. to maintain best video quality.

Auto-save function for video adjustments made
When you finish the setting of this unit, all the video settings and adjustments you did before will be automatically memorized. No need to reset again when you use it next time.

• High quality computer graphic to TV video scan converter with overlay and mixer support.
• Converts computer screen into Composite and S-Video outputs plus computer monitor loop-through.
• Featured with VGA overlay function for placing computer-generated text, graphics and images onto existing video.
• Supports underscan and overscan modes to ensure full-screen computer screen display on any TV set.
• The supplied captioning software provides easy subtitling with comprehensive selection of font styles, font colors, graphics and backgrounds from any PC running Windows 98/ME/2000/XP/Vista.
• Supports Overlay, Mixer, VGA and Video modes.
• Selectable keyer of blue or black Chroma key background color.
• Supports keying, sizing and positioning.
• Supports picture freeze, zoom and pan functions.
• Simultaneous computer screen display on both TV and computer monitor.
• Supports video output in both PAL/NTSC standards.
• Supports manual push-button operation or convenient operation done via the supplied IR remote controller.
• Full 24-bit signal processing with 16 million colors.
• Plug-and-play design, no software drivers required.
• Cross-platform compatibility for Windows-based PC or Apple-based Mac systems.
• Built-in color bar generator.
• Digital flicker reduction

• Video Titles / Sub Titles / Caption Text Generator: Add PC text/graphic into video with Icons, pictures, graphics, titles, subtitles, lyrics, deception, time clock, date, etc for special visual effects.

• Education and business presentation: Add text and computer graphic to corporate or training class video for presentation or conference room use.

• CCTV security surveillance: Merges computer-based DVR output with TV pictures for semi Picture-in-Picture effect.

• Commercial or home video production: Great for providing caption or titles for individual video movies.

• Digital Signage: Using computer imaging tool for preparing media content for all electronic bulletin board or information kiosk display.

• Home Entertainment: Enjoy PC games, internet videos or DVD movies on TV. Create your own Karaoke video with lyrics using your computer.

• Class rooms/ training or any other media presentation events.
• Computer video or internet video broadcast.
• Multimedia events for classrooms and bible software output for  churches
• Computer video recording on VCR/DVD recorder
• PC video game output to TV for home entertainment.
