Powerful 1200W Max Wind Turbine Generator 24V Hybrid

Technical Specifications:

1. Brushless, Strong Neodymium magnet PMA, the unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate more electricity.
2. Advanced aerodynamic braking by patented nylon/reinforced fiber glass blades.

3. Electromagnetic over-speed control, no more problematic mechanical furling.

4. Integrated solar-wind hybrid power generation.

5. Innovative low maintenance two-moving-part system design.
6. Easy to Install, Light Weight and highly reliable.

7. Generator: The generator is built using high-performance rare earth neodymium permanent magnets, so the alternator is compact and light weight with a high power generating efficiency. Generator housing is made using precision cast technology from high strength aluminum to assure a high quality finish. It is designed for various working conditions such as severe climate, sand and salt corrosive environments and marine usage.
8. Rotor Blades: Advanced airfoil design to capture maximum wind energy. Made of mixed nylon and reinforced fiber glass materials using the latest advanced thermoplastic engineering and precision injection molding technology for high strength, flexibility and aerodynamic braking. The blades have exceptional consistency and aerodynamic outline with a mass distribution that ensures the rotors operate with minimal vibration.
In summary, HYenergy wind turbines are the most well built, reliable, most efficient and cost-effective small wind turbines available on the market today.
The result: greater energy production yield and lowest ownership cost.

Design Features

Advanced over-speed control mechanism vs. old style furling

Problems with old style furling:
Old style furling works well in an ideal, wind tunnel test environment. Realistically, wind speed and wind direction changes frequently and mechanical furling doesn’t have instantaneous response to actual changes of wind status. Especially in bad weather conditions, small wind turbine furling components wear out quickly, therefore, increases maintenance costs and shorten wind turbine service life or causes system failure.
Most of old style furling based wind turbines have three moving parts. It is the moving parts for mechanical over-speed protection that wear out and require a lot of maintenance. Operation of furling based wind turbines would lead to mechanical abrasion, cause vibration, malfunction, and failure of the wind turbine and other devastating results in the long run.

The rule of thumb for a reliable wind turbine is that the fewer the moving parts, the more reliable the wind turbine is.

HYenergy Solution:
HYenergy wind turbine adopted Innovative over-speed control so it improves the reliability by abandoning the moving parts for mechanical over-speed protection and minimizing the moving parts to only two.

Innovative over-speed control design of the HYenergy wind turbines:

HYenergy wind turbine speed limitation abandoned the traditional failure-prone mechanical furling system and solved safety and reliability problems facing most small wind turbines. Advanced speed limitation of HYenergy wind turbine is achieved through advanced electromagnetic speed limitation supplemented by aerodynamic speed limitation by blade deformation. Electromagnetic braking is used in combination with Aerodynamic braking to reduce the rotational speed of the generator.
Combination of Electromagnetic braking and aerodynamic braking maximizes energy capture by extending HYenergy wind turbine’s operating speed range into higher speed winds which are missed by the old style wind turbines.

1. Electromagnetic speed limitation:
Controller will monitor the wind generator rotation through the wind generator output voltage and frequency, and will timely control wind generator rotation by generating reverse reluctance torque if necessary, according to different wind conditions and battery status. Electromagnetic control features quick response, high reliability and therefore ensures the entire control system to be highly reliable.

2. Blade aerodynamic braking:
In high wind speed conditions, patented blades will generate a reverse reluctance torque, so that the blade efficiency falls and the blade rotation speed starts to decline. With the continuing reluctance torque, blade rotation speed is limited to a certain range to prevent damage to the wind turbine blades.

Higher performance at low wind speed
Problem with small wind turbine system on the market today
The most challenging problem facing small wind turbine systems is that power output is very low or close to nothing under low wind condition. The wind speed in most locations don’t stay at rated wind speed all the time, wind turbine actually operates at wind speed lower than rated wind speed at most of the time. In order to have good overall energy output, it is critical for small wind turbine to output as much as power at low wind speed.
HYenergy Solution:
Strong Neodymium magnet PMA, unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate electricity at low wind speed. HYenergy wind turbine system components such as wind generator and blades are designed to output more electricity at low wind speed than other small wind turbines on the market today. HYenergy wind turbine system’s excellent power output under low wind speed results in greater energy production yield and lowest ownership cost.
Wind-solar hybrid power generation wind turbine system

Problem with single source renewable energy system:
1st Generation single source renewable energy systems such as solar systems or wind turbines don’t use renewable energy efficiently. Wind turbines creates less output during the summer, whereas during the winter the solar panels will produce less output.

HYenergy Solution:
Our hybrid solar-wind turbine integrated wind and solar power sources capture the most energy in all conditions. Since solar and wind energy availability differs by locations, seasons and climates, solar and wind energy can be mutually complementary in that solar and wind hybrid systems make full use of wind and solar energy together to generate as much power as possible compared to a single energy source for power generation. A solar & wind hybrid system is more cost-efficient than wind or solar alone.

Easy-to-install, light weight, compact, reliable and maintenance-free wind turbines, designed for both land-based and marine applications.

Problem with old style wind turbine systems:
Most old style wind turbines are heavy weight with unpredictable reliability, hard to install and require lots of maintenance. Due to the fact that most installations are in very remote and inaccessible locations, the old style systems make regular maintenance costly and sometimes impractical.

HYenergy Solution:
HYenergy  wind turbine's maintenance free design has a minimum of moving parts with inherent reliability. Our light weight, compact die-casting aluminum alloy generator design makes installation very easy. Rotor blades built with latest advanced thermoplastic engineering and precision injection molding technology is durable and efficient.

HYenergy wind turbine components built with advanced technologies
Generator:
Generator: The generator is built using high-performance rare earth neodymium permanent magnets, so the alternator is compact and light weight with a high power generating efficiency. The unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbines can generate electricity at low wind speed. The generator features class B insulation, IP55 class protection, and is designed with a sufficient cushion of overload to ensure overall wind turbine reliability.

Generator housing is made with precision cast technology from high strength aluminum to assure a high quality finish. It is designed for various working conditions such as severe climate, sand and salt corrosive environments and marine usage. Aluminum die cast alloys can withstand the highest operating temperatures of all die cast alloys. Ideal for demanding environments, it offers high strength and rigidity along with good corrosion resistance and heat dissipation.


Rotor blades:

Patented Blade design vs. traditional hand made fiber glass blades:
Our Blades are made with the latest thermoplastic engineering and injection mold technologies. The blades are made of mixed reinforced fiber glass and nylon materials. These manufacturing technologies ensure the highest strength, flexibility of blades and consistency of the blade shapes. The blades will automatically slow the turbine in strong winds and reduce noise.

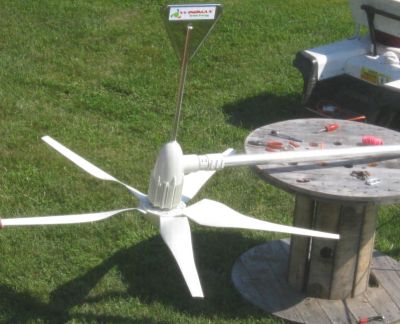

A set of 5 Blades designed to capture as much wind energy as possible. Patented airfoil blade design makes the system run much more efficiently and the rotor blades are made with the latest advanced thermoplastic engineering and precision injection molding technology.
The blades have exceptional consistency and aerodynamic outline with a mass distribution that ensures the rotors operate with nearly no noise and minimal vibration.
The blades feature lower start-up and cut-in speed and begin producing power at 2 m/s or 4.5 mph.

Solar/Wind Hybrid Charge Controller:
This multifunctional Hybrid controller combines the functions of AC to DC rectifier, load control and dump load control for wind and/or solar systems. It eliminates the need for separate rectifier, solar charge controller and wind turbine controller. It is the most cost effective solution for renewable energy systems.
Separate dump loader included

Main Features:

High Reliability: Separate dump loader and efficient ventilation design ensure reliable and efficient operation.
Great for hybrid wind/solar system, hybrid controller can support battery charging from simultaneous wind generator load and solar load.
Charge Control: Constant voltage series PWM regulation to provide highly efficient battery charging increase battery capacity and life.
Built in "ON/OFF Switch" to connect the wind turbine or solar panels to the controller.

Load control and diversion control: The controller has over-charge protection, short-circuit protection, pole-confusion protection and automatic dump-load function. It is reliable with a highly efficient, long service life.
Uses advanced technology and automated production to provide exciting new features at a competitive cost.
