RFID Door Lock Access Control Water Resistant Combo 1P

GR: FGPRBMT KWACKYQT

IT: LCKOMBOPP

DESCRIPTION

We ship direct from USA

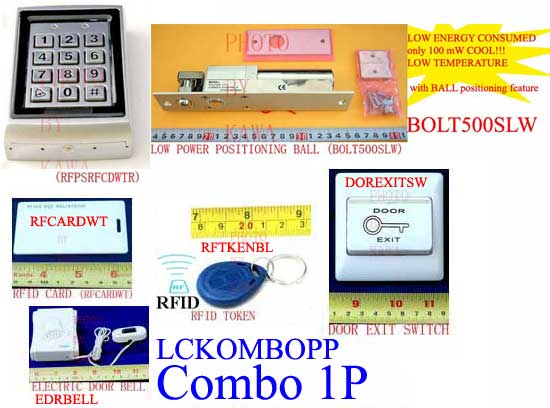

Picture 1:  What you see above is what you get.

PRODUCT DESCRIPTION

Offered here is a ONE (1) new good quality   RFID Access Controller & RFID Card that permits door access via password or RFID card or both.

Package comes with

1. Water resistant RFID Access Controller made of stainless steel, ideal for outdoor use.

2. PDF manual will be emailed to buyer after purchase.

3. One RFID Card (click icon to buy more)

4. One RFID Key Chain (click icon to buy more)

5. Electric door Bell Requires 2 pcs of AA batteries not included.

6. Electric door exit switch

7. Electric door deadbolt / strike  with NC (Normally Closed / Fail Safe) function.

KEY FEATURES OF ACCESS CONTROLLER  :

Options to open door includes:
1. Password Only

2. RID Card  Only (RFID token ( or  ) you can register and deregister various RFID Card/passwords ( i.e. if you need to deactivate someone's access)

3. Password & RFID Card /token (click icons to purchase)

Three user levels: Normal user, Secure user and Master user

Three operational modes: Normal mode, Bypass mode and Secure mode
"Code search" feature that helps make maintaining user codes easier

Input for Request to Exit (REX) button

Comes with mounting template for easier installation

Solid stainless steel Case and Back are all tamper proof; in case of tampering (the case is opened or removed from the wall), the unit will emit an alarm electrical signal to optional attached bell/chime/siren or strobe device to warn about tampering by an intruder.  The siren time can be programmed to last 0 to 9 minutes.

TECHNICAL SPECIFICATION
· User capacity : 500.  You can register and deregister various RFID Cards/passwords ( i.e. if you need to deactivate someone's access)
· Operating Temperature : -10C - 60C
· Operating Humidity: 10%-90%
· Card  reading proximity: 5 to 15cm in most instances

· Operating Voltage Range (from a regulated power supply) : DC 12V to 24V

· Operating Voltage Range (from a transformer) : AC 16V

· Max input current (not including attached device): standby is 40mA, max is 130mA

· Water resistant RFID Access Controller made of stainless steel, ideal for outdoor use.

· Size: 120(L)*76(W)*27(H)mm  or 4.72" * 3" * 1"

· Weight of controller = 410gram or 0.9LB


===============================================

The following is specifications for the electric deadbolt  included in this listing:

BRAND NEW door electric deadbolt / strike with NC (Normally Closed / Fail Safe) function.

Face plate: 205L x 35W x 40H (mm)

Strike: 90L x 25W x 2H (mm)

Cover Plate: 215L x 40W x 0.7H (mm)

Bolt: 16mm diameter, stainless steel 16mm throw

Material: Aluminum panel with strongly style and Stainless steel

Voltage: DC 12V

Current: Start 950mA / standby <=100mA (SUPER LOW HEAT!!!)

Patent Designed: Low temperature

Ideal for Wooden / glass / metal / fire proof door

Authority Certification: CE approved

Signal Output: Door status sensor

This item is rated: NC function -- Normally Closed -- Fail Safe (Locked when energized).

Safety function: Built-in voltage spike suppressor

Please note if you need a more advance version that will send monitoring signal to your access control unit as well as the ability to guarantee the bolt will come out / lock at the correct position (via a positioning ball) and not prematurely, then buy this deadbolt

(code:YHBOBSNC  / click on this icon) :  Please note that not all access controller supports this function, you must check with your access controller manufacturer before making this purchase decision.

Cable connection instruction:

1. Black cable: Connects the black cable to ground of your intelligent power supply.

2. Red cable: Connects the red able to NC terminal of your intelligent power supply.

ATTENTION 1: Please note that electric strike can connect directly to access control unit such as or  listed below, but we do not suggest buyer to do so because it will shorten the lifespan of your access control unit due to high current passing through the electric strike.  Instead, you should connect the strike directly to an intelligent uninterruptible power supply (UPS) (Please click on icon   to buy it)   that has NC/NO output. Make sure your UPS is "intelligent" meaning that it has NC or NO power output and can receive "door open" signal input from your access control.

ATTENTION 2: Normally Opened (NO) or Fail-secure rated electric strike remains locked during loss of power supply.  Normally Closed (NC) or Fail-safe rated electric strike requires power to stay locked. When power is lost (such as a blackout), NC or fail-safe Electric Lock Strikes will remain unlocked until power is restored.  Electric Strike that is NO rated may not be compliant with your local building / fire safety code.  We personally feel that NC rated electric strike is safer.  Buyer should check with their local safety code before making decision to buy a NC or NO rated electric strike.  In order to ensure that power supply is not intentionally lost (in the event of theft/burglary), we suggest buyer to buy an Uninterruptible Power Supply shown below.

For the above item to operate normally, you need a complete set of related items/accessories as shown in the following figure (click on any of the icons below to purchase them).  They are all compatible with one another.  Choose one item from each column.

Access Control Unit		the access key (from outside)		the access switch or panic/emergency access switch (from inside)		Uninterruptible  Power Supply (UPS)		the electric lock / strike		Door Bell and Theft / Break-in Alarm
1.  2.  3. 4. 5.		1.   2. 3.   4. Password
