Up for bid:

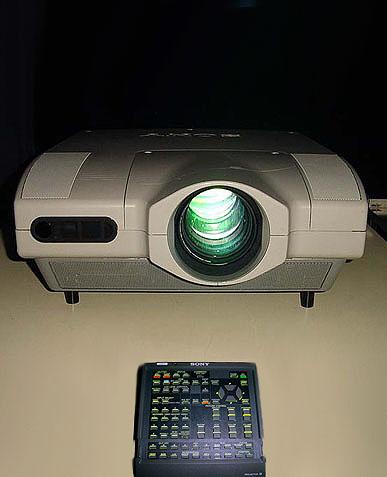

SONY VPL-FE100U 3LCD Projector

Original Set-up Remote Control included

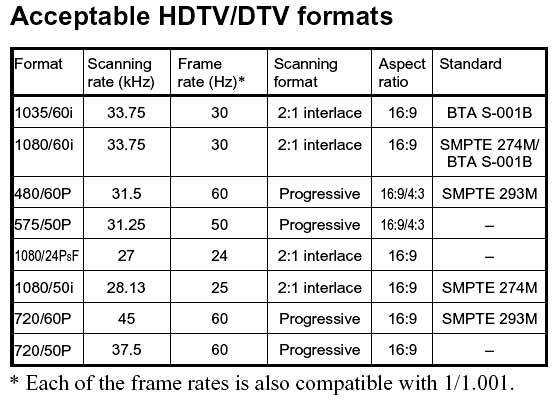

Wide range of HDTV and DTV signals Native SXGA Resolution Three 1.8-inch Sony SXGA LCD panels  Support of signals up to UXGA Outstanding brightness of 3500 ANSI Lumens Sony's unique Quad-Lamp light source 3-D Digital Gamma Correction Sony DRC (Digital Reality Creation) technology DRC generates video pictures with effectively four times the resolution of that from a conventional video signal MultiScan Capability Floor or Ceiling Installation NTSC / PAL / SECAM / NTSC4.43 / PAL-M (automatically selected) VPLL-3050 1:2.0 Fixed Long Focus Lens installed

Working Order

   7-Day Working Order Guarantee

 FREE SHIPPING via UPS Ground service. FULL insurance included

This unit is in working order, good cosmetic condition and totally clean (included the filter cooling fan). It only has some scratches on its top cover which do not affect its excellent overall shape. Its "long throw" lens is free of scratches or fungus. The projector comes with 4 lamps (installed) in excellent condition. The light source of the VPL-FE100U incorporates four lamps so that even if one lamp fails, the projector will still continue to function. I am including an original brand new Sony projection lamp sealed in its box, just in case one of the four lamps needs to be replaced in the future. This projector comes with a Fixed Long Focus Lens installed for long distance projection (please, see one of the supersized Tables below)

I am also including in this great auction:

• Original Sony full-setup wireless/wired Remote Control for all the functions of the projector. This Remote Control will be delivered with four NEW Duracell AA batteries installed. This wireless Remote Control can also be used as a wired remote by plugging the 12-foot cable (included in this auction) to the projector in case you do not want to use it with batteries.
• HD D-sub 15-pin to BNC x 5 cable to connect a computer to the projector
• BNC to BNC F/F cable
• BNC to A/V M/M adapter
• Remote Control cable
• A/V (Y-R-W) to A/V (Y-R-W) cable
• A/V to BNC adapter
• S-Video cable
• AC Power cable
• New / Sealed Philips S-Video and Stereo Audio cable. Digital signal transfer. 24K Gold Plated Connectors.
• Operating Instructions recorded on a CD (pdf)

 SPECIFICATIONS

OPTICAL

Projection system: 3 LCD panels, 1 lens projection

LCD panel: 1.8-inch TFT LCD panel, 3,932,160 pixels (1,310,720 pixels x3), with Micro Lens Array

Lamp: 120 W UHP lamp (x4)

Light output: 3200 ANSI lumens*1 (typical)

Projection picture size: 40 to 500 inches (viewable area, measured diagonally)

GENERAL

Color system: NTSC/PAL/SECAM/NTSC4.43/PAL-M (automatically selected)

Resolution: Video: 600 TV lines. RGB: 1280 x 1024 pixels

Scanning frequency: fH: 15 kHz - 100 kHz. fV: 40 Hz - 120 Hz

Display area: >6.4 μsec

Speaker: 5 W stereo

Power requirements: VPL-FE100U: AC 100 to 240 V, 50/60 Hz. (UL listed for AC 120 V operation only)

Power consumption: VPL-FE100U: 770 W (Max.), 15 W (Standby)

Heat dissipation: 2628 BTU

Dimensions: 562 (W) x 237 (H) x 649 (D) mm (22 1/4 x 9 3/8 x 25 5/8 inches)

Mass: Approx. 34.5 kg (75 lb 14 oz) without lens

Operating temperature: 0 to 40°C (32 to 104°F)

Operating humidity: 35 to 85% (no condensation)

Storage temperature: -20 to 60°C (-4 to 140°F)

Storage humidity: 10 to 90%

INPUTS/OUTPUTS

VIDEO IN:

Composite video: Loop -through BNC 1.0 Vp-p ± 2 dB sync negative, 75 ½

S VIDEO IN:

Y IN: BNC 1.0 Vp-p ± 2 dB sync negative, 75 ½

C IN:  BNC Burst 0.286 Vp-p ± 2 dB (NTSC), 75 or 0.3 Vp-p ± 2 dB (PAL), 75 ½

Y/C IN: Loop-through Mini DIN 4-pin

Y (luminance): 1.0 Vp-p ± 2 dB sync negative, 75 ½

C (chrominance): Burst 0.286 Vp-p ± 2 dB (NTSC), 75 or 0.3 Vp-p ± 2 dB (PAL), 75 ½

AUDIO IN: Phono, stereo, 500 mV rms, impedance more than 47 k½

INPUT A

Analog RGB/Component: BNC x 5

R/R-Y: 0.7 Vp-p ± 2 dB positive, 75 ½

G: 0.7 Vp-p ± 2 dB positive, 75 ½

G with sync/Y: 1.0 Vp-p ± 2 dB sync negative, 75 ½

B/B-Y: 0.7 Vp-p ± 2 dB positive, 75 ½

SYNC/HD

Composite sync: 0.6 – 8.0 Vp-p high impedance, sync positive/negative

Horizontal sync: 0.6 – 8.0 Vp-p high impedance, sync positive/negative

VD

Vertical sync: 0.6 – 8.0 Vp-p high impedance, sync positive/negative

HDTV (Y/PB/PR):         BNC

Y:             1.0 Vp-p ± 2 dB positive, 75 ½,

Tri-level sync: ±0.3 Vp-p

Bi-level sync: 0.3 Vp-p

PB/PR:        ±0.35 Vp-p ± 2 dB positive, 75 ½

HDTV (GBR):             BNC

G with sync: 1.0 Vp-p ± 2 dB, 75 ½,

Tri-level sync: ±0.3 Vp-p

Bi-level sync: 0.3 Vp-p

B/R:          0.7 Vp-p ± 2 dB positive, 75 ½

AUDIO IN: Phono, stereo, 500 mV rms, impedance mor than 47 k½

AUDIO OUT: Phono, Max. 1 V rms when input is 500 mV rms, impedance more than 1 k½

INPUT B/C: Open for optional IFB board

CONTROL S IN / Stereo mini jack 5 Vp-p,

PLUG IN POWER: Plug in power DC 5 V maximum output 60 mA

CONTROL S OUT: Stereo mini jack 5 Vp-p

REMOTE

RS-232C/ RS-422A*2: D-sub 9-pin (female)

PJ COM*3: D-sub 9-pin x2 (female)

TRIG:        Mini jack

Power ON : 12 V, output impedance 4.7 k½

Power OFF: 0 V

Please, take a look at the detailed and supersized pictures below
