RF Color Video and Audio Modulators for TV Channel 3 or 4

0522

Combine AUCTIONS to Reduce Shipping / Handling Costs
Fast e-Mail
Fast Shipping
Guaranteed Good-on-Arrival

Click here to see more auctions for HAMs, Experimenters and Engineers.

VHF RF Modulator
put B&W or Composite Color Video and Audio
on TV Channel 3 or 4
Direct Replacement for many VCR's
and Video Games (SEGA)

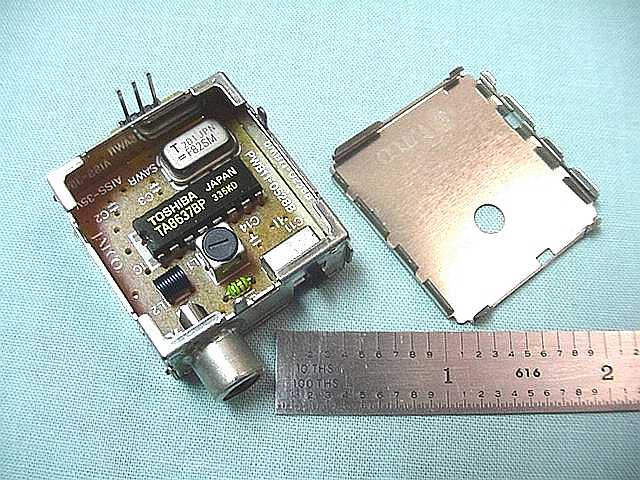

Fully Shielded Assembly incorporating
Toshiba's TA8637 All-In-One IC

Analog Modulators are compatible with NEW DIGITAL TV(s) with an NTSC tuner.

Mfr. - JALCO # MGB3-VU3401
OEM part for SEGA Video Games
SEGA #200-5118-01, YAA21-0388
Toshiba IC TA8637

A real experimenter's delight. Mount in a box or inside your TV. Save $$$$

  • Some DVDs, VCRs, picture or surveillance cameras and camcorders don't have TV RF signal output jacks.

  • Some DVDs, VCRs and TVs don't have direct audio and video input jacks.

This tiny, easy-to-wire analog RF modulator brings them together.

Use with subminiature surveillance cameras.

Price is for (1) modulator.

Features:
  • Produces standard NTSC Color TV signal with Audio
  • Works with all TV(s) with an NTSC Tuner - even New DIGITAL Sets
  • Single-Chip design means a sharp picture with clear audio

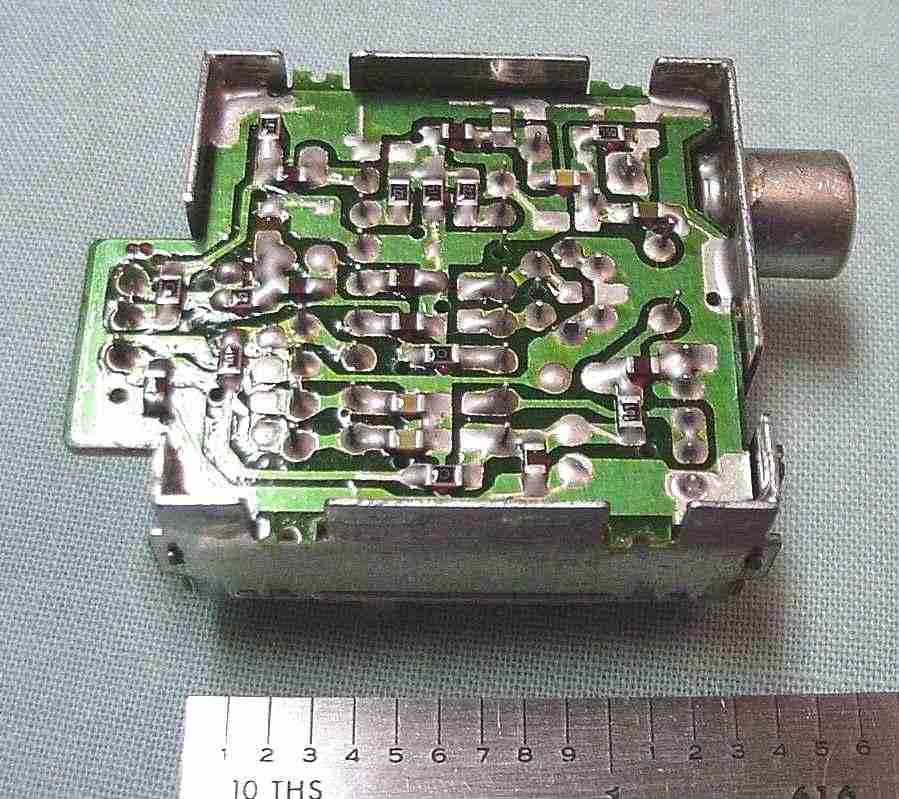

  • Fully shielded PCB assembly for a clean and stable output signal
  • Slide switch selects TV channel 3 or 4
  • Dual SAW Resonator for channel frequency precision
  • Only 5 VDC power required
  • Standard RCA output jack - connects to TV antenna jack
  • Accepts composite color video + audio from DVD, VCR, camcorder, digital camera, etc.
  • Full IC Datasheet: TA8637 (309K PDF)

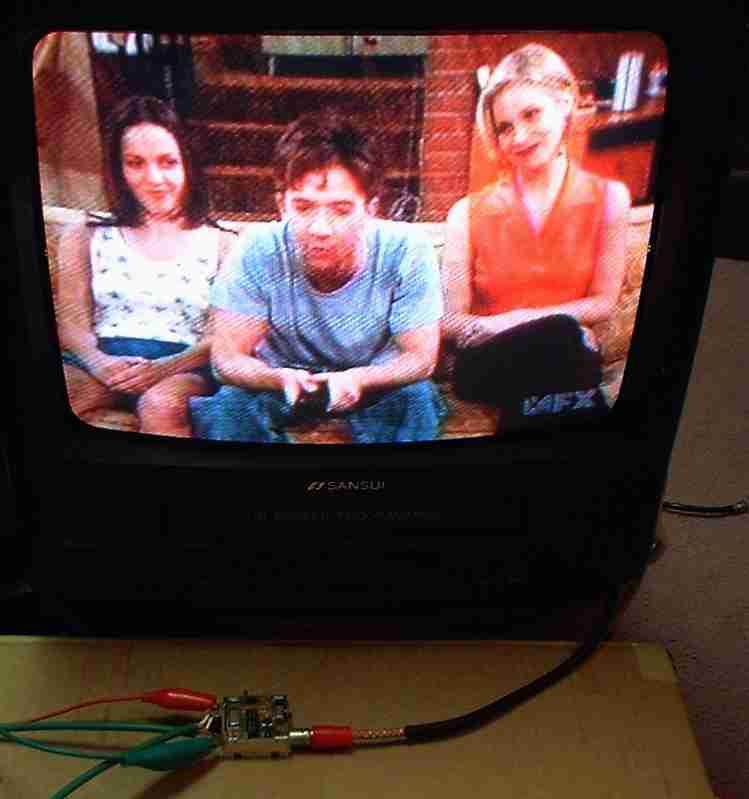

Below are examples our VCR Composite Color Video output (previously recorded from an analog cable channel) applied to the modulator. The modulator output was connected to the TV's standard 75 ohm input jack. You can't hear the audio but it worked perfectly too.
The modulator's analog inputs are sensitive. I used a pair of 1K Ω trimmer pots to adjust my VCR's video and audio levels.

The picture produced with a direct connection to a DVD player, video game or digital camera will be broadcast quality.

Experienced technicians will find hook-up a snap. This listing has all the information you need.

3D FUN for ADVANCED VIEWERS only

Note: This doesn't have anything to do with the auction. It's just for fun. Skip this section if you don't want to have some fun.

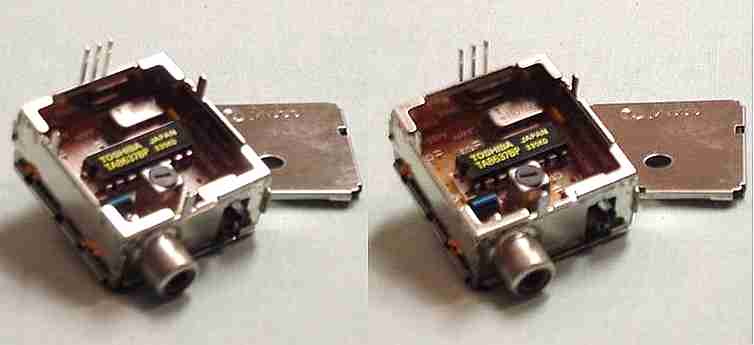

These two images represent a three dimentional (3D) view of the RF modulator assembly. The pictures are similar, but were actually taken from two different positions, approximating the spacing of your left and right eyes. In other words, the picture on the left is what your left eye would see and ditto for your right eye. Special viewing equipment helps, but is not at all necessary to see the composite 3D image.

I guarantee that once you get the hang of it, you'll understand how really very simple it is to see the 3D image.

Here's a simple method:
With your left eye closed, position your right hand so you can see the full right image with your right eye, but block the left image totally. Hold that. Now, with your right eye closed, position your left hand so that your left eye can only see the left image. Double check each eye separately a couple of times to make sure that they can only see their respective image. Now the tricky part. Open both eyes and focus. You just have to practice. I can't help you any more at this point. Once you trick your eyes to focus on the two pictures as one image, you will see a single composite 3D image. Honestly!

RFM-1

Check out our other AUCTIONS! Be sure to add us to your Favorites List!

Click here to see more great auctions for Technicians and Hobbyists.

etronic e-tronic hamtronic qba tech
Shipping / Handling discount for most auctions if paid with ONE PAYMENT.
Condition of Goods
Unless otherwise noted above:
NOS or better, clean, unused
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Small parts may be bulk shipped
Manufacturers may vary from picture
For International bidders only:

We ship to US ZIP Codes ONLY.
We Do NOT ship International.
We Do NOT accept International PayPal.
