Brand New –
Latest Model (Pan/Tilt 270°/120°)
2.4GHz
Remote Controlled Pan and
Tilt Video Camera
Audio + DAY and NIGHT VISION + COLOR
+
2.5” TFT LCD
Monitor with remote control
The ONLY and LATEST MODEL system on the
market that offers Pan & Tilt. Now One Camera Can
Easily Cover the Entire Room. Yes, you read that right... the high-tech
handheld monitor can actually Pan and Tilt the camera! With other systems if the baby rolls out of view, the
camera is no longer seeing anything. This system solves that problem forever.
Customer who bought this Pan/Tilt baby monitor always wondering why not all the baby monitor has this Pan and Tilt function.
One of the neatest COLOR
"baby monitor" camera sets available today! 10 infrared illuminators
see in total darkness for up to 16 ft.! (See actual picture below). Wireless
battery operated remote pan/tilt LCD monitor controller allows for an
incredible 270
degree horizontal
rotation angle and 120
degree vertical
rotation angle. 2.5"
LCD-TFT monitor
insures excellent picture quality. Built-in audio lets you know when baby is in
need. A/V output allows for recording or viewing on TV or Monitor.
Additional New Features comparing to the
original models:
- Wider Pan/Tilt degree, so it can cover three times of the area compare to the older model. (270°/120° vs 180°/60°)
- Power saving mode – you can shut off the LCD,
and have AUDIO ONLY mode.
Our Default Model is for USA/CANADA market, which has USA power plug, voltage and NTSC
A/V output
We also carry European and UK
model, which has European or UK
power plug, voltage and PAL A/V output accordingly.
Warranty:
We, 4UCam.com located in California, provide 90
day warranty.
We warrant this item not the factory!!! Very important! Watch
out for factory warranty. Ship your defect product back to China
factory will cost more for shipping the product back and forth then you paid
for the item, not to mention the time it takes.
We are 4UCam Inc., 4UCamtm is our trade mark printed on
all our products. You can be sure to find us after 90 days for any support. I
saw many other eBayer who sell the similar product,
most of them would not last for couple of months. Can you be sure you can find
them to support the warranty?
Please see the
ACTUAL PAN&TILT CAMERA IN ACTION
Following are
ACTUAL video output from the original Pan & Tilt Wireless Camera model. The
mini motor inside the wireless camera drives the pan & tilt camera in
motion, remotely control by Hand-held receiver from two rooms (40 feet) away.
Do not miss the Pan/Tilt in CATION.
QUALITY OF CAMERAS YOU CAN SEE HERE:
(These picture token
from camera 860Q)
|

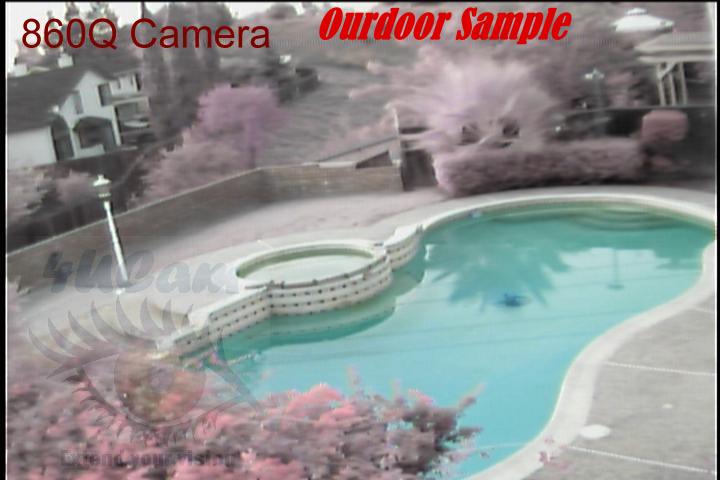

Outside View
|

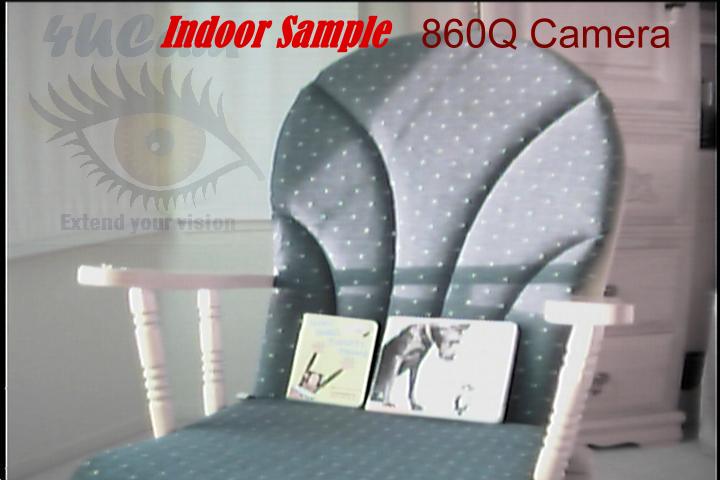

Indoor View
|

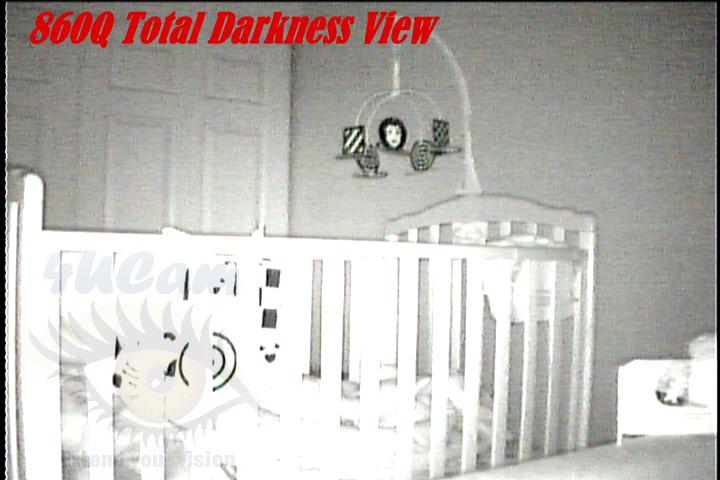

Completely Dark – Night Vision View
|
|
|
|
|
FEATURES:
·
Pan & Tilt Scan (Horizontal 270°, Vertical 120°) Camera remotely controlled by battery operated hand-held receiver
·
Easy Setup! Install and
use in minutes
·
Large 2.5" color
LCD-TFT with 480 X 234 resolution receiver provides crisp images
·
Night Vision (Effective Range: 16 feet)
·
Include one earphone
for receiver
·
Built-in microphone in camera
and speaker in receiver for audio monitoring
·
Easily connect to a TV,
VCR with AV output on receiver (cable included)
·
3 channels 2.4GHz
wireless in both camera & monitor to avoid possible interference
·
Monitor supports up to
3 cameras. (Please
visit 4UCAM for more detail)
·
Up to 330 ft.
transmission distance in open space
International
Orders
We now carry this model built to European (2 round pin power adapter)
and UK
specifications (3 Pin power adapter)
with 220v voltage and PAL A/V output accordingly. This is important for
European/UK customer.
All North American shipments (Canada) are sent using the standard
American (NTSC) 110v two prong adapters.
FOR EU/UK CUSTOMER. IT IS IMPORTANT THAT YOU HAVE EU/UK MODEL, SO YOU
DO NOT NEED TO PURCHASE POWER AND PLUG ADAPTER IF YOU PURCHASE FROM US.
Specifications:
|
Camera/Transmitter
(860T)
|
Monitor/Receiver
|
|
Imaging Sensor :
CMOS
CMOS Total Pixels : 510x492(NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 60 Degree
Minimum Illumination: 0 Lux
Transmission Frequency: ISM 2,400~2,483 MHz
Transmission Power : 2mW/FCC
Modulation Type: FM
Bandwidth : 18 MHz
Power Supply: +9 VDC
Consumption Current : 600mA & 700mA(IR ON)
Horizontal Rotating Angle: 270 Degree
Vertical Rotating Angle: 120 Degree
Unobstructed Effective Range : 330 feet (Min)
Night Vision Range: 16 feet
Dimensions(WxDxH): 104 x110
x124 mm
Weight : 8 oz.
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122
(Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185
(Degree F)
Operating Humidity: 85% RH
|
LCD Size : 2.5
inch TFT
LCD Resolution: 480 x 234
Receiving Frequency: ISM 2,400MHz~2,483MHz
Demodulation Type: FM
Receiving Sensitivity: <= -85dBm
Power Supply: +9 VDC
Consumption Current : 300mA
Remote control transmission Frequency 315/433/868/915MHz
Remote control transmission power: 14+/-1.5dBm
Remote control Modulation Type: FSK
Dimensions(WxDxH): 68 x 149
x 26 mm (Excluding Antenna)
Weight : 6 oz.
Operating Temperature: 0 ~ +50 (Degree C) / +32 ~ +122
(Degree F)
Storage Temperature: -20 ~ +80 (Degree C) / -4 ~ +176
(Degree F)
Operating Humidity: 85% RH
|

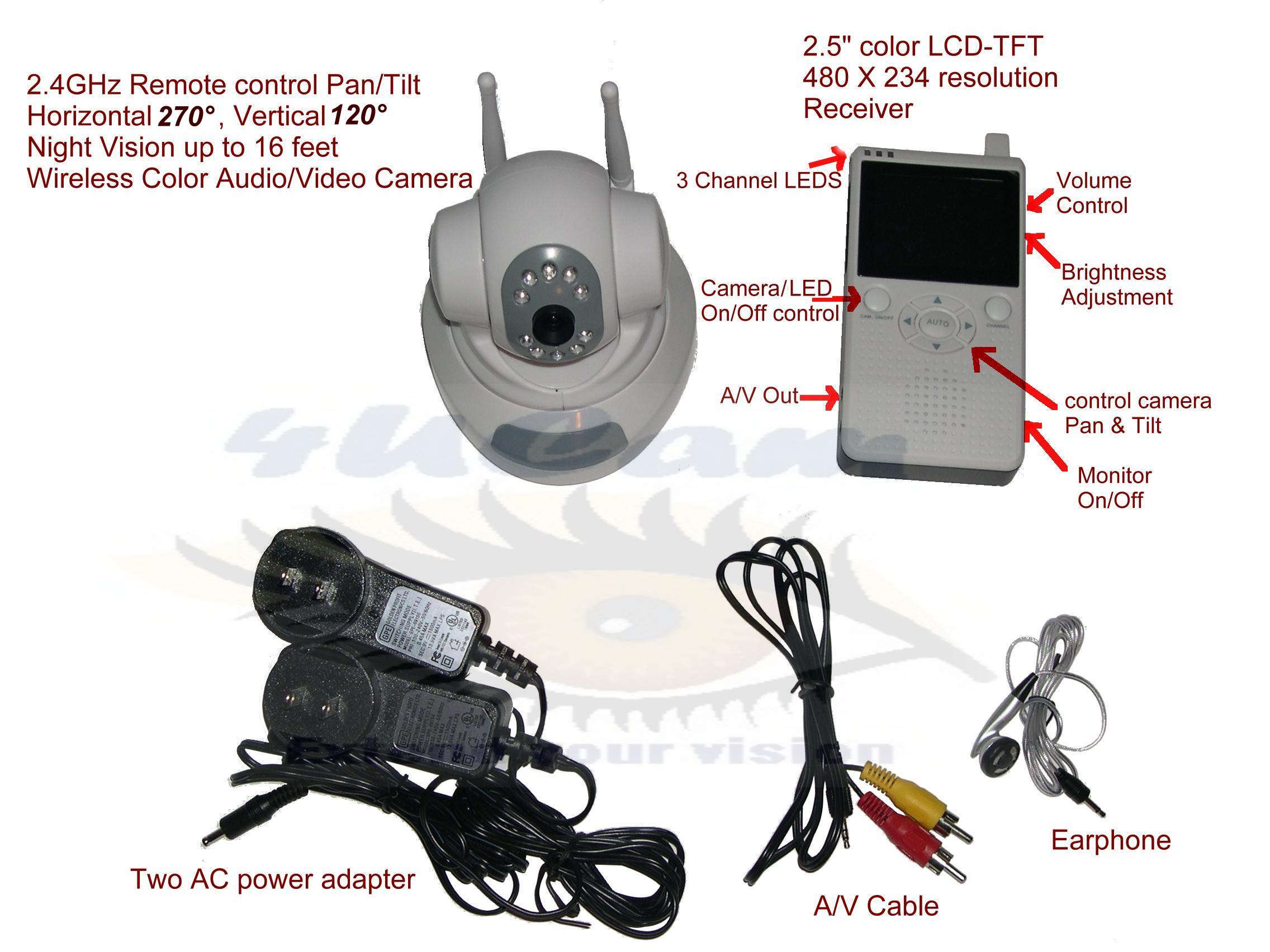

Package
contains:
·
One Wireless color
infrared LEDs camera (860T)
·
One hand held monitor
with 2.5-inch LCD TFT screen (AC or Battery)
·
Two AC power adapters
·
One video cable
·
One Earphone
·
User's manual
Additional Optional Accessories:
|
Additional 860NT camera with AC
power adapter.
|
Snap on (3 hours) rechargeable MiNH battery for monitor.
|
9V battery adapter for camera. This
adapter will make the camera truly portable.
|
Wall mount base for camera. (camera not included)
|
|
 $99.95
|
 $24.95
|
 $4.99 (not include
battery)
|
 $19.99
|
Just add to your final payment when
check out. Not additional SH fee for USA order.
Frequent Ask Questions:
1. Can one monitor work with two cameras?
Yes.
One monitor can view and control up to 3 cameras.
2. Can two monitor work with one camera?
Yes. One camera can
work with multiple monitors.
3. What’s the different between 860Q and 860T?
860Q is a SET which
include 860T (camera) and so on.
4. How long will the snap-on battery last after full charge?
Fully charged snap-on
battery can run 2-3 hours, depend on LCD on or of
