Water Resist RFID Access Control w networking Combo 1Q

GR: FGPRBMT KWACKYQT

IT: LCKOMBOPQ

DESCRIPTION

We ship direct from USA

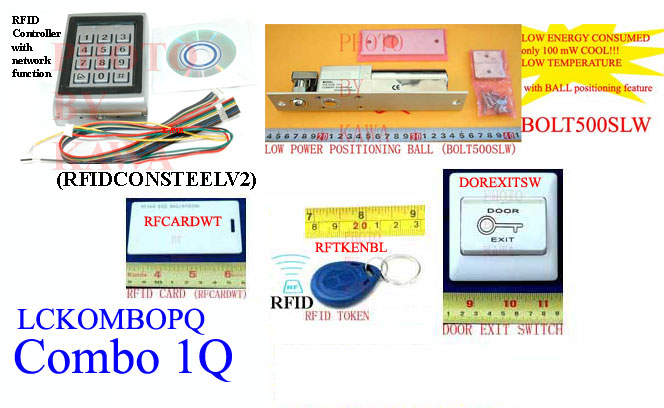

Picture 1:  What you see above is what you get.

PRODUCT DESCRIPTION

Offered here is a ONE (1) new good quality COMBO of   RFID Access Controller & RFID Card that permits door access via password or RFID card or both.

Package comes with

1. Water resistant RFID Access Controller made of stainless steel, ideal for outdoor use; and with networking function.

2. PDF manual will be emailed to buyer after purchase.

3. One RFID Card (click icon to buy more)

4. One RFID Key Chain (click icon to buy more)

5. Electric door exit switch

6. Electric door deadbolt / strike  with NC (Normally Closed / Fail Safe) function.

KEY FEATURES OF ACCESS CONTROLLER  :

Package comes with

1. Water resistant RFID Access Controller made of stainless steel, ideal for outdoor use.

PRODUCT DESCRIPTION

Offered here is a ONE (1) new good quality  RFID Access Controller & RFID Card that permits door access via password or RFID card or both.  This unit also has networking function.  Buyer needs to buy this optional controller cable .  Please note that you only need one cable to control up to eight RFID controller from your PC with an RS232 port.

KEY FEATURES:

Options to open door includes:
1. Password Only

2. RID Card  Only (RFID token ( or ) you can register and deregister various RFID Card/passwords ( i.e. if you need to deactivate someone's access)

3. Password & RFID Card /token (click icons to purchase)

Three user levels: Normal user, Secure user and Master user

Three operational modes: Normal mode, Bypass mode and Secure mode
"Code search" feature that helps make maintaining user codes easier

Input for Request to Exit (REX) button

Comes with mounting template for easier installation

Strong die cast stainless steel, weather resistant stainless steel housing.   Case and Back are all tamper proof; in case of tampering (the case is opened or removed from the wall), the unit will emit an alarm electrical signal to optional attached bell/chime/siren or strobe device to warn about tampering by an intruder.  The siren time can be programmed to last 0 to 9 minutes.

TECHNICAL SPECIFICATION:

Electrical Characteristics
Operating Voltage?12 VDC

Operating Input Current:
standby: 65mA
Maximum: 120mA

Outputs:
Lock Strike Relay Output: 2A Relay
Lock Strike Power Supply: 12VDC constant voltage
1.2 A current limit
Auxiliary Relay Output: 1A Relay Closed to Ground
Reader Power Supply : Voltage: 12 VDC
Max Current: 300mA
Inputs:
Release to Exit (REX): N.O. Dry Contact
Door Monitor: N.C. Dry Contact

Will handle up to 2400 users
Reader Input: 26-Wiegand Compatible.  For more information, please click this icon
Indicators & Enunciators
Visual: Two Tri-Colored LEDs
Audio: Built out Sounder (Bell, Chime & Sire )
Piezoelectric


Key Features
Environment Characters:
Operating Temperature: -31C---63C
Operating Humidity: 0 to 95% (Non-condensing)
Mechanical Characters:
Appearance Dimensions?L120MM*W76MM*H27MM
Weight: 410g,Metal shell, Rainproof Equipment
Line Specifications:
RS485:shield or non-shield twisted-pair,22Gage ,link cable lines within 1200 meters.
Key feature
Built-in non-contact reader (125 KHZ, ASK Modulation)
Built-in programming keypad
External Siren
Networkable up to 8 doors
RS485 PC Programming Interface.  Please note that buyer needs to buy this optional RS485 to RS232 controller cable .  You only need one cable to control up to eight RFID controllers.  Other types of RS485 to RS232 converter available in the market will not work with this RFID controller.


Multi-language PC software
Programmable PC software access control rights
Real-time System Control
2000 Event History stored inside the device
Real-time Clock & Upload Automatically
8 Programmable Access Time Zones
No. You can see your picture and consider what are you doing now
24 Programmable Holiday Dates
Support Wiegand 26 Readers For more information, please click this icon

Three Modes of Operation
Normal /Secure /Bypass Mode
Lock Strike Relay output
Auxiliary Relay output
Request to Exit (REX)button
Door Monitor
Forced Door and Door Ajar Detection
Two Status/Programming Interface LED’s
Back-up Realtime clock Battery
Bell,Chime, & Strobe annunciator
Programmable Lock Strike & Auxiliary Relay release time


===============================================

The following is specifications for the electric deadbolt  included in this listing:

BRAND NEW door electric deadbolt / strike with NC (Normally Closed / Fail Safe) function.

Face plate: 205L x 35W x 40H (mm)

Strike: 90L x 25W x 2H (mm)

Cover Plate: 215L x 40W x 0.7H (mm)

Bolt: 16mm diameter, stainless steel 16mm throw

Material: Aluminum panel with strongly style and Stainless steel

Voltage: DC 12V

Current: Start 950mA / standby <=100mA (SUPER LOW HEAT!!!)

Patent Designed: Low temperature

Ideal for Wooden / glass / metal / fire proof door

Authority Certification: CE approved

Signal Output: Door status sensor

This item is rated: NC function -- Normally Closed -- Fail Safe (Locked when energized).

Safety function: Built-in voltage spike suppressor

Please note if you need a more advance version that will send monitoring signal to your access control unit as well as the ability to guarantee the bolt will come out / lock at the correct position (via a positioning ball) and not prematurely, then buy this deadbolt

(code:YHBOBSNC  / click on this icon) :  Please note that not all access controller supports this function, you must check with your access controller manufacturer before making this purchase decision.

Cable connection instruction:

1. Black cable: Connects the black cable to ground of your intelligent power supply.

2. Red cable: Connects the red able to NC terminal of your intelligent power supply.

For the above item to operate normally, you need a complete set of related items/accessories as shown in the following figure (click on any of the icons below to purchase them).  They are all compatible with one another.  Choose one item from each column.

Access Control Unit		the access key (from outside)		the access switch or panic/emergency access switch (from inside)		Uninterruptible  Power Supply (UPS)		the electric lock / strike		Door Bell and Theft / Break-in Alarm
1.  2.  3. 4. 5.		1.   2. 3.   4. Password
