Yaesu FT-7900R VHF UHF Mobile Dual Band Radio FT-7900



BRAND NEW
YAESU FT-7900R
2 Meter / 70 cm Dual Band FM Transceiver

Summary

The FT-7900R provides 50 Watts of power on the 144 MHz band, and 40 Watts on the 430 MHz, and is designed for simplicity of operation along with high performance in the receiver section. The FT-7900R is ideal for the active Ham who has a need for simplex, repeater, or FM satellite operation on both bands, but without the complication of cross-band repeat capability, which is available on our FT-8800R and FT-8900R models.

In-stock Product Photos

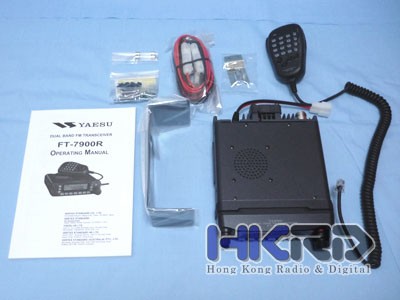

Item included	Qty
Yaesu FT-7900R Dual Band Radio Mobile Mounting Bracket Spare Fuse 15 A DC Power Cord w/Fuse Operating Manual Warranty Card	1 1 1 1 1 1

FEATURES

High Power Output

Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7900R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too

Wide Receiver Frequency Coverage

The FT-7900R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!

Large LCD Display

The large backlit LCD on the FT-7900R ensure ecellent visibility

One-Touch

Five front panel keys allow complete transceiver configuration status to be stored for convenient one-touch recall. So you can set up favorite frequencies in each operating band, including the receive-only bands, then recall them with a single touch of a button!

Over 1000 Memory Channels

The FT-7900R’s incredible memory channel capacity includes registers for over 1000 channels, each capable of storing a 6-character Alpha-Numeric label. And the memories may be stored in any of the 20 available memory groups; a particular memory channel may also be stored in multiple groups, if desired.

NOAA Weather ALert (U.S. Version only)

A special memory bank on the FT-7900R allows instant recall of the ten NOAA Weather frequencies. What’s more, you can enable a special “Severe Weather Alert” feature that will sound an alarm when a NOAA station transmits the special alert tone during a severe weather alert broadcast.

YSK-7800 Remote Mounting Kit (option)

Using the optional YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7900R’s front panel on the vehicle’s dash board, then stow the radio’s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.

WiRES™ Internet Linking Capability

The FT-7900R’s DTMF signaling capability includes provision for easy access to Yaesu’s WiRES™ (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.

Specifications

GENERAL
Frequency Range Receive:	108-520 and 700-999 MHz (cellular blocked).
Frequency Range Transmit:	137-174, 400-470 MHz
Frequency Steps:	5/10/12.5/15/20/25/50/100 kHz
Operating Modes:	F3E, F2D, F2A
Antenna Impedance:	50 Ohm, Unbalanced
Antenna Jack:	SO-239 [U.S.A. version]
Frequency Stability:	? ppm -4°F to 140°F (-20°C to +60°C)
Supply Voltage:	DC 13.8V ?5%, Negative Ground
Current Consumption:	Receive Squelched - Less than 0.5 A
	TX	HI
	144 MHz	8.5 A
	430 MHz	9.0 A
Operating Temperature Range:	-20°C to +60°C (-4°F to +140°F)
Case Size:	5.5 x 1.6 x 6.6 inches (140x42x168 mm)
Weight:	Approx. 2.2 lbs (1.0 kg)
0
TRANSMITTER
RF Power Output:	50/20/10/5 Watts (144 MHz)
	45/20/10/5 Watts (430 MHz)
Modulation Type:	Variable Reactance
Maximum Deviation:	+-5 kHz, +-2.5 kHz
Spurious Radiation:	-60 dB or better
Microphone Impedance:	2 K Ohm
Data Jack Impedance:	10 K Ohm
0
RECEIVER
Circuit Type:	Double-Conversion Superheterodyne
Intermediate Frequencies:	45.05 MHz & 450 kHz
Sensitivity (12dB SINAD):	<0.2uV typical
Selectivity:	12 kHz/30 kHz (-6/-60 dB)
Squelch Sensitivity:	Better than 0.16uV
AF Output:	2W @ 8 Ohm @10% THD
AF Output Impedance:	4-16 Ohm (Internal Speaker 8 Ohm)
	Specifications are subject to change.

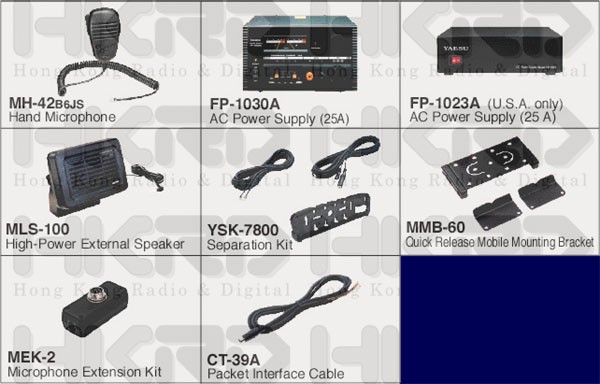

FT-7900R's optional accessories (not included)

• There are original accessories of FT-7900R. Please browse our listings if you are interested.

• Link of related listings: Please click here

• If you cannot find what you want, please contact us by eBay message or email (hkrd.hkrd@yahoo.com)



Radio Version

• This radio is export wide band version.
• The Export wide band version is based on the configuration of EU version but with a wider transmitting frequency range.
• Some specific features which can be found in the US version (e.g. Weather channel, ARS system etc.) may not be available, but they may be attained by modification.
• Please request for such modifications before purchase or write a note in the PayPal payment.
• Modifications will take 4-5 working days before we ship out your item.
• Please check your local regulations carefully before you operate the radio(s) in your country/region. We try our best to serve you but we are not responsible for any consequence of breaking your local regulations and law.
