Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

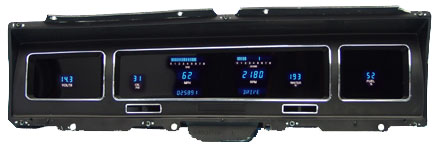

Full 6 Gauge Instrument System fits into OEM bezel for 1968 Chevy Impala/ Caprice.

Fits directly into existing bezel (not included).

---

Digital Instrument System Features

• Displays included with this instrument system:
  • Speedometer (0-255 MPH or KPH)
  • Tachometer
  • Oil Pressure
  • Water Temp
  • Voltmeter
  • Fuel Level
• Also shown is: Odometer, Trip Odometer, Resettable Service Odometer and Hourmeter.
• Several performance calculations include: 0-60 MPH (0-100 KPH) timer, ¼ mile timer, ¼ mile speed display, High Speed recall and High RPM recall.
• Various Indicators can also be displayed such as: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, 4x4 (when equipped), Wait to Start (when equipped).
• Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear. Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 sending unit (not included, can be added to invoice).
• Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
• Full Metric conversions will cycle between MPH or KPH with the press of a button. If full (Celsius & KPH) metric instrument systems are required, please specify upon ordering.
• Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT) and speedometer pulse generator.
• Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased separately if necessary.
• Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
• Built-in dimmer will reduce the display intensity as headlights/ parking lights are activated.
• Fully adjustable warning points alert the user of potential vehicle problems.
• Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer. If you would like mileage added to the odometer, this can be done at the factory for an additional charge of $20. Please let us know and we will add it to the invoice.
• ** Covered by a Limited Lifetime Warranty!
• *** See standard color options Blue or Teal.

When you win the item, please specify the following option:

Display Color:	Do you want the digital readout to be blue or teal?
Optional Add-ons:	Please let us know if you would like any of the following items added to your order, and we will send you a revised invoice.
GSS-2000 Sending Unit ($99.95)	SEN-06-1 Fuel Level Sender ($32.95)	DIM-1 Dimming Knob ($29.95)
