nVIDIA GF 9600M GT G96M NB9P-GS 512M MXM II VGA Card

	Original nVIDIA Graphics MXM Video Card

Brand:  nVidia

Model: Geforce 9600M GT(G96M / NP9P-GS)

Memory Size: 512MB (4pcs x DDR3 32M x 32)

Type: MXM-II (73mm x 78mm)

Condition: New (with Heat Sticker & Driver Disc)

Warranty: Doa 30days

(If removed sticker or sign, no warranty)

Payment: Paypal or T/T (Bank Transfer)

Remark:

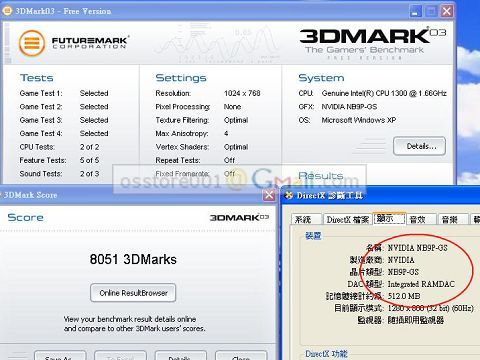

1. The MXM card tested in laptop & 3D mark befor sent.

2. Some of Laptop need updated bios & compatible it.

3. If the MXM card driver conflict with some device driver in laptop,

    the operate system maybe need re-install.

4. Pls paste the heatsink sticker as below photo before install the card.
5.We are unable to provide any advice of technical.

6. Not all of laptops are support this card, perer to 965PM or above laptop.

7. Pls comfirm  a 9600M Vbios in your laptop before buy.



NVIDIA GeForce 9600M GT

The Nvidia GeForce 9600M GT is a DirectX 10 graphics card for notebooks andsuccessor to the 8600M GT. Compared to the 8600M GT or 9500M GS, the 9600M GT was produced in 65nm (allows higher clock rates with the same current consumption) and features a new PureVideo HD video processor (VP3) and HybridPower support.

In conjunction with the Nvidia 9100M G integrated graphics, the 9600M GT supports Hybrid-SLI (only HybridPower). HybridPower is a technique to choose between the integrated and dedicated graphics core, if performance or battery runtime is needed. This works only in Windows Vista. Up to now the user has to use a tool to switch between the GPUs. Later Nvidia wants to switch automatically in the drivers. GeForceBoost is not supported with this card, as there would be no performance gain.

As the 8600M GT, the 9600M GT features 32 stream processors that do the graphic work of the vertex- and pixel-shaders.

The performance of the 9600M GT should be somewhere between the 9500M GS and the 8700M GT (depends if GDDR2 or GDDR3 memory chips are used).

Compared to desktop graphics cards, the 9600M GT is similar to the GeForce 9500GT (which also descends from the G96 core). The desktop CPU 9600 GT has a 256 bit memory bus and is therefore much faster.

Manufacturer	NVIDIA
Series	GeForce 9M
Codename	NB9P
Pipelines	32 - unified
Core Speed *	500 MHz
Shader Speed *	1250 MHz
Memory Speed *	800 MHz
Memory Bus Width	128 Bit
Memory Type	GDDR2, GDDR3
Max. Amount of Memory
Shared Memory	no
DirectX	DirectX 10, Shader 4.0
Current Consumption	23 Watt
Transistors	314 Million
technology	65 nm
Features	PCI-E 2.0, 1250 MHz Shader Taktung, 400 MHz Speichertaktung bei GDDR2, 800 MHz bei GDDR3, PureVideo HD Technologie (VP3), Hybrid SLI mit HybridPower (mit aktuellen nVidia Chipsätzen).
Notebook Size	medium sized
Date of Announcement	04.06.2008
