Roland V Drum TD-9 Electronic Sound Module V-Tour ~ WoW

Module




The Roland TD9 Percussion Sound Module is the anchor of Roland's new mid-line V-Drums kits.
With hundreds of new sounds, real-audio songs and patterns onboard, plus new Scope and Quick Rec/Quick Play practice functions, full V-Hi-Hat (VH-11) compatibility, and 3-way ride triggering available, the TD-9 raises the bar significantly in its price range.

Fast, Friendly, Fun

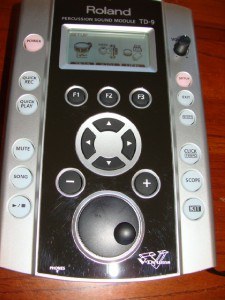

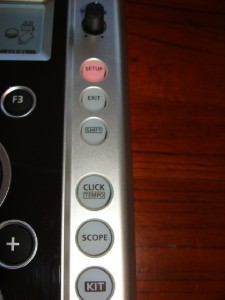

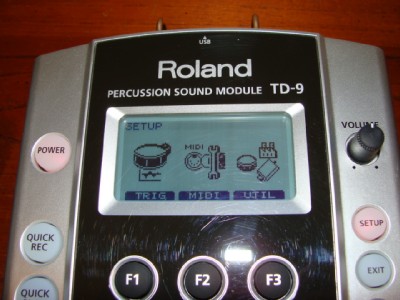

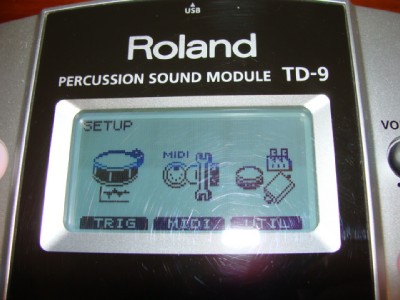

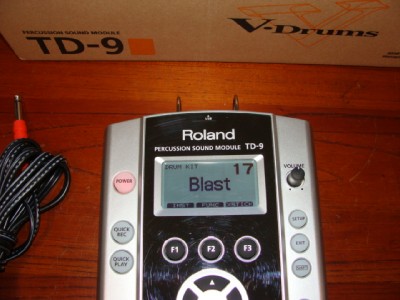

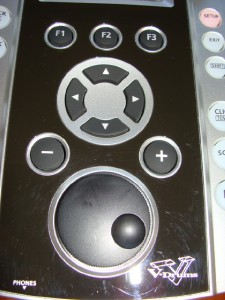

No more squinting a small screen — the TD-9 is outfitted with a luxurious, large backlit display with accompanying oversized buttons and controls. Its friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.

Interactive Innovation

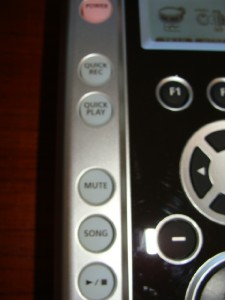

Play along with real-audio backing songs to build your musical experience base. Use the USB port to play along with audio files of your choice (.WAV), back up your data, or save a quick record performance. The Quick Record and Quick Play features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. Special connecting cable allows for fast, clean, and easy connection to the pads.



Technical Specifications

• Drum Instruments: 522
• Drum Kits: 50
• Instrument Parameters:
  • Kick: Head Tuning, Muffling
  • Snare: Head Tuning, Muffling
  • Tom: Head Tuning, Muffling
  • Hi-Hat: Cymbal Size, Fixed Hi-Hat
  • Cymbal: Cymbal Size, Sustain
  • Others: Pitch, Decay
• Effect Types:
  • Ambience (9 types)
  • 2-Band Equalizer
• Ambience Parameters:
  • Room Type
  • Room Size
  • Wall Type
  • Mic Position
  • Room Shape
• Mixer Parameters:
  • Volume
  • Pan
• Percussion Set: 1
• Song Preset Songs: 50
• Parts: 4
• Play Function:
  • One shot
  • Loop
  • Repeat
• Tempo: 20-300
• Quick Record Resolution: 480 ticks per quarter note
• Recording Method: Real-time
• Maximum Note Storage: Approx. 32,000 Notes
• Audio File Format: WAV
• Display: 128 x 64 dots Graphic Type LCD (backlit)

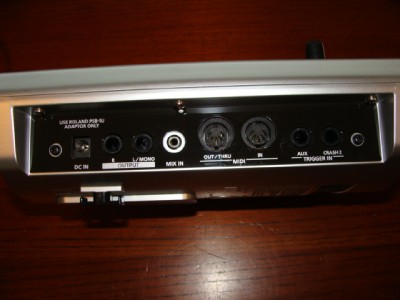

• Connectors:

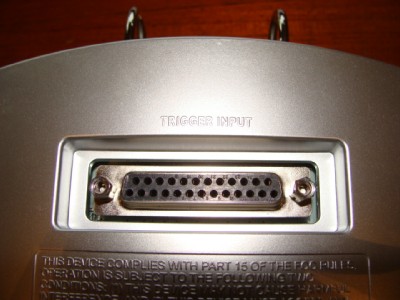

  • Trigger Cable connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control)

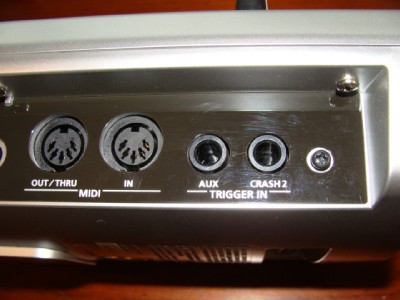

  • Extra Trigger Input Jacks: 2 Stereo 1/4 inch phone type (Crash, Aux)

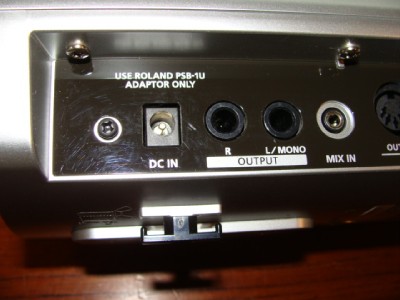

  • Output Jacks: Stereo 1/4 inch phone type (L (MONO) R)
  • Phones Jack: Stereo 1/4 inch phone type
  • Mix in Jack: Stereo miniature phone type
  • MIDI Connectors: IN, OUT/THRU

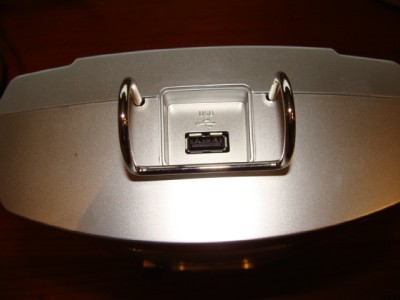

  • USB Connector: for USB Memory
• Output Impedance: 1.0 k ohms
• Power Supply: AC Adaptor (DC 9V)
• Current Draw: 500 mA
