Get superior optical performance with a minimum resolution and a maximum reading distance with this contact CCD barcode scanner. It features a rugged and reliable design and a plug and play USB interface. It's easy to setup and use.
PACKAGE INCLUDES:

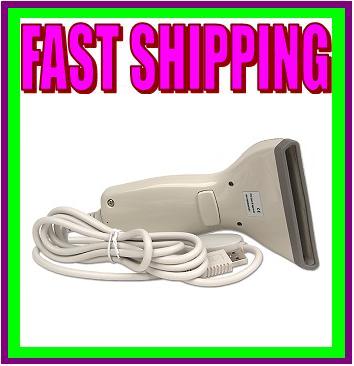

USB CCD Barcode Scanner
Manual
GENERAL FEATURES:
Optical System: 2160 Pixel CCD
Scan Speed: 100 scans per second
Light Source: Visible LED (wave length 660nm)
Resolution: 0.1 mm (4 mil)
PCS Value: 30% or more
Scanning Angle: 30ð (forward) / 37ð (reverse)
Scanning Width: Up to 120mm
Scanning Distance: 0~50mm (EAN*1, PCS=90%)
Decodable Symbologies:
Code 39
Code 39 extended
Interleaved 2 of 5
WPC (EAN-13, EAN-8, UPC-A, UPC-E) Code 128
Code 93
Coda bar
Code 11
Code 32
EAN-128
Chinese Postage Code
IATA
MSI/PLESSY
STD 2 of 5
Martix 2 of 5
Italian Pharmacy
Code Industrial 2 of 5
BC-412
Interface:
USB plug and play interface
Multi-Interface emulation: Keyboard Emulation, C-MOS Serial and Wand Emulation all in one unit
Type of keyboard Emulation: IBM PC/XT/AT, IBM PS/2 Model 30/40/50/55/80, IBM5550, 3196, 3472
3477 NEC 9810, MAC, etc.
Electrical:
Voltage: 5V DCñ10%
Operation Current: 130mA
Standby Current: 70 mA
Environmental:
Temperature-Operating: +32ðF to +105ðF (0ðC to +50ðC)
Temperature-Storage: -15ðF to 140ðF (-26ðC to +60ðC)
Humidity-Operating: up to 80% RH
Humidity-Storage: up to 90% RH
Ambient Light Rejection: 1500 Lux maximum (fluorescence);800 Lux maximum (sunlight)
Shock Resistance: Approved by 1.2 meter drop test on concrete
Dimensions:
Length 170mm x Width 93mm x Height 58mm
Weight: 120g , excluding Cable and Connector
Type of Cable: 2M straight cable
Regulatory Approvals:
FCC
CE
Product Requirements:
Available USB port
PC: Windows 98 or Higher
MAC: OS 8.1 or higher (iMac: Rev A. or higher)
