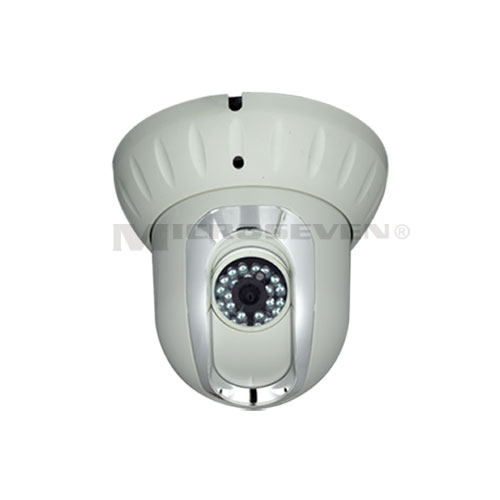

M7-RD550PTWS is a professional IR wireless dome network camera, with 1/3" Sony Super HAD CCD, Ethernet and wireless 802.11g, H.264, 720X480 resolutions, maximum 30 fps and 24 infrared lights which support up to 66 feet. It provides built-in web server and supports for video motion detection and I/O for alarm/event handling and built-in SD card drive. There is two way audio and Audio full duplex G.711.
Key Features
- Dual core CPU processor for H.264
- H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
- 1/3 Sony CCD sensor 550 TVL color / 600 TVL black and white high quality image
- Infrared leds distance is 150 ft
- Can be recorded on NAS server from camera to NAS server
- FTP image from camera to server by same name option for weather station and engineering projects
- Maximum frame rate is 30 fps 720 x 486 for NTSC and 25 fps 720 x 576 for PAL
- Network bit stream rate is 100Kbps - 3Mbps
- Microseven software lifetime updates
- Provide www.microseven.com for customers online monitoring camera live around the world
- LIVE Still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
- Camera built-in web server enables video LIVE anywhere over the internet;
- SD card drive is for (SDHC) SD card and maximum recording video streaming data up to 100 hours with 8 GB.
- Wi-Fi 802.11 G with WEP and WPA encryptions
- Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
- Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
- TCP/IP and RTSP protocol;
- Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
- Three video output such as AV output for analog and two network digital output accessed by Ethernet and wireless
- Two ways audio
- Support multiple monitors on one PC for full screen.
- Free web hosted your cameras in www.microseven.com
- POE by using M7-M-DC3 and M7-F-DC3 are available (POE is power over Ethernet cable [cat5e])
|
 |
Specification
Model
| Model
| M7-RD550PTWS |
| Brand |
Microseven |
Spec
| Network Camera
| Yes |
| Type
| Wireless Camera |
| Connection Type
| Wireless + RJ45 |
| System Type
| NTSC or PAL |

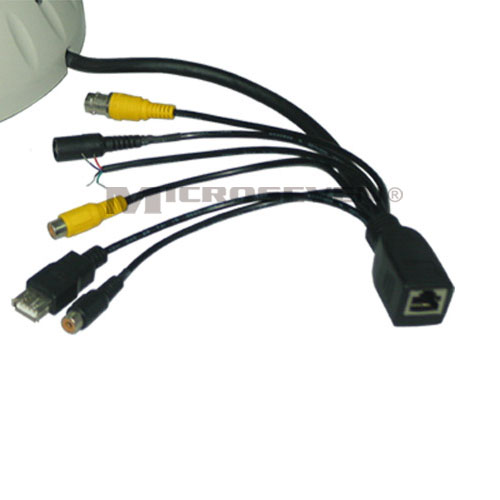

| Ports
| Network Connection: Ethernet (10Base-T/100Base-TX)
Analog Video Output: Analog composite (NTSC/PAL)
Audio In, Audio Out, Power Connection, I/O Alerts port |
| Networking Protocol
| HTTP, FTP, SMTP, TCP, IP, DHCP, DNS, ARP, ICMP, RTSP, RTP |
| Wireless Type
| IEEE 802.11g |
| Pan/Tilt/Zoom
| Pan Range: 355° , Tilt Range: 90°, Speed: 12°/s (Pan) 10°/s(Tilt) |
| Sensor
| 1/3" Sony Super HAD CCD, 550 TVL color and 600 TVL b/w, approx. 500,000 pixels |
| MAX Resolution
| 720 x 576 (PAL), 720 x 480 (NTSC) |
| Video Capture Resolution
| D1: 720 x 576(PAL), 720 x 480(NTSC)
H-D1: 360 x 576(PAL), 360 x 480(NTSC)
CIF: 360 x 288(PAL), 360 x 240(NTSC)
QCIF: 180 x 144(PAL), 180 x 120(NTSC) |
| Frame Rate
| Max 30 frames/sec |
| Lens Type
| 4mm (Different lens avaiable), F1.2, color 0.1 Lux, b/w 0 Lux |
| Aperture
| F1.2 |
| Shutter Control
| 1/120 sec |
| Security
| WEP, SSID, WPA; Authentication: User ID/password |
| Night Vision
| Max. 66ft, IR wave length 850nm, φ 5 x 24 pcs |
| Audio
| 1 channel, RCA interface, single track, 8 KHz |
| Software
| Microseven M7CMS, M7IE |
| Operating Systems Supported
| Windows 2000, XP, Windows 2003, Vista, Windows 7 |
| Storage
| SD card drive built-in, full size operation guaranteed for 8 GB |
Power
| Power
| AC Adapter: Input 100V AC - 240V AC
DC12V，800mA，＜10W |
Physical
| Temperature
| 14 F - 122 F |
| Humidity
| ≤ 90% |
Dimensions & Weight
| Dimensions
| ∅ 6.6 in X 6.3 in (H) |
| Weight
| 1.9 lb |
Packaging
| Package Contents
| 1 x M7-RD550PTWS
1 x Power adapter
3 x Screw Set
1 x Flat Bracket
1 x CD
1 x Release paper |
Manufacturer Warranty
| Parts |
1 year limited |
| Labor |
1 year limited |
Microseven Network Camera Software
M7CMS
 |
M7IE
 |
This is great camera for weather station! We provide all the software.
Please email to support@microseven.com anytime for detail information!
- HTTP/FTP function allow you to view snapshot of the camera from any browsers.
- Free lifetime software update.
- One M7CMS screen can view up to 16 different location.
Please check my other auction for more H.264 IP Wireless Network Cameras and H.264 Video Server!
Return Policy
One year warranty If you are unhappy with your product for any reason, you may request a return within 30 days of the receipt of merchandise for a refund. You will be responsible for the return shipping cost unless the merchandise is damaged or defective. All returned merchandise must be in original factory condition.
