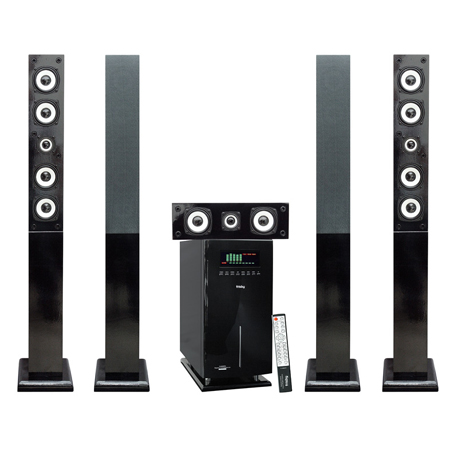

With Frisby FS-93000 2.4 Ghz
RF Wireless 5.1 Channel Home Theater System, your home music
options have never been better. The Frisby FS-93000 optimizes
wireless high frequency RF technology to achieve the best
quality in-home audio experience possible. The system includes
a center channel and 4 tower satellite speakers and produces
rich bass, powerful midrange and crystal clear highs. The
system is Dolby Digital DTS AC-3 5.1 ready with HQ BASS technology
for intense low frequency response. Powerful 5000 Watt PMPO
amplified subwoofer with ported wood enclosure consists of
high gloss front panel piano finish and full magnetic shielding.
Frisby FS-93000 is a very high end surround sound system and
worth every penny and has convenience to delivery to your
home, you won't be disappointed
Wireless Rear Speakers (with wired option):
Uses high frequency 2.4 Ghz RF technology to eliminate the
need for wires running from the front of the room to the rear.
The units in the FS-93000 communicate each other through a
combination of wiring and 2.4 Ghz RF frequency (wireless)
signals. As shown in the illustration below, wireless receiver
box centered between the rear speakers communicates through
a wireless transmitter located within the subwoofer.
This model features an LCD display and front
panel controls for ease of use. A stylish Infrared remote
control is included for user convenience. Multiple inputs
enable easy connection for up to 5 audio sources. 2 pairs
of RCA Auxillaries support stereo devices, 6 RCA for surround
sound, Coaxial for composite signals, and an Optical port
to support surround sound connection for your favorite game
system like PS2, PS3, Xbox, Gamecube and WII. High quality
materials and rugged construction provide durability and our
1 year limited warranty ensures your continued satisfaction.
With 4 AUX LINE-IN, you can directly connect this surround sound system to your TV, MP3 Players, Game Consoles, CD, DVD player or any COMPUTER or a LAPTOP without any additional equipment.
Both speakers and the subwoofer are magnetically shielded, no need to worry about the screen nearby
Infrared remote control and front panel control keys. The remote control has Power, Mute, DVD 5.1, Stereo, Aux 1, Aux 2, 5.1 Channel, 2.1 Channel, Tach Switch, Reset, and Volume, Treble, Bass controls.
Safety protection by adding power fuse to the woofer. Extra fuse is also included with the system.
HQ BASS technology. Sensational audio effect.
High Gloss
Piano Finish Front Panels on both woofer and speakers and
Wooden case for whole set
Dolby Digital, Dolby DTS, AC-3 5.1 Ready
The system is complete, comes with power cord and all audio
cables
CONNNECTIVITY
This Speaker system supports connection to ANY
audio source with external 3.5mm or RCA / Component style
jacks. (Connection to 2.5mm or .250 is supported by adapter)
Both Stereo and Surround Sound devices are supported. The
package includes 3 sets of RCA to RCA cables and 3 sets of
3.5mm to RCA adapter cables.
Home
Entertainment Systems - Stereo & Surround Sound Connection
Any Stereo or Surround Sound Home Audio
component with 3.5mm or RCA outputs. .250 Connection requires
an adapter.
Any Brand, Any Model. Amps, Cable Box, CD, DVD, DVR, MP3,
MP4, Receivers, Tape Players, Tuners, Turntables, TV, VCR
For Stereo connection insert the 3.5mm
adapter into the headphone/audio output jack of your audio
device. Use an RCA to RCA Cable to connect the adapter to
the RCA input jacks marked RL and RF on the rear panel of
the speaker system.
For Surround Sound(SS) connection use an RCA to RCA Cable
to connect all 6 SS outputs on your device to the SS inputs
on the Speaker system. Match each output to each input,
FR to FR, FL to FL etc. 6 Channel connection is required
for Surround sound or connect either optical or coaxial
outputs of the subwoofer to your LCD or Plasma TV's optical
inputs to achieve true surround sound with a single fiber
optical cable connection.
This Speaker system has 2 operating modes. 2.1 Stereo (2
channels, left and right) and 5.1 Surround Sound(SS) (6
channels, LF,RF,LR,RR,CC,SW). Match the operating mode to
the content and player you are using by selecting the 2.1
button or the 5.1 button on the remote control.
Surround Sound (SS) audio content (newer movies on DVD)
should be played on an SS capable 6 Channel DVD player.
(Older 2 Channel DVD players will not produce Surround Sound)
All 6 inputs must be connected and the speaker system set
to 5.1 mode.
AUXILIARY Connection: This Speaker System
includes 2 sets of RCA style Auxiliary inputs(AUX1,AUX2).
This supports connection of 2 additional Stereo audio sources.
Connect your device using RCA to RCA cables , use the 3.5mm
to RCA adapter if necessary. Select your preferred audio
source using the Auxiliary buttons on the remote control.
(Example: Connect your PC to AUX1, your IPOD to AUX2, and
your Surround Sound audio source to the 5.1 input section)
COAXIAL Connection: This model supports
single cable Coaxial connection of a Stereo audio signal.
(Primarily for use with Televisions). Connect the Coaxial
output of your device to the Coaxial input on the rear panel
of the speaker system. Select Coaxial input from your remote
control.
OPTICAL Connection: This model supports
single cable Optical connection of a Surround Sound audio
signal. Connect the Optical output of your device(DVD, Game
Console, TV) to the Optical input on the rear panel of the
speaker system. Select Optical input from your remote control.
Game
Consoles - Stereo & Surround Sound Connection
Game systems equipped with Stereo output (3.5mm,RCA)
or Surround Sound output using optical connection. For Online
or PC based Games please check the computer connection section.
All Brands, All Models. Microsoft X-Box &
360. Sony Playstation PS2, PS3, PSP. Nintendo GameCube Wii

For Stereo connection insert the 3.5mm adapter into the
headphone/audio output jack of your game system, then use
an RCA to RCA Cable to connect the adapter to the RCA input
jacks marked RL and RF on the rear panel of the speaker
system. Match the color coded connectors Red to Red and
White to White. Game systems with RCA outputs may be connected
in the same way without using the headphone adapter.
For Surround Sound connect the Optical output of your device
to the Optical input on the rear panel of the speaker system.
Games Systems only support Surround Sound connection via
Optical Cable. This is a single cable connection. Select
Optical input from your remote control.
Stereo audio content (old Games) should be played with
the speaker system set to 2.1 mode. You will receive 6 speaker
Stereo play.
Surround Sound (SS) audio content (newer Games) should
be played using an optical connection and the speaker system
set to 5.1 mode.
Computer Systems -
Stereo & Surround Sound Connection
Any Brand, Any Model, Any Operating System. PC or MAC, Desktop,
Laptop, Tablet, Windows, MAC OS or Linux.

For Stereo connection insert the 3.5mm adapter
into the headphone/audio output jack of your computer. This
usually has a headphone symbol or green index. Use an RCA
to RCA Cable to connect the adapter to the RCA input jacks
marked FL and FR on the rear panel of the speaker system.
Match the color coded connectors Red to Red and White to White.
For Surround Sound connection insert a 3.5mm adapter into
each of the 3 audio output jacks of your computer. These are
usually marked with green, black and orange indexes. Use an
RCA to RCA Cable to connect each adapter to the RCA input
jacks on the rear panel of the speaker system. The Green output
should be matched to the RCA inputs marked FR(Front Right)
and FL(Front Left) Match the color coded connectors Red to
Red and White to White. Repeat the procedure to connect the
Black ouput to the inputs marked RR(Rear Right) and RL(Rear
Left). The Orange output should be matched to the inputs marked
Sub(Subwoofer) and Cen(Center Channel).
This Speaker system has 2 operating modes. 2.1 Stereo (2
channels, left and right) and 5.1 Surround Sound(SS) (6 channels,
FL,FR,RL,RR,CC,SW). Match the operating mode to the content
and player you are using by selecting the 2.1 button or the
5.1 button on the remote control.
AUXILIARY Connection: This Speaker System
includes 2 sets of RCA style Auxiliary inputs(AUX1,AUX2).
This supports connection of 2 additional Stereo audio sources.
Connect your device using RCA to RCA cables , use the 3.5mm
to RCA adapter if necessary. Select your preferred audio source
using the Auxiliary buttons on the remote control. (Example:
Connect your PC to AUX1, your IPOD to AUX2, and your Surround
Sound audio source to the 5.1 input section)
Warranty : 1 year ; Most sellers on Ebay offer only 1 month or maximum 3
months warranty. No seller on Ebay can beat our warranty period , and
that shows how much confident in our Frisby products
Personal
Entertainment Systems - Stereo Connection
This covers a wide range of small portable or
handheld players with 3.5mm Stereo Headphone output. 2.5mm
connection requires an adapter
Any Brand, Any Model. CD, DVD, MP3, MP4, Games Systems. Apple
IPOD, Creative ZEN, Microsoft ZUNE

For Stereo connection insert the 3.5mm adapter into the headphone/audio
output jack of your device, then use an RCA to RCA Cable to
connect the adapter to the RCA input jacks marked RL and RF
on the rear panel of the speaker system. Match the color coded
connectors Red to Red and White to White.
These are Stereo devices which play Stereo content and file
formats. Surround Sound connection is not supported for these
devices
This Speaker system has 2 operating modes. 2.1 Stereo (2
channels, left and right) and 5.1 Surround Sound(SS) (6 channels,
LF,RF,LR,RR,CC,SW). Match the operating mode to the content
and connection you are using by selecting the 2.1 button on
the remote control. Stereo audio content (CD,MP3, etc) should
be played with the speaker system set to 2.1 mode. You will
receive 6 speaker Stereo play. The speaker system should be
set to 2.1 mode for any Stereo content/signal/connection.
Remember Stereo input means Stereo output.
|
