Wireless Digital Home Security Alarm System (D07)
| ♦No monthly monitoring fee at all ! ♦Stop paying costly fees and following complicated instructions. ♦This is a totally Do-It-Yourself security system.
♦If you want to add more sensors to this system ,just tell me, I can make customized for you!Or you can buy at my shop together, I will program them before shipping. |
100% Brand New 1 year warrenty |
4-7 days delivery time |
Pay exactly you bid! |
14 days |
| NO MONTHLY MONITORING FEEs!NO NEED TO HIRE COSTLY TECHNICIAN! The intelligent security alarm system adopts the advanced microcomputer technology as the control core with high integrity and good reliability. It has various kinds of security guard functions against burglary, robbery, fire, gas leakage as well as urgent assistance, widely suitable for banks, stores, warehouses, offices and residential use. It can give an alarm accurately, also it’s easy and practical to operate, flexible and convenient to install without service charges. Thus, it is a wise choice of security guards for houses and public places.
| |
|

|

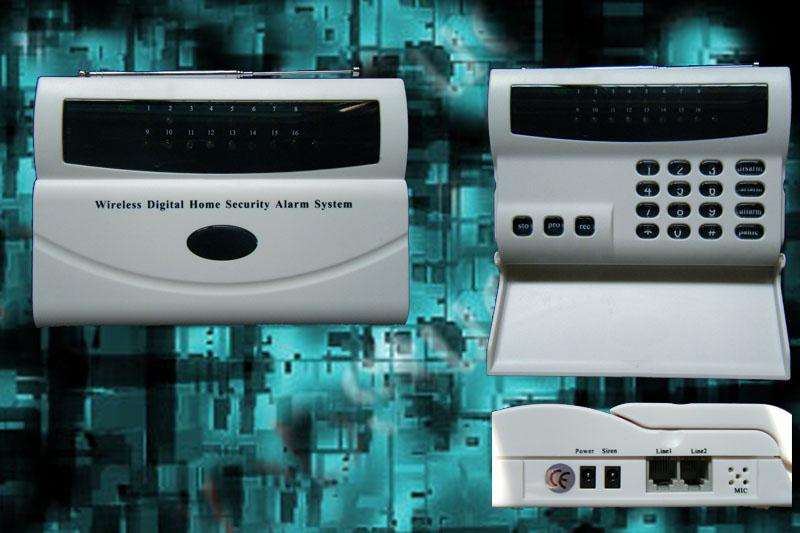

| This all-in-one keypad has multi-functions: Arm, Disarm, Auto-Dial, Panic, or program your entire system with this powerful keypad at the touch of a button. With built-in enhanced technology and built-in 36 to 48 hour lithium battery back-up. This keypad works up to 450 feet away from the security sensors in your home or business! - Wireless Operating Range: 240 ~450 feet (open areas), wired receive sensitivity: 5mV/m.
- Guard Zone Number: 14 LED defense zones, 14 wireless guard zones, 2 panic guard zones, 4 partarm guard zones (matched with non-limit detectors in each guard zone).
- working frequency: 315Mhz
- Power Supply: Input AC100~240V 50/60Hz;
- Output DC 9V 1000mA
- Built-in rechargable batteries and keep operating for about 48 hours.

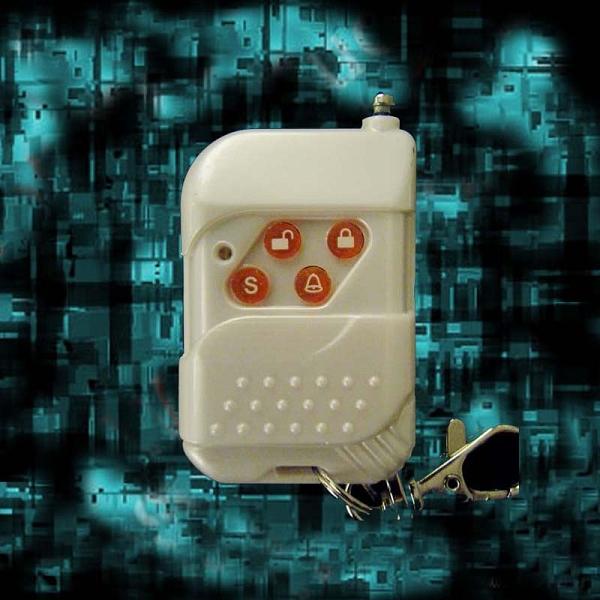

| buy it now! (49.5USD for an Extra one) |  | Wireless Remote Controller - Wireless Operating Range: 240 ~450 feet (open areas
- working Frequency: 315MHZ
- Power Supply: 1X23A battary
- Code Type: Fixed Code
- Dimension: 58X35X15 mm
FEATURES 4 Button Function Arm System Disarm System Panic Mode with Sound Panic Mode without Sound

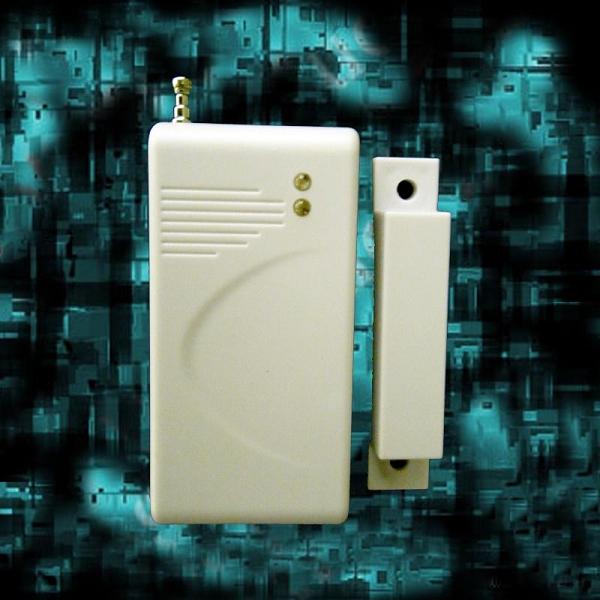

| | buy it now! (5.5USD for an Extra one) |  | WIRELESS DOOR/WINDOW SENSOR
- Power Supply: 1x23A battery
- Working Frequency:315MHZ
- Dimension: 70×35×15mm
Notice The max gap distance is 15mm
Do not fix the two device over 15mm
Make sure to fix them firmly, no vibration
When the LED keep on RED, means the power is low, need to replace new battary
| | buy it now! (6.5USD for an Extra one) |  |

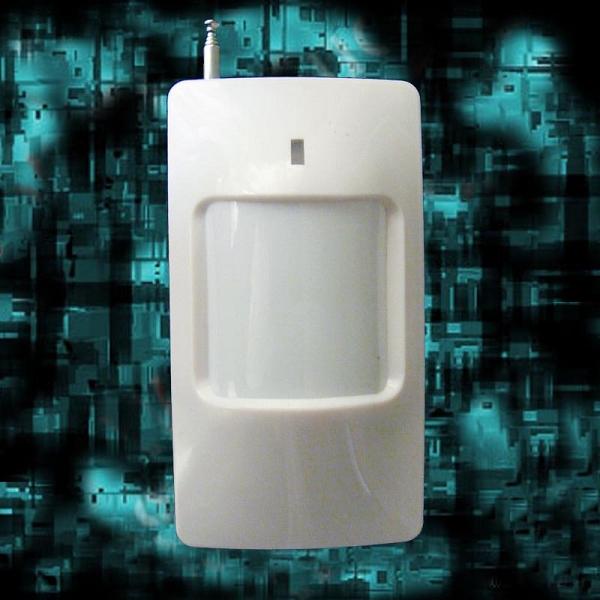

Wireless Motion Sensor
- Wireless Operating Range: 900 feet (open areas)
- working Frequency: 315MHZ
- Power Supply: 1X6F22 battary
- Detect Distance: about 8m
- Detect Angle: 110°;60°
- Working Temperature:-10°C~50°C
- Code Type: Fixed Code
- Dimension: 105X60X42 mm
Notice Do not face the motion sensor to light or window.( Anything hot or windy )
Do not mount the motion sensor near heat and fan
When the LED keep be Red means the battary in power low,need to replace.
| | buy it now! (9.0USD for an Extra one) | | | Wireless Motion Sensor
*PET IMMUNE
- Wireless Operating Range: 900 feet (open areas)
- working Frequency: 315MHZ
- Power Supply: 1X6F22 battary
- Detect Distance: about 6m
- Detect Angle: 110°;60°
- Working Temperature:-10°C~50°C
- Code Type: Fixed Code
- Dimension: 105X60X42 mm
Notice Do not face the motion sensor to light or window.( Anything hot or windy )
Do not mount the motion sensor near heat and fan
When the LED keep be Red means the battary in power low,need to replace.

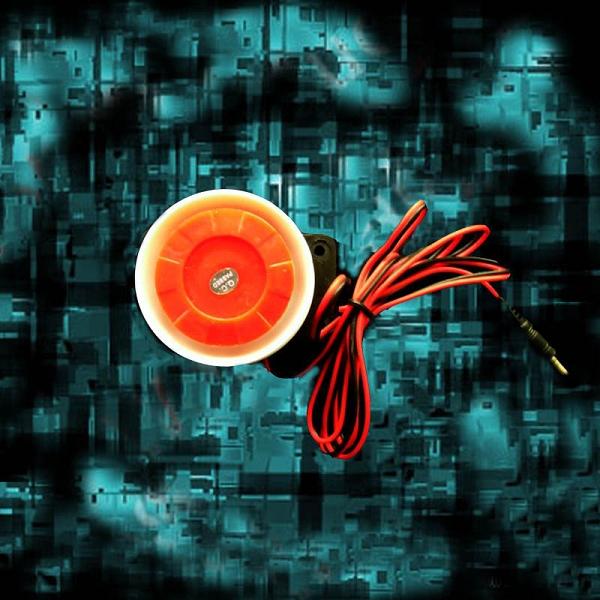

*Immune Limit: <20kgs (45lbs) | | buy it now! (14.0USD for an Extra one) |  | Wired Siren
Indoor - Loudness: 110dB
- working Currency: 150~200ma
- Power Supply: 9-12V
- Dimension: 55X55 mm
Notice While you connect the siren to the keypad,please switch off the keypad and unplug the power supply.
This is wired siren.
Indoor, not waterproof. | | buy it now! (6.5USD for an Extra one) |  |

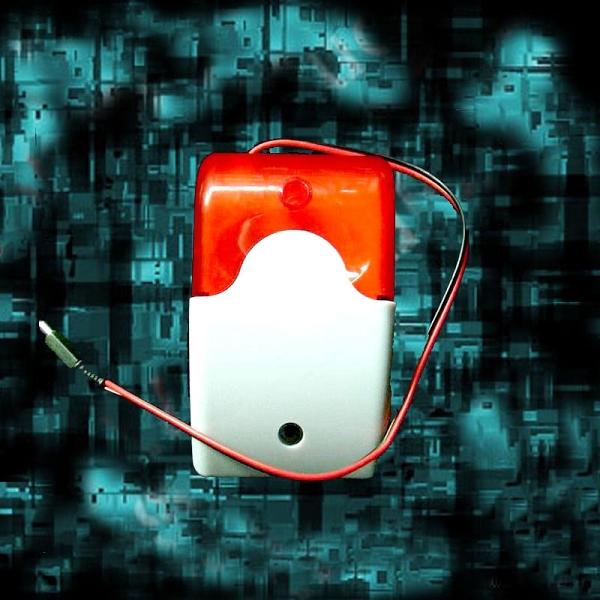

Wired Strobe Siren
- loudness: 110dB
- working Current: 300ma
- Power Supply: 9~12V
- Dimension: 125X75X50 mm
Notice While you connect the siren to the keypad,please switch off the keypad and unplug the power supply.
This is wired siren.
Indoor, not waterproof. | | buy it now! (13.0 USD for an Extra one) |  |

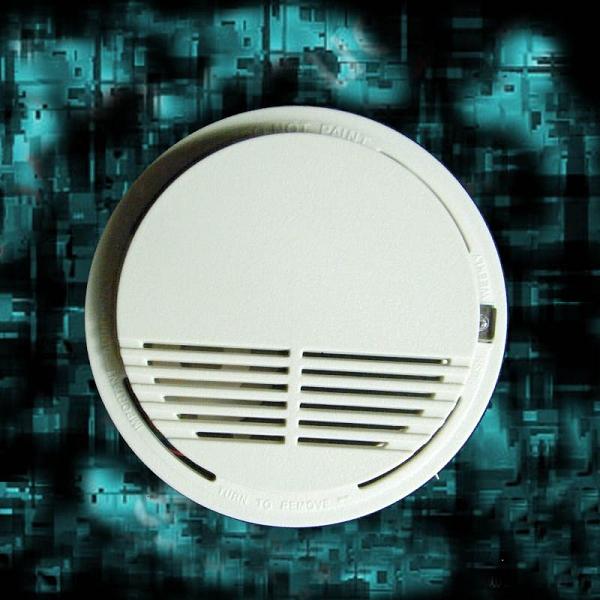

Wireless Smoke Detector
- Working Frequency:315MHZ
- Power Supply: 1X9V 6F22 battary
- Weight: 150 g
Notice
The button on the detector is for testing
Best position for install is the ceiling
Make sure the air linlet face to the area at risk | | buy it now! (17.0 USD for an Extra one) |  |

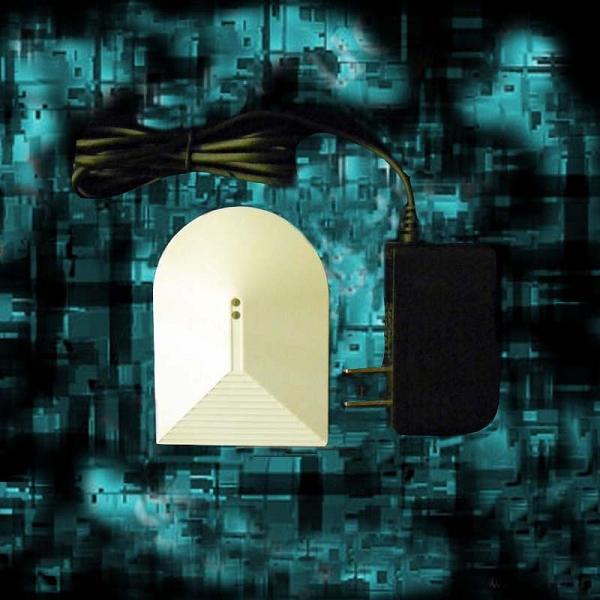

Wireless Glass Break Detector
- Working Frequency:315MHZ
- Power Supply: AC110~240/DC12V
- Weight: 150 g
- Detect range:about 15ft
Notice
It is able to distinguish between the sound made by lightening,pet's sound,and glass breaking sound
Best position for install is the ceiling or wall close to the window
Make sure not to install it directly on the window. on the glass. This will easy cause fause alarm once the window vibrate.
| | buy it now! (19.0 USD for an Extra one) |  |

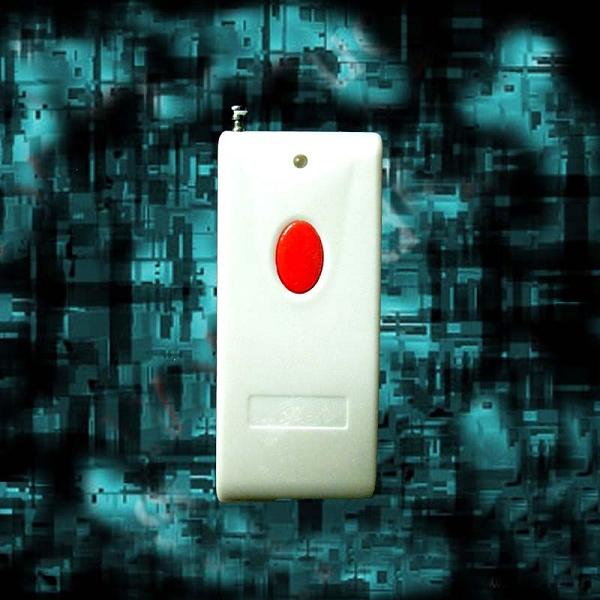

Wireless Panic Button
- Working Frequency:315MHZ
- Power Supply: 1X23A battary
- Emission distance: 300ft(in open area)
Notice
Normally this device will be programed to zone1st (with silent alarm mode) or zone 6th(with sounding alarm mode)
| | buy it now! (10.0 USD for an Extra one) |  |

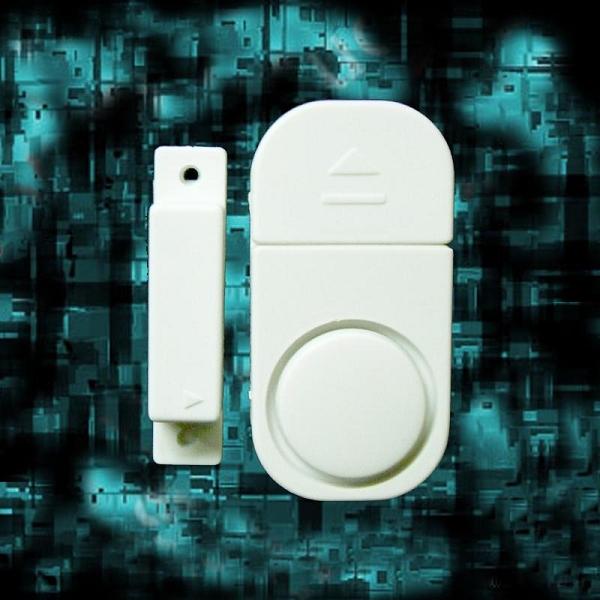

STAND ALONE CHIME
- Power Supply: 3PCS LR44 botton battery
- Loudness: 90dB
- Dimension: 60×30×23mm
Notice The max gap distance is 15mm
Do not fix the two device over 15mm
Make sure to fix them firmly, no vibration
This item work independently,need not be used with alarm system | | buy it now! (3.0 USD for an Extra one) |  | Wireless Outdoor Siren

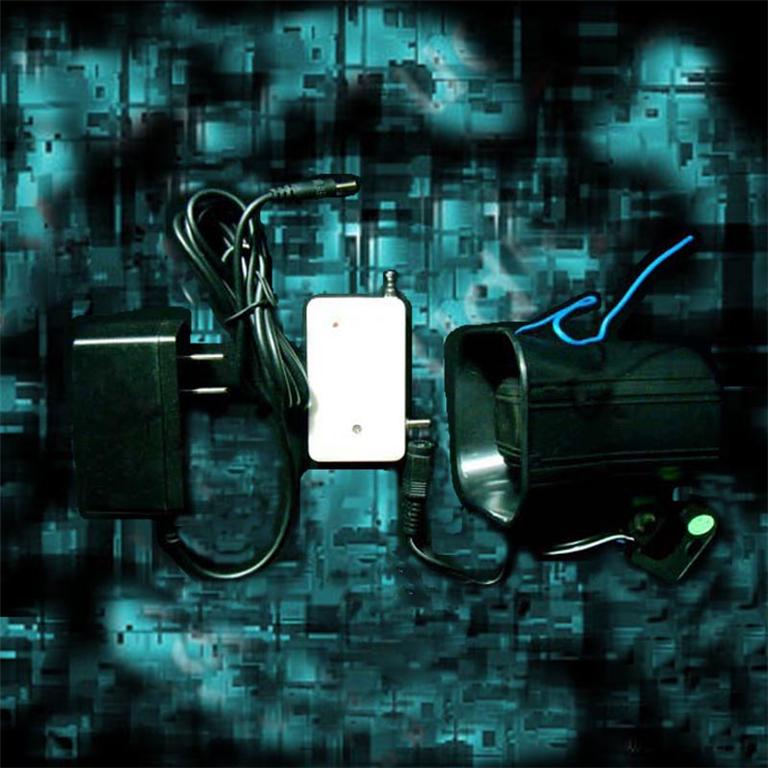

- loudness: 110dB
- working Current: 500ma
- Power Supply: AC110~240/DC12V
Notice While you connect the siren to the keypad,please switch off the keypad and unplug the power supply.
This is wireless siren.
not waterproof. | | buy it now! (24.0 USD for an Extra one) |  |

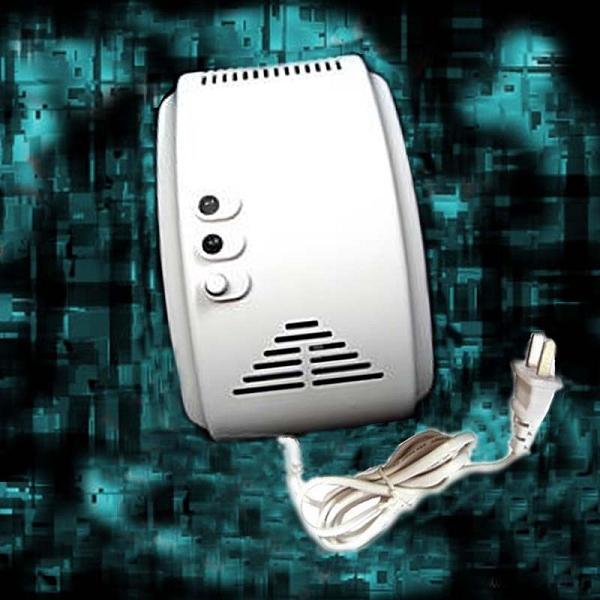

STAND ALONE GAS DETECTOR
- Soundness:85dB
- Power Supply: 220V 50HZ
- Operating temperature:-10°C - 50°C
- Humidity:<90%
- Natural gas,liquid gas
Notice
The button on the detector is for testing
Best position for install is the wall and ceiling close to the area at risk
Make sure the air linlet face to the area at risk | | buy it now! (21.0 USD for an Extra one) |  |

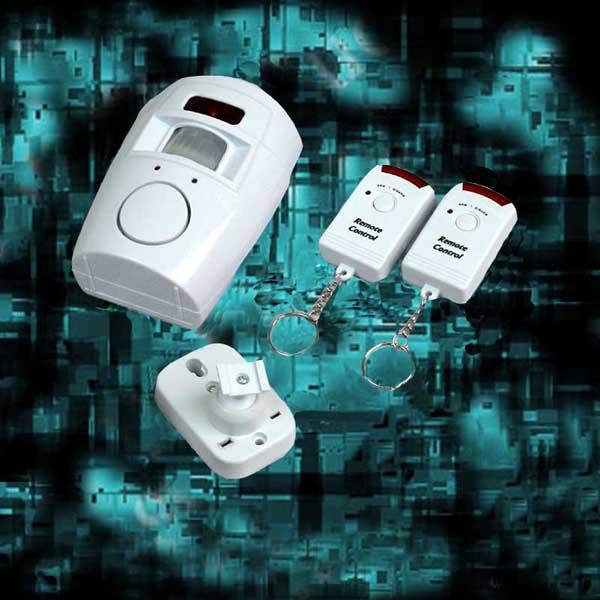

Wireless Motion Sensor
- Wireless Operating Range: about 5 meters (open areas)
- Power Supply: 4XAA battary (the battaries are not inclued)
- Detect Distance: about 8m
- Loudness:85dB
- Detect Angle: 110°;60°
- Working Temperature:-10°C~50°C
- Code Type: Fixed Code
Notice There is built-in Siren in the Sensor,it can sound locally with 85dB for 30s Do not face the motion sensor to light or window.( Anything hot or windy )
Do not mount the motion sensor near heat and fan Remote button: 1button (Arm/Disarm) | | buy it now! (20.5 USD for an Extra one) |

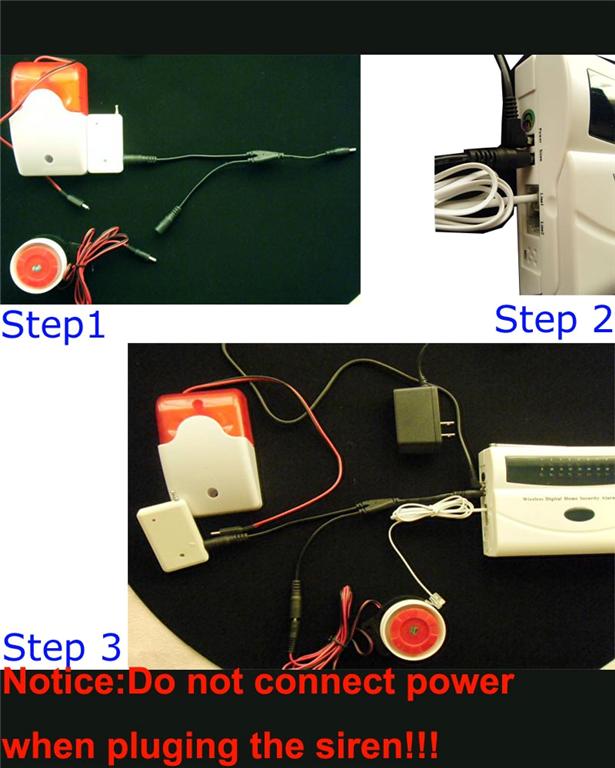

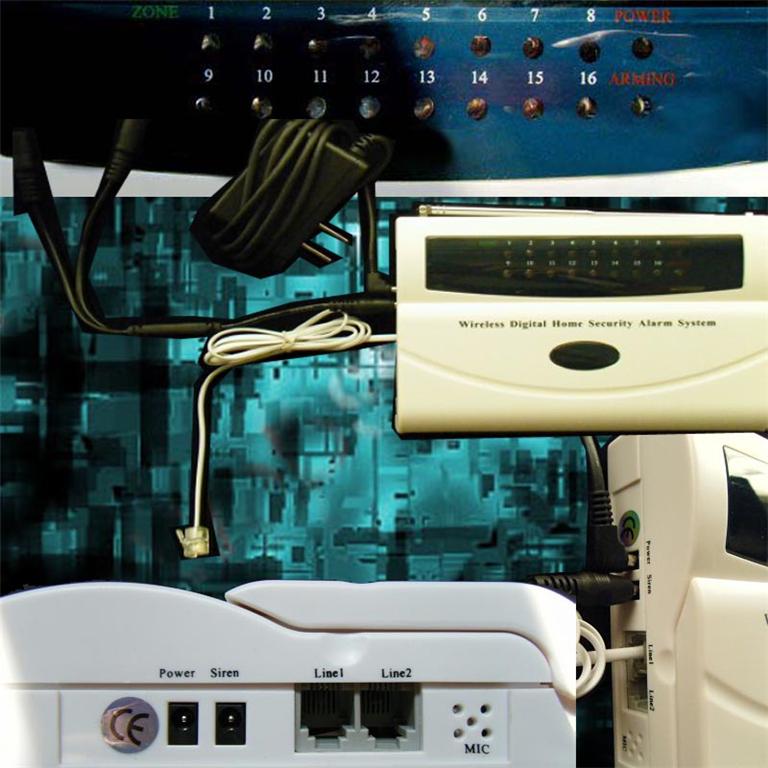

| | |  | ⇒Connect the wire hardwares [power,siren,phone] ♦Store alarm telephone number, and then you will get alarm in time when the alarm happens. "password1234 + sto" + group No.(1~6)+ "*" + "telephone number" + "sto"
♦Save alarm memo recording, so that the message will be send to the stored telephone number when the alarm happens to make right judgment and handle well.
" password1234+ rec"+(memo record)+ "rec"
⇒Install wireless Sensors [ For your convenience, the key pad and the sensors have already been encoded.They are matched with the Key Pad and set zones before delivery! ] ♦Set up door/window sensor: When you set up the window/door sensor, please fix the main body of the sensor and magnetic stripe separately. They can be fixed at the junction of door or window, as well as other places which you want to set alarm, such as drawer, file cabinet. ♦ Set up infrared motion detector: It is usually fixed in the guest hall, corridor, outdoor or other places which you want to set alarm. It’s very easy to install, only by fixing the screw. The angle shall meet with the detecting scope and distance.
* Detail please see the manual we send with the parcel or contact me ,I will answer all the technical questions * |
| 14 Wireless zones | As a wireless system, it is as simple as 1,2,3 to install. A user manual is included in the package and you don’t need to worry about how to configure any wires. | Multi-mode | Alarm delay mode: under this mode, the alarm will be triggered 30 seconds after detecting an unexpected movement; Instant mode: under this mode, the system can detect any smoke or gas leakage; the alarm will be triggered instantly. Intelligent mode: this mode is designed for some areas where users move around and the alarm will not be triggered. Each zone can be programmed to different modes. | Multi-control | The system can be controlled by wireless controllers, which are included in the package; it also can be controlled by telephone calls with password required. | | Users can pre-set up to 6 groups of numbers, in the case of an alarm, the system will automatically take control of the phone line (even it is busy) and make calls to the numbers saved in the system. | Anti-interfere | The system can detect any wireless interference automatically and the alarm will break out. | Anti-crack function | When this function is on, the system can not be controlled by remote controllers. | Password | 4 digit password gives you a good operational security. | Emergency button | The emergency button on the remote controller enables users to call for help at any circumstances. | Precedence function | As a default setting, the system, under guard status, will take control of the phone line and make calls to inform users, even when the phone line is busy. So intruders can not stop the alarm by calling the phone, etc. | Recording function | The system can take records in the flash memory, which can be stored permanently even it is out of power. | Silent alarm function | It can help users know the alarming quietly and arrest the thief silently. | Cut-line alarm function | If the alarm line or the telephone line is cut under guard status, the control panel will give an alarm. | Memory function | The system has built-in flash memory, with which, it will remember to status. For example, if it was on guard, and suddenly run out of power for some reason and then back on, the system will automatically stay at the guard status. | Built-in rechargeable batteries | The system has built-in rechargeable batteries. In the case that power supply is cut, the system can automatically switch to built-in batteries and keep operating for about 48 hours. |
How to use ? √ Set guard and withdraw
This alarm system can be divided to Sixteen alarm guard areas.Each guard area can configured with several door entry detectors ,gas leakage detectors and smoke detectors.By setting on the main alarm set each guard area can be opened or closed as you needed.
When a guard area is set closed m,its alarm messages will not send out.
√ Emergency alarm function
When met emergent event, you can press the emergency key, the system will immediately put into emergency alarm state, if you press the emergency key on the remote controller, the system’s siren speaker will give out loud sound as well as dial out the pre-stored telephone number and if you press the emergency key ”S” on the remote controller , the system’s siren speaker will not give out loud sound but bial out the pre-stored telephone number as usual.
√ Alarm process
When alarm broke out,the horn will resound as you turn on this function, the system will automatically dial out the pre-stored telephone number and send pre-recorded memo messages to the alarm messages receive telephone.
√ Telecommunication setting by telephone
If you need to operate the alarm system far away, you can dial the alarm system by any other telephone, after hearing eight times ring-back sound ,the alarm system will automatically hook off,you can set the alarm system by input digital numbers on the telephone you used. First ,input four digits password code on your called telephone not more than ten seconds ,then follow the manual to operate…… √ Infrared detector installation and use
Open the power switch on side of the detector at first. Mounting height is adjust to 2.2m or so.Mounted on the corner of the room is preferable,and its detecting direction perendicular to the people walking direction will have best effect.Take out the bracket in the accessories and fix it on the wall,fix the detector to the bracket and adjust its detection angle to best position.
!!The following aspect should be noticed.
1.The infrared detector should not direct to outward window
2.Obstacles on its front lower the signal capturing.
3.More than two infrared detectors should not be installed on the same area
4.Strong wind flow , fire , radiator should be avoided, for it may trigger mis-alarm.
5.When the infrared detector powered up , it will take five minutes to adapt itself to normal working mode
6.The infrared detector can only used in closed room,not used in out door. √ Door entry detector (Magnetic switch & Emitter) Installation and Use
The emitter of door entry detector is mounted on the edge of moveable door,and the magnetic bar is mounted on the fixed doorframe. The two pieces of devices must be not more than 1cm distance when the door closed.
The magnetic bar must be installed near to the emitter side of LED indicator.
When the door opened from the closed position, the emitter’s upper LED indicator will light up for one second, this means the door entry detector works well.
The upper LED indicate sending alarm message to the main auto-dialer,the lower LED indicate the power supply is low battery.
Encoding and decoding method of the wireless alarm system This alarm system use wireless transmission style to communicate with its wireless detectors.To protect each alarm system form interfering each other,the wireless signal can use different encoding style for different alarm system. You can add detectors to an alarm system by encode the detectors.As you can see below:
There are also 36 metal pins on the side of the electronic circuit board.This 36 metal pins are used to encode the 8 bit address code and 4 bit zone code.
[Detail please see the manual we send with the parcel or contact me ,I will answer all the technical questions] *If you want to add detector to your alarm set ,there will be two method ,the first method is to configure the detectors according to the short jumper slip setting way same as the detectors in your standard kit; The second method is to set the 8 bit address code from the “Product No” on the bottom of your alarm set, and encode 4 bit zone code following the schematic diagram[In the manual] as you need…… The wireless smoke detector and gas leakage detectors each has an wireless emitting module inside the plastic cover. There are also 36 pins to set the 8 bit address code and 4 bit zone code on the emitting module.
The 8 bit address code is on the bottom side ,and the 4 bit zone code is on the right side , the 8 bit address code is also same as infrared detectors for the same alarm set , but we can set the 4 bit zone code as 24 hours guard zone , of course you can also set the zone code as zone 1,2,3,4,as you like. The 24 hours guard zone will report alarm messages even if you withdraw guard.
A wireless emergency button is generally configured as 24 hours guard zone in the same method.
|

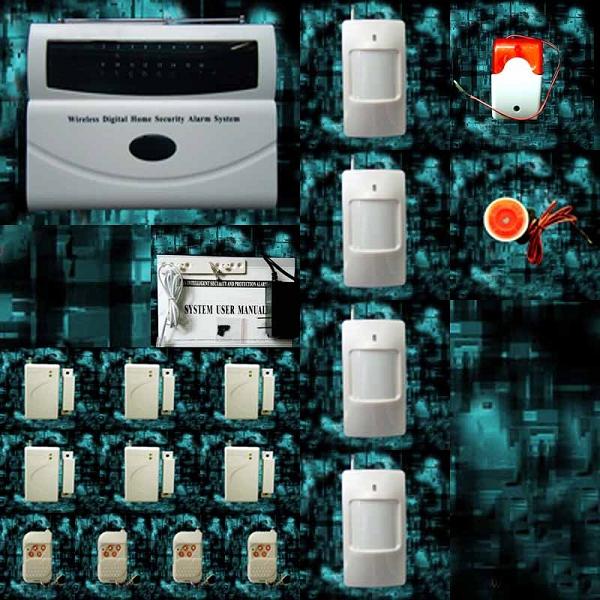

| | ♦♦♦Package |
1 X All-in-one keypad 4 X Remote 6 X Door/Window Sensor 4 X Motion Sensor(PIR) 1 X Wired Siren
1 X Wired Strobe
| | 1 X English manual | | 1 X Phone cord | | 1 X Power (according to buyer's country) | | | *you can add more detectors according to your requirement, it is very simple, just leave the encoding work to us. Your100% satisfaction is our goal.
|
|
|
| ♦♦♦Payment | | We accept paypal only |  |
Buyer must pay within 7 days after winning the auction , otherwise the buyer will consider as a non-pay buyer , it may result in negative feedback for the buyer, this may affect your account.
Total Amount Due is the Final Auction Price plus Shipping and Handling fee.
Be noticed that our price does not include taxes, VAT, or other hidden charges. We will do our best to avoid incurring any tax, however, it is buyer's responsibility to pay for any tax incurring by customers.
Please read our policy before bidding, any bidder will be considered as accepting our policy.
|
|
| | ♦♦♦Shipping and handling | FREE POST! pay exactly the price you bid. We ship by express mail from China . Delivery time as follow: | Country: | Deliver Time | Post method | POSTAGE | | U.S.A | 4-8 days | USPS | FREE |
Only Ship to USA! +any VAT levied by your own country's Customs, it is not seller's responsibility for this extra cost. |
Item Will Be Shipped Within 48 hours after the Payment is Verified. However Some times the date will be delayed because of some exceptional case such as "public holiday", "accident of delivery", "bad weather" etc. We will email you if these happened. We will send to the address provided by ebay Checkout, so please do fill in the correct address for a fast delivery! If you enter the wrong dress or No one pick up after sending many times to you ,most likely it will be sent back to us. Then we will resend it to you at your expense. We are not directly liable for any loss, theft, or damage to any goods, it strongly recommend buyer to apply for insurance option. We will NOT be responsible for any delay during delivery because of "public holiday", "accident of delivery", "bad weather" etc. No pickup is available! And no PO address is accepted!
|
| | ♦♦♦Terms Of Sale | | 1 year warranty against manufacture defect. | | 14 days return policy. Please report within 3 days after recieving the item if it is not as described. | | Unauthorised returns will be ignored. The return policy does not cover accidental damage due to misuse, abuse or improper care. | | Buyers are responsible for the postage and transport costs of returning any faulty products. | Buyers are responsible to know the Customs Laws of your Country as far as items that are prohibited for entry. Please also note that buyers are responsible for all taxes, duties, VATs levied by your own country's Customs. | | Please do check these terms before you buy or bid on this item. |
|
| | ♦♦♦Contact US | Please do contact us if you have any issue, we will answer you and solve it ASAP. Before you leaving a NEUTRUAL feedback or NEGATIVE feedback please contact us first ,you should believe that we will try our best to solve all the problems. eddie.guoyuzi@gmail.com |
| | ♦♦♦Question & Answer | | Q1:Do I need to connect the keypad to power adaptor? | | A1:Yes, I recommend you use the power adaptor instead of battary. Because power adaptor is more stable, battary is just for back up | | Q2:How to activate the system? | A2:First ,connect the power adaptor to keypad, and put all battary in the sensors, turn on the sensors; remember that the default password is : "1234" | | second, prestore at least one phone number into the keypad: Press password[1,2,3,4] +sto [1~6] +* + phone number+ sto | | Third, try to full arm all the sensors: press "lock button" on the remote; or press "password1234"+"Full arm" on the keypad. | | When the sensors detect something ,the siren connected to the keypad will sound. Press Unlock button on the remote to stop | | siren sounding. | | Q3:What means full arm, disarm , part arm? How to use these function? | | A3: This system has 14 zones. | | *zone 1, and zone 6 are always used for panic button, because they are always on work, no matter the user disarm or full arm the system. When use press panic button , the siren on the keypad will sound. | *zone 2,3,4,5 are independent zones, they are used for part arm. When user use part arm function, the zone 2,3,4,5 will be closed. Other zones can still work. So if you set PIRs on zone 2,3,4,5, when you are home you want to turn off the sensors in the house, you can part arm the system, then the zone 2,3,4,5 will turn off , but other zones can still work, means the sensors set outside the house, like door/windows sensors can still work , still protect you. | *When user leave house, he want to make all the sensors work, just Press the lock button on the remote to make it full arm. |
| | Q4:How to store the phone numbers for autodialling? | | A4: You can store six phone numbers into the system Press password[1,2,3,4] +sto [1~6] + * + phone number+ sto | | Q5:How to clear the prestored numbers? | A5: Press password[1,2,3,4] +sto [1~6] + * + sto | | Q6:How to record voice into the system for autodialling? | | A6: Press Password[1,2,3,4] + rec+"your message" +rec (Speaking time not more than 10 sec) | | Q7:How to change Password? | | A7: Press Password[1,2,3,4]+"Pro"+"9"+"Pro"+"New password" | | Q8:How to use keypad to fullarm , disarm, partarm? | A8: Press password[1234] +"fullarm" then all the sensors are open. Press password[1234] +"partarm" then Zone 2,3,4,5 will be closed, sensors in these zones will be closed, other zone's sensors are still open. Press password[1234] +"disarm" then all the sensors are closed. But the zone1 and zone 6 wont will be closed, because these 2 zones are always on work, they are used for panic buttons. |
|
|
|
|
|
|
|
