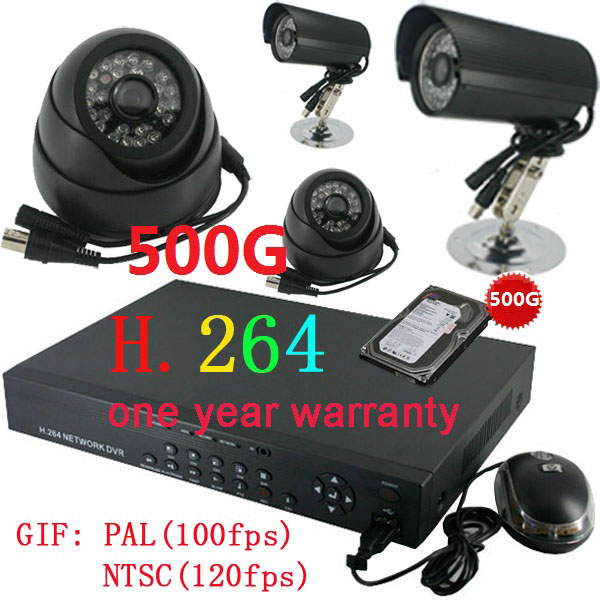

4CH CCTV Surveillance DVR System
H.264 4-CH Stand-Alone DVR With 500G HDD
Support: English, Finnish, French, German, Greek, Italian, Japanese, Poland, Portuguese, Russian, Spanish, Thai, Chinese, traditional Chinese
BNC 4-channel inputs(1.0Vp-p,75ohm)/1-channel outputs(1.0Vp-p,75ohm)
RCA 1-channel Audio inputs(200-2800mV,30Kohm)
1-channel Audio outputs(200-3000mV,5Kohm)
1ch Sensor input 1ch Alarm output
3 USB 2.0 Port
1-VGA Output
RS485 PTZ Control
Mobile View Access Function
---Supply WIFI,USB CD Writer---
The HDD can be up to 2X 2TB
Web server and IP/TCP
|
|
1,Special waterproof designed
2,420 TVLines High resolution
3, 0 lux with 36PCS IR LED
4, Auto gain control & BLC
5, Sensing Area:6.mm
|
|
CCD 36 PCS IR LED waterproof bullet Day/Night Security Camera
|
|
Image Sensor
|
1/4" Sharp Color CCD
|
|
Horizontal Resolution
|
420 TV Line
|
|
Pixels
|
PAL:512(H) x 582(V)
NTSC:512(H) x 492(V)
|
|
TV System
|
PAL/NTSC
|
|
IR LED
|
36PCS
|
|
IR Series Distance
|
100(M)
|
|
Sync System
|
Internal
|
|
IR Status
|
F1.2/1.0Lux
|
|
Usable Illumination
|
0 Lux (LED ON)
|
|
IR Power On
|
CDS Auto Control
|
|
S/N Ratio
|
48dB (AGC OFF)
|
|
Video Out
|
Composite Signal (1.0Vp-p, 75ohm)
|
|
Scanning System
|
PAL:15.7343khz(V), 50hz
NTSC:15.625khz, 60hz
|
|
Electronic Shutter Time
|
Auto:PAL 1/50-1/100,000Sec;
NTSC 1/60-1/100,000Sec
|
|
White Balance
|
Auto
| | | |
 |
|
1,Special designed
2,420 TVLines High resolution
3,0 lux with 24PCS IR LED
4,Auto gain control & BLC
5. 3.6mm
|
|
CCD 24 PCS IR LED bullet Day/Night hemisphere Security Camera
|
|
Image Sensor
|
1/4" Sharp Color CCD
|
|
Horizontal Resolution
|
420 TV Line
|
|
Pixels
|
PAL:512(H) x 582(V)
NTSC:512(H) x 492(V)
|
|
TV System
|
PAL/NTSC
|
|
IR LED
|
24PCS
|
|
IR Series Distance
|
100(M)
|
|
Sync System
|
Internal
|
|
IR Status
|
F1.2/1.5Lux
|
|
Usable Illumination
|
0 Lux (LED ON)
|
|
IR Power On
|
CDS Auto Control
|
|
S/N Ratio
|
48dB (AGC OFF)
|
|
Video Out
|
Composite Signal (1.0Vp-p, 75ohm)
|
|
Scanning System
|
PAL:15.7343khz(V), 50hz
NTSC:15.625khz, 60hz
|
|
Electronic Shutter Time
|
Auto:PAL 1/50-1/100,000Sec;
NTSC 1/60-1/100,000Sec
|
|
White Balance
|
Auto
| | | |
| Features of The DVR |
-
H.264 real-time high compression, Using advanced space-time filtering algorithm Technology Code stream decreased more than 30% than MPEG-4
-
High Definition video Low Bit-rate Coding synchronized video and voice
-
Stand-alone Linux2.6 operation system
-
real time recordings Multi-Channel synchronous playback maximum 4 Channel synchronous playback
-
Support remote view with Mobile Phone Support twelve languages at least
-
support USB Interfaces support USB mouse. back-up. burn. Upgrade
-
like Graphics & Windows OSD interface
-
Support D1, HF-D1,QCIF and CIF recording resolution
-
Support sextuple operation: visual recording, playback, realtime video monitoring , backup, control, remote view
-
Support to backup & upgrade By USB flash disk. MobileHDD
-
Support DHCP, PPPOE,FTP,DNS,DDNS,NTP,Email,IP permissions,IP Search,Alarm center
-
Support talkback, WIFI ,Perfect supporting WEB client-side SDK
-
The perfect high capability is protected the circuit particular treble watchdog lowest power Ensure the Machine not to crash
-
unique“Black Box“technology To monitor the equipment
-
only 4G of HDD every channel and every day. The HDD can be up to 2 x 2TB
|
| Specification of The DVR |
|
Controller
|
industry-specific Embedded Microcontroller
|
|
SIZE
|
315 (length) x 240 (width) x 45 (height) mm
|
|
Video Compression
|
H.264
|
|
Video System
|
NTSC / PAL
|
|
Operation System
|
Linux2.6
|
|

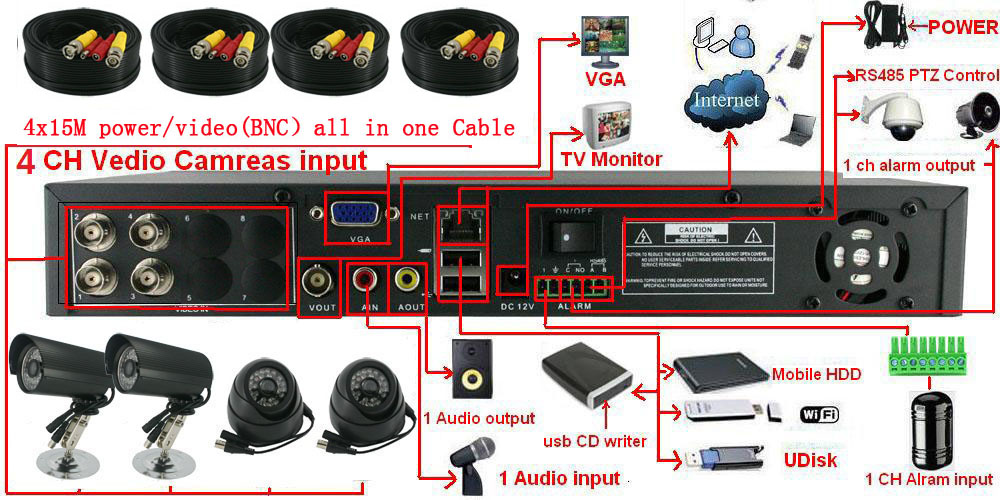

Video Input / Output
|
BNC 4-channel inputs(1.0Vp-p,75ohm)/1-channel outputs(1.0Vp-p,75ohm), 1-VGA Output
|
|
Audio Compression
|
G711A
|
|
Audio Input / Output
|
RCA 1-channel inputs(200-2800mV,30Kohm)/1-channel outputs(200-3000mV,5Kohm)
|
|
code capacity
|
CIF: PAL/NTSC 100/120fps D1: PAL/NTSC 50/60fps
|
|
Recording Mode
|
Always / schedule / motion detection / sensor triggered
|
|
Playback Resolution
|
CIF : PAL /NTSC (352×288)/(352×240) (real time)
D1: PAL/ NTSC (704×576)/(704×480) (Non-Real Time)
|
|
Monitor Resolution
|
PAL,D1(704×576) NTSC,D1(704×480)
|
|
graphic display
|
1/4 graphic display
|
|
Recording Mode
|
manual/ alarm/ dynamic detection/ timing
|
|
HDD Capacity Computing
|
Audio:28.8M Byte/hour + video: 25~450M Byte/hour (every channel)
|
|
Motion Detection
|
Each screen can be set 396 (22X18) detection area
|
|
local playback
|
single channel/Multi-Channel synchronous playback (maximum 4 Channel synchronous playback)
|
|
video inquiries,and review
|
Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
|
|
HDD Interface
|
2 SATA, 3 USB2.0
|
|
SD cards
|
Some of DVR System can support
|
|
Ethernet
|
RJ45, 10M/100M
|
|
Network Protocol
|
Support TCP/IP, UDP, DHCP, DNNS, PPPOE etc.
|
|
Network Function
|
Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely
|
|
USB2.00
|
USB mouse, USB disk (backup, upgrade)
|
|
Playback Mode
|
Normal play, fast forward, fast rewind, frame by frame
|
|
Backup
|
Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
|
|
PTZ Control
|
Built-in RS485,support PELCO-P & PELCO-D, 1 RS232,
|
|
Alarm Mode
|
Motion Detection, Sensor triggered, video loss, HDD error, HDD full
|
|
Senor & Alarm I/OO
|
1 sensor inputs / 1 alarm output
|
|
Power Supply
|
DC 12V/5A (power adaptor included)
|
|
Power Consumption
|
6~10W
|
|
Working Temperature
|
-10°C to +55°C
|
|
Working Humidity
|
10% to 90%
|
|
atmos
|
86kpa~106kpa
| |

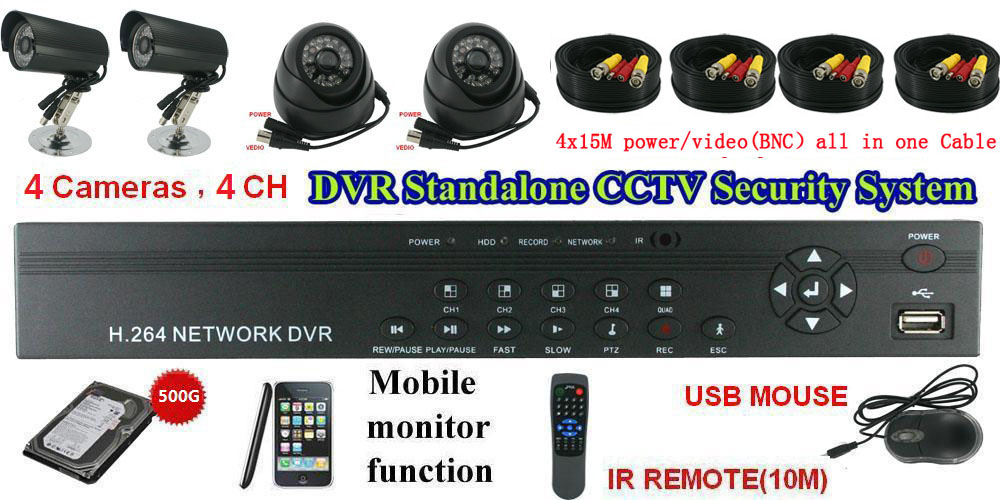

| Package include |
|
Description
|
Quantity
|
|
|
H.264 Network 16CH DVR Standalone with 500G HDD
|
1
|
|
|
1/4 Sharp CCD waterproof bullet security Camera with Bracket
|
2
|
|
|
1/4" Sharp Color CCD 24 IR LED Day/Night hemisphere Security Camera
|
2
|
|
|
15M power/video all in one Cable
|
4
|
|
|
1 PCS DC12V 5A professional power supply for DVR System
|
1
|
|
|
1 PCS USB Mouse for DVR System
|
1
|
|
|
1 PCS IR Remote for DVR System
|
1
|
|
|
1 PCS Alarm connector plug for DVR System
|
1
|
|
|
4 PCS DC12V 1A professional power supply for Cameras
|
4
|
| |
| main menu (operation for Chinese , English.........< twelve languages>) |
4 graphic display |
 |
 |
| 4 graphic display (Network remote) |
remote view with Mobile Phone |
 |
 |
