Brand New D-Link DNS-323
2-Bay Network Storage Enclosure
•
D-Link Green Verified Product
•
Secure and Share Your Digital Files
•
Insert Either One or Two Internal 3.5” SATA Hard
Drives without Using Any Tools or Attaching Any
Cables1
•
Protect Your Important Files with Mirrored Hard
Drives Using RAID 1 Technology2
•
Access Stored Files over The Internet
Specifications
Standards
•
IEEE 802.3 10 Base-T Ethernet
•
IEEE 802.3u 100Base-TX Fast
Ethernet
•
IEEE 802.3ab 1000Base-T Gigabit
Support Hard Drive Type
•
SATA*
•
3.5” Internal
Ports
•
1 10/100/1000 Gigabit Ethernet
Port
•
Jumbo Frame support up to 9000
Bytes**
•
1 USB Print Server Port
•
Power
Drive Management
•
Four Different Hard Drive
Configurations
•
Drive Status with Email alerts
•
Drive Quotas
•
Power Management
Device Management
•
Internet Explorer v6 or other
Java-enabled browsers
LEDs
•
Power
•
LAN
•
HDD 1
•
HDD 2
Certifications
•
FCC Class B
•
CE
•
VCCI
•
CSA
Operating Temperature
•
32° to 104°F (0° to 40°C)
Operating Humidity
•
90% Maximum (Non-condensing)
Dimensions
•
Item: (W x D x H) :4” x 7.8” x
5” (101.6mm x 198.1mm x 127mm)
•
Packaging: (W x D x H): 11” x
8.3” x 7.3” (279.4mm x 209.6mm x
184.2mm)
Weight
•
Item: 2.7 lbs (1.2 kg)
•
Packaging: 5 lbs (2.3 kg)
D-Link Warranty
•
1-Year Limited***
Minimum System Requirements
•
Computer with:
•
1GHz Processor
•
512MB RAM
•
200MB of Available Hard
Disk Space
•
Windows Vista® or
Windows® XP SP2
•
CD-ROM Drive to view
Product Documentation
and Install Software
Package Contents
•
2-Bay Network Storage Enclosure
•
Power Adapter
•
Ethernet Cable
•
Installation Guide
•
CD-ROM**** with Software and
Product Documentation
* Hard Drive(s) not
included. An internal SATA drive is required to store or
share your files; drive must be formatted before use.
** Jumbo Frame Support for 9000 bytes is applicable in
Gigabit mode only. Use of Jumbo Frame feature requires
the PC to have gigabit NIC that supports Jumbo Frames.
Jumbo Frames performance may be affected when used in
10/100 Fast Ethernet mode.
*** 1-Year Limited Warranty available only in the USA
and Canada.
**** Latest software and documentation are available at
D-Link Tech Support site.
Overview
SAFELY SHARE DIGITAL FILES
LOCALLY AND OVER THE INTERNET
The D-Link® 2-Bay Network Storage Enclosure (DNS-323)
when used with two internal 3.5” SATA drives1
enables you to share documents, files, and digital media
such as music, photos, and video with everyone on your
home or office network. With the built-in FTP server3,
you can access your files remotely over the Internet
from anywhere in the world and keep data safe by only
giving rights to specific users or groups. When
configuring the DNS-323, you can create users and groups
and assign them to folders with either read or
read/write permissions.
This is ideal for an office environment with
employee-specific sensitive data or for the home where
you can ensure your children will only have access to
age appropriate material. With the built-in USB print
server port, you can add a USB printer to your network
without a dedicated computer so anyone can print from
anywhere on the network.
STREAM DIGITAL MEDIA CONTENT TO UPnP™ AV COMPATIBLE
MEDIA PLAYERS
The DNS-323 includes the latest BitTorrent® software
support so you can access and store digital media from
the Internet without the need for a dedicated PC to be
turned on or connected. The DNS-323 connects directly to
your home or office network and acts as a media hub for
BitTorrent-enabled content. The DNS-323 also acts as an
UPnP™ AV media server that streams media to a compatible
player (such as those found in D-Link’s MediaLounge™
product line).
PROTECTION, PERFORMANCE, AND FLEXIBILITY
Four different hard drive modes (Standard, JBOD, RAID 0,
RAID1) enable you to choose the configuration best
suited to your needs. Standard mode creates two
separately accessible hard drives. JBOD combines both
drives in linear fashion for maximum space efficiency.
RAID 0 combines both drives in a ‘striped’
configuration, which provides the highest performance.

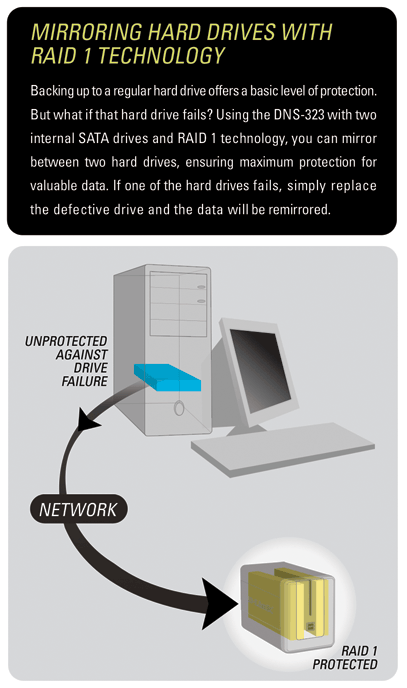

RAID 1 causes the drives to mirror each other, providing
maximum protection. If one drive fails while configured
as RAID 1, the unaffected drive continues as a single
drive until the failed drive is replaced. The new drive
will then be remirrored, returning full protection to
both drives after it has been mirrored.
SIMPLIFIED MANAGEMENT
The DNS-323 can automatically back up your data
regardless of your computer’s operating system
(Windows®, Mac®, or Linux®). For Windows users, the
included feature-rich backup software can help you
create schedules and rules including real-time full or
incremental backups and storage quotas for specific
users and groups. The DNS-323 also features a built-in
FTP server3 to access files through the
Internet, enabling you to manage your files from
anywhere in the world.
The 2-Bay Network Storage Enclosure (DNS-323) is a high
performance, cost-effective solution that provides
protection, performance, and flexibility along with
simplified management and gigabit connectivity, perfect
for your home and small business data storage needs.
WHAT THIS PRODUCT DOES
The D-Link 2-Bay Network Storage Enclosure (DNS-323)
when used with internal SATA drives1 enables
you to share documents, music, photos, and video across
the network and on the Internet so family members,
friends, or employees can access them. This network
storage enclosure creates a central network point for
backing up valuable files and the built-in RAID 1
mirroring technology1 protects these files
from drive failure. You can also use this device to
stream photos, music, and videos to UPnP AV compatible
network media players4.
ROBUST SOFTWARE INCLUDED
The included CD contains the D-Link Easy Search Utility.
This utility allows access to the DNS-323 from anywhere
on the network. A feature-rich backup software is also
included. You can backup valuable files from a computer
to the DNS-323 in real-time, manually or on a schedule.
Real-time backups are a great way to safeguard against
unfortunate accidents that may result in the loss of
precious files.
1. Hard Drive(s) not
included. An internal SATA drive is required to store or
share your files; drive must be formatted before use.
2. RAID 1 mirroring requires the use of two (2) internal
SATA drives. To avoid data incompatibility in RAID 1
operation, use SATA drives from the same manufacturer.
Formatted drive capacity for RAID 1 operation is
dependant on the drive capacity of the lowest-sized
drive. May not work with older generation SATA drives.
For a list of SATA drives that have been tested to work
with the DNS-323, visit
D-Link Tech Support site.
3. Unless additional precautions are taken, use of an
FTP Server to access files over the Internet does not
provide for secure or encrypted transmissions. It is
recommended that the end-user utilize a Virtual Private
Network (VPN) to establish a secure FTP session.
4. D-Link cannot guarantee full compatibility or proper
playback with all codecs. Playback compatibility depends
on the codec support of the UPnP™ AV media player.
