Garage Gate Door Opener Open Kit RFID card/PC LAN NEW

GR: DEFAULT_GROUP

IT: RFIDCOMBOA7

DESCRIPTION

We ship direct from USA

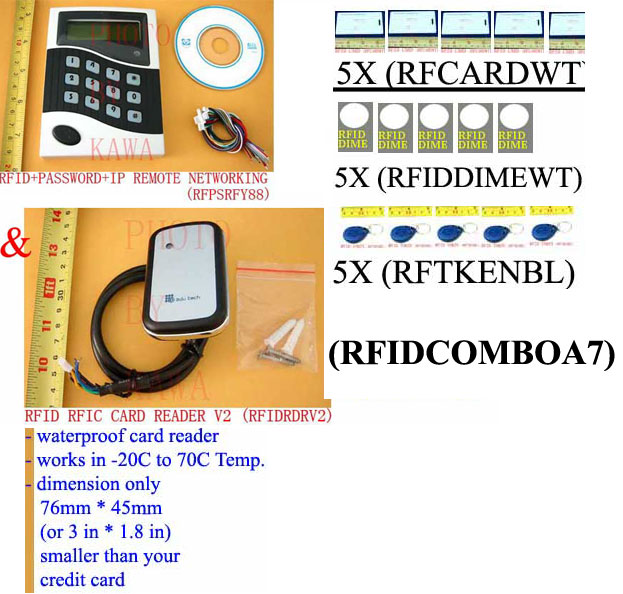

Picture 1:  What you see above is what you get.

Package comes with

1. RFID Access Controller with networking function via RS485 to RS232 adapter (not included)

2. RFID Card Reader .  Click this icon to view the manual.

   .

3. Cables

4. 5 pieces of RFID Card per set  (click icon to buy more) rated 125KHz

5. 5 pieces of RFID Tags per set  (click icon to buy more) rated 125KHz

6. 5 pieces of RFID "dime" per set  (click icon to buy more) rated 125KHz.  Please note that the real dime (on the right) is not included in this package.  The real dime in the picture is for size illustration only!

PRODUCT DESCRIPTION

Offered here is a ONE (1) new good quality   RFID Access Controller & RFID Card that permits door access via password or RFID card or both.  This console can work either as standalone or by connecting to a computer PC (Windows) via RS485 to RS232 adapter (not included). You don't have to attach it to a computer in order to use it, set it up or program it.  It can store 25,000 records when standalone, and the record will not disappear even when the unit is not powered for 10 years or more!     It can support access control.  You can set the door to open at different time and by certain number of people.  It will raise an alarm when someone tries to destroy it or wrongly close/open the door that violates the pre-programmed instructions in the console.  It supports RS485/RS232 communication interface to connect to a computer PC.  The maximum number of this console that can connect to a computer terminal is 255.  Will also connect to your router / switches / etc, so that any computer with privileged password can remotely change the setting in the console.  It shares many similar functions as our fingerprint module (click on this icon: to learn more) except that it does not have fingerprint function and has RFID card function instead.

With your computer, you can manage user ids/RFID into major groups, each groups having different settings as to the time/date access privileges.   After setting up, you don't need to connect the console to your computer to run it, since it can run independently of the computer.

The beauty of this console is that it can be connected to two pieces of waterproof external RFID mini card reader (included) at the same time via the Wiegand 26 port found at the back of the console.  If you only connect one external card reader, you can put the external card reader on the outside of your door, and put this "RFPSRFY88CD" console on the inside of your door.  If you attach two external waterproof RFID mini card reader, then the RFID function on the console will be turned off since the two external card reader will take over the RFID card reader job.

1) All-purpose and wide application.  The product is integrated with PWD keyboard, single door controller, time recorder and double door controller.

2) Advanced technology, stable and reliable.  All input and output pots can prevent shock from static and power. It has strong anti-interference ability and has power failure resisting design. The PCB board has moisture proof and corrosion protection and can adapt to different rough weather.


3) Dynamic definition, flexible application. One build-in card reader (EM or Mifare), two sets of W26 interface, two sets of sensor input, two sets of button input, two sets of relay output, one set of bell port and one set of RS485 communication interface.
Re-define the IO interface. For example, W26 port will be defined as W26 standard output or input, the relay can be defined as door controller, bell or alarm output, the sensor can be defined as fire alarm signal.


4) Support hardware upload data on-line

5) Includes door close/open status monitoring function, so that you can monitor online whether your door is open or close.  Will work with this electric strike that comes with monitoring function:


KEY FEATURES:

Options to open door includes:
1. Password Only

2. RID Card  Only (RFID token ( or ) you can register and deregister various RFID Card/passwords ( i.e. if you need to deactivate someone's access)

3. Password & RFID Card /token (click icons to purchase)



TECHNICAL SPECIFICATION
Working voltage: AC/DC 8~25V
Power consumption: <1W
Data saving: >10 years (after power failure)
Total user entry records: 25000 pieces (adjustable)
User capacity: 2500 user id

LCD resolution: 122x32 DOTS
Build-in word base: 16x16 national class two character base.
Communication mode: One RS485
Relay output: Two
State input: Four
Card reading type: EM compatible or MIFARE
Induction distance: 4 to 15cm
Networking capacity: 255 sets
Working temperature: -20celcius to +70 celcius
Storage temperature: -25celcius to +85celcius

Working humidity: 20%-90%
Wiegand 26 port: Two.

Dimension: 119mm*87mm*15mm

Also included in the package is a ONE (1) new good quality RFID Access Controller.

This unit has the following advantages:

1. High performance.

2. Anti-interference capability / High stability

3. FTP support 26 bit Wiegand, permits maximum distance of 50m from card reader to this console  (included)

4. Read RFID card (sold separately)

5. Waterproof. works in -20C to 70C environment.

This unit must be connected to a console before it can function.

TECHNICAL SPECIFICATION
Operating frequency:  125KHz

Adjustment Mode: ASK

Card: EM & RFID

Distance: 65mm

Respond Time: <0.1sec

Output format: 26bit Wiegand

Operating Voltage: DC5 to 16V

Current Draw: 20-50mA

Storage temperature: -25celcius to +85celcius

Working temperature: -20celcius to +70 celcius

Working humidity: 20%-90%

Dimension: 76mm*45mm*15mm

TECHNICAL SPECIFICATION for Tag

TECHNICAL SPECIFICATION for RFID Card

Picture 1:  What you see above is what you get, no more no less. Card color should be white, color above is not accurate.

The size is about that of a credit card.  Each card is pre programmed with a unique ID and there is almost zero chance (say one in a billion chance) that two cards have the same ID.

Rated frequency :  125KHz

TECHNICAL SPECIFICATION for RFID dime

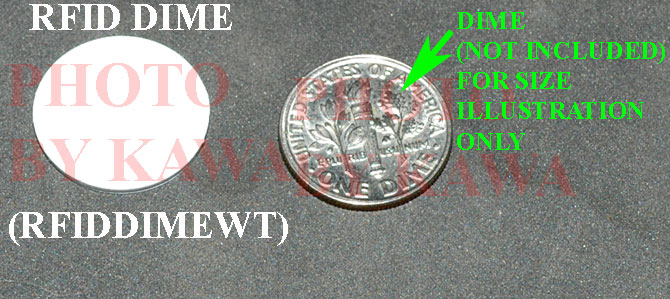

Picture 1:  Color is white.  Please note that the real dime (on the right) is not included in this package.  The real dime in the picture is for size illustration only!

Each "dime" is pre programmed with a unique ID and there is almost zero chance (say one in a billion chance) that two "dimes" have the same ID.

Rated frequency :  125KHz
