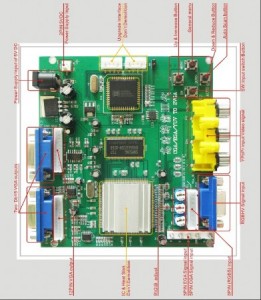

Check out the ebay store, complete with listings for Video Games, Parts, CRT & LCD/TFT Industrial displays, Touchscreen Equipment, PC Parts, Software, Components and much more! This is a fixed price listing for a brand new versatile Video Scan Converter PCB This is the high definition converter GBS-8220. It is a professional video converter for Gaming Systems. It support a wide variety of games (eg Arcade Video Game PCBs) and will convert input signals into output suitable for for VGA CRT monitors, LCD monitors and PDP monitors…… Auto scan CGA/EGA/YUV signal convertsion 2 x VGA outputs , output high resolution signal. FEATURES - Supports CGA/EGA/YUV signal input. - Supports VGA output 640*480,800*600,1024*768,1360*768 - CGA/EGA signal auto scan(15K,24K,31K) - YUV signal auto scan(480i,576i,720i,1080i,480p,576p,720p,1080p) - Chinese and English OSD. - Supports position control & zoom control. - True digital 24-bit A/D converter for true 16.7-million color conversion. - Supports all VGA monitor (CRT?LCD?PDP?PROJECT……) SPECIFICATIONS Power | DC5V 2A +/- 0.5v | P7 or P9 | Input signal | CGA/EGA | 14.5-16.5K 23.5-25.5K 30.5-32.5K | Auto scan | P3 or P11 or P10 | RGBHV | 30.5-32.5K | Auto scan | P10 or P11 | VGA | 30.5-32.5K | Auto scan | P10 or P11 | Ypbpr | 480p,576p,720p,1080p | Auto scan | P2 | Ycbcr | 480i,576i,720i,1080i | Auto scan | P2 | Output signal | VGA | 640*480,800*600 1024*768,1360*768 | P4 and P13 | User control | Input Switch, Image Zoom, Image Position, Output Resolution ,R\G\B gain adjust. | Menu Key R\G\B VR | Dimensions | 115*105*20mm | |
MENU CONTROL “MENU” opens up OSD menu, and enter. “UP” up and increase. “DOWN/AUTO” down and reduce. Press this key for auto scan CGA/EGA signal Press this key for over 5 second and release reset system ** (this operation is invalid when you open OSD menu) - “SW” toggle input signal Ypbpr/RGBS/RGBHV. ** (this operation is invalid when you open OSD menu) “Clamp sp” & “Clamp” Only for use when the monitor has black areas, or picture discoloration. More Functions are available via the OSD Menu Connectors: (Please note that all non-standard connectors and wiring are supplied with this unit) Inputs - RGB/Comp Synch - Via 5 Pin CGA/EGA Connector (Supplied) RGBS - Via 8 Pin Inline Connector (Supplied) YUV Connectors (Phono Style) RGB HV/RGBS via Sub D Connector Power 12VDC - using either 12VDC Jack Connector or 2 Pin Inline Connector (Both Supplied) Outputs - 2 x VGA Out - Sub D VGA Connectors 2 x VGA OUt - Inline Connector Please note that we have a large stock of VGA leads available in the ebay store also If you need any additional info on this then please e-mail for details - International buyers welcome! Please note that this item is in stock for immediate delivery - it will not be shipped from China - there are no hidden charges to pay, and you will receive after sales support, as you do with all of our own products. Payment via normal means including paypal, cheque, bank transfer etc Warranty is 90 day return for replacement - no advance replacements will be sent out |
|
